Description

Description

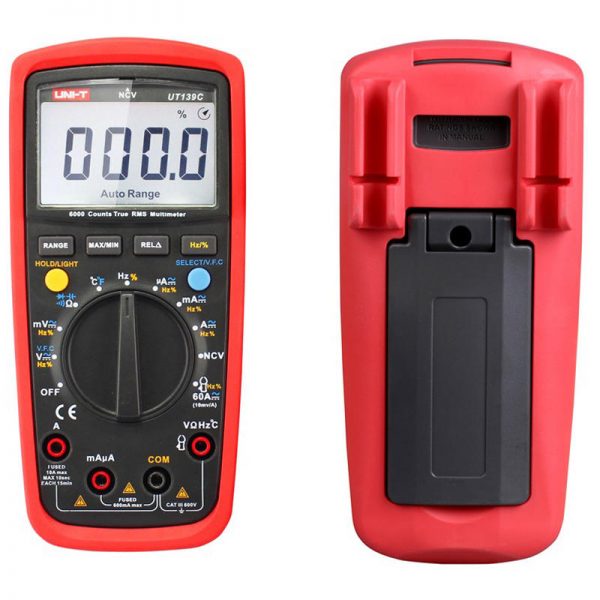

UT139 series are CAT III 600V digital multimeters designed for electricians.UNI-T UT139S True RMS digital multimeter Its NCV feature can effectively check the electrical status through measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) for measuring‘ghost’ voltage. UNI-T UT139S RMS DMM built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. UT139S is built with black EBTN display and it is a perfect meter for working in dark environments.

This meter is easy to use. Small in size. Digital display panel.

Specifications:

Specifications Range UT139S
DC voltage (V) 600V ±(0.5%+2)
AC voltage (V) 600V ±(0.8%+3)
DC current (A) 10A ±(0.7%+2)
AC current (A) 10A ±(1%+3)
Resistance (Ω) 60MΩ ±(0.8%+2)
Capacitance (F) 99.99mF ±(4%+5)
Frequency (Hz) 10Hz~10MHz ±(0.1%+4)
Temperature (°C) -40°C~1000°C ±(1%+4)
Temperature (°F) -40°F~1832°F ±(1.5%+5)
Features
Display count 6000
Auto range/Manual range/True RMS
Bandwidth (Hz) 45Hz~400Hz
NCV/Continuity buzzer
Duty cycle 0.1%~99.9%
Diode Around 3V
LPF/LoZ (ACV)
Analog bar
General Characteristics
Power 1.5V battery (R6) x 2
Display 58mm x 36mm
Product color Red and grey
Product net weight 345g
Product size 170mm x 80mm x 48mm
Standard accessories Batteries, test leads, temperature probe
Standard individual packing Gift box, English manual
Standard quantity per carton 20pcs
Standard carton measurement 450mm x 330mm x 340mm
Standard carton gross weight 12.2kg



Package includes:

1 x UNI-T UT139S True RMS digital multimeter

UT139 series are CAT III 600V digital multimeters designed for electricians.UNI-T UT139S True RMS digital multimeter Its NCV feature can effectively check the electrical status through measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) for measuring‘ghost’ voltage. UNI-T UT139S RMS DMM built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. UT139S is built with black EBTN display and it is a perfect meter for working in dark environments.
