UNI-T UT195E Industrial Waterproof Multimeter is a handheld industrial digital multimeter with IP65 and 2m drop-proof. This UT195E Multimeter can be applied in mines, oilfields and other harsh environments. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution and repair etc. It is exquisitely designed and easy to operate.

Features of Professional UNI-T UT195E Multimeter:

  1. Industrial Waterproof multimeter
  2. An IP65 rating, 2m drop-proof, CAT III 1000V, CAT IV 600V
  3. The large 6000-count LCD screen
  4. Auto LCD backlight controlled by the light sensor (feature can be turned off)
  5. Motor phase sequence measurement with 2 probes
  6. LoZ voltage test, for ghost voltage measurement
  7. 20A current measurement (max 30 seconds)
  8. 31 analogue bar
  9. Flashlight

Specifications of Professional UNI-T UT195E Multimeter:

Specifications Range Best Accuracy
Model   UT195E
DC voltage 600mV ~ 1000V ±(0.5%+3)
AC voltage  600mV ~ 1000V ±(1.0%+3)
LoZ ACV 600.0V ±(2.0%+3)
DC current (A) 600.0μA ~ 20A ±(0.8%+3)
AC current (A) 600.0μA ~ 20A ±(1.0%+3)
Resistance (Ω) 600.0Ω ~ 60.00MΩ ±(0.8%+2)
Capacitance  6.000nF ~ 60.00mF ±(3%+5)
Frequency 60.00Hz ~ 10.00MHz ±(0.1%+4)
Duty ratio 0.1% ~ 99.9% ±(2.0%+5)
Features
Display count 6000
Display interface (HTN) Single display
Measurement sampling rate  times/s 3
Analog bar sampling rate  times/s 10
Analog bar  31 bars
True RMS
AC voltage frequency response 45 ~ 400Hz
AC current frequency response 45 ~ 400Hz
Diode/Continuity test 3.5V
Auto/Manual range
Auto power off
Continuity buzzer
Low battery indication
Data hold
MAX/MIN
Function selection
Flashlight
Auto backlight
Operating temperature 0 °C ~40 °C
2m drop test
Safety rating IP65
General Characteristics
Power supply 9V battery (6F22/6LR61)
LCD size 66mm×51mm
Device color Red and grey
Device weight 450g
Device size 206.5mm×95.5mm×61mm
Standard accessories Test probes, battery, carrying bag
Standard individual packing Gift box, blister, English manual (German, French, Spanish optional)
Standard quantity per carton 10pcs
Standard carton size 605mm×335mm×405mm
Standard carton gross weight 11.8kg

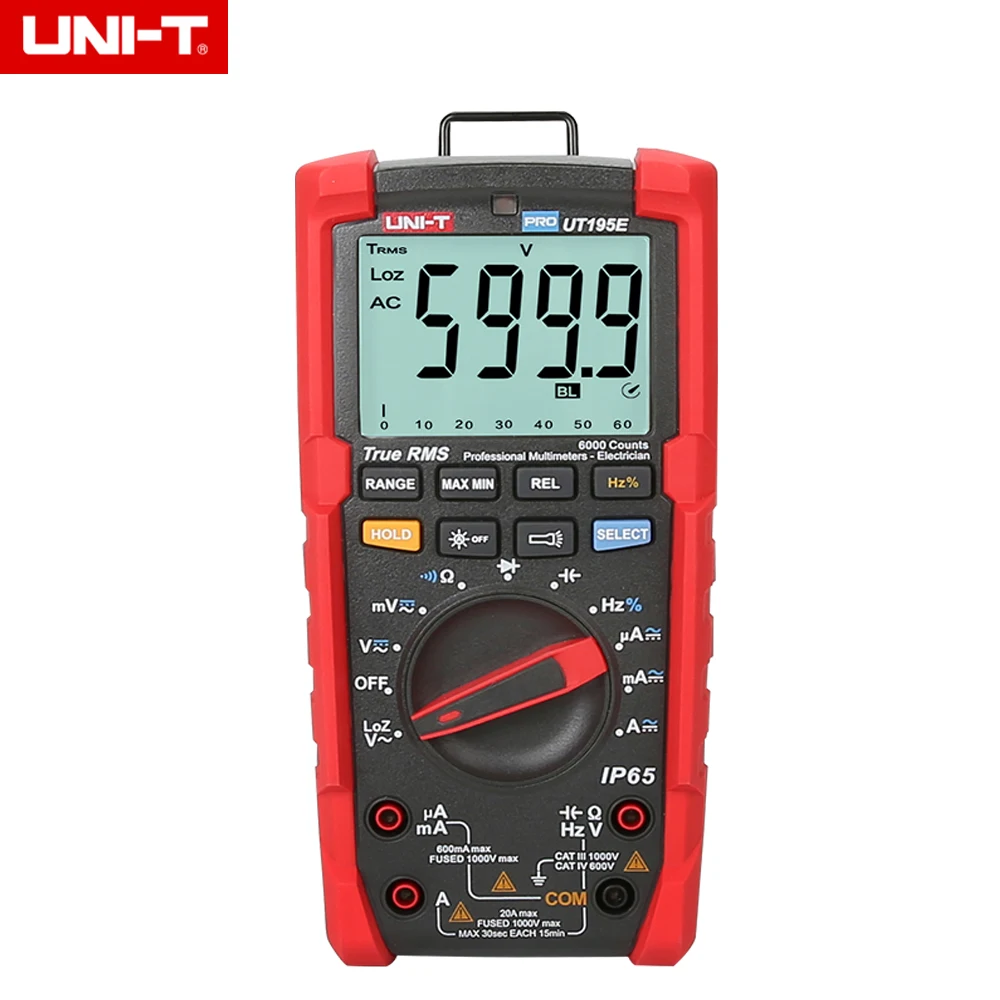

Image result for UNI-T UT195E Multimeter

UT195E 3

UT195E 2

UNI-T UT195E Industrial Waterproof Multimeter



UNI-T UT195E Industrial Waterproof Multimeter

Package includes

1 x UNI-T UT195E Industrial Waterproof Multimeter
