Features:
- Module Properties: non-isolated step-up module (BOOST)
- Input voltage :10-32V
- Output voltage: 12-35V (adjustable)
- Output Current: 10A (MAX)
- Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)
- Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
- Easy to drive 65W/90W dual-core notebook.
- Use a 12V battery drive 19V, 3.42A notebook, the module temperature about 45°c
- Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
- Output Ripple: 2% (MAX) 20M-bandwidth
- Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
- Full load temperature rise: 45°c
- No-load current: 25mA typical
- Voltage regulation: ± 0.5%
- Dynamic response speed: 5% 200uS
- Short circuit protection: None (Please Install fuses and protection circuits at Input port)
- Input Reverse Polarity Protection: None (Please Series diode at the input port)
Some Applications:
- DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V (adjustable freely), However, the output voltage can not be less than the input voltage.
- Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.
- Boost charger. You can use the 12V power supply to charge battery more than 12V, for example, 24V battery
Package included:

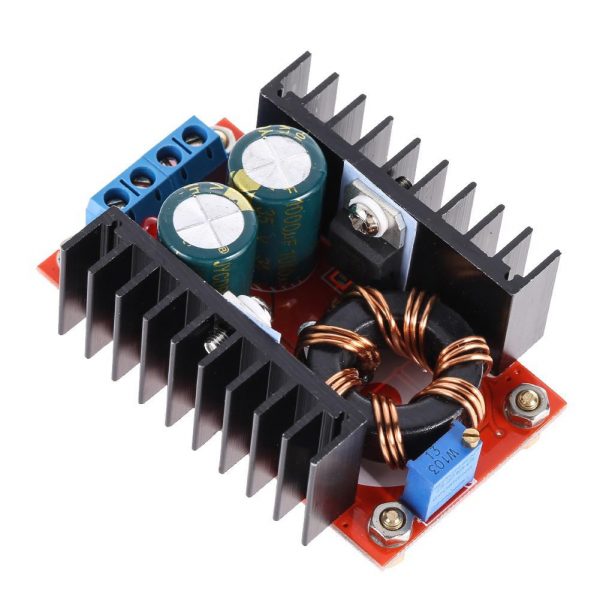

1 x 150W DC-DC Boost Converter 10-32V to 12-35V 6A Step-Up Adjustable Power Supply
