Description:

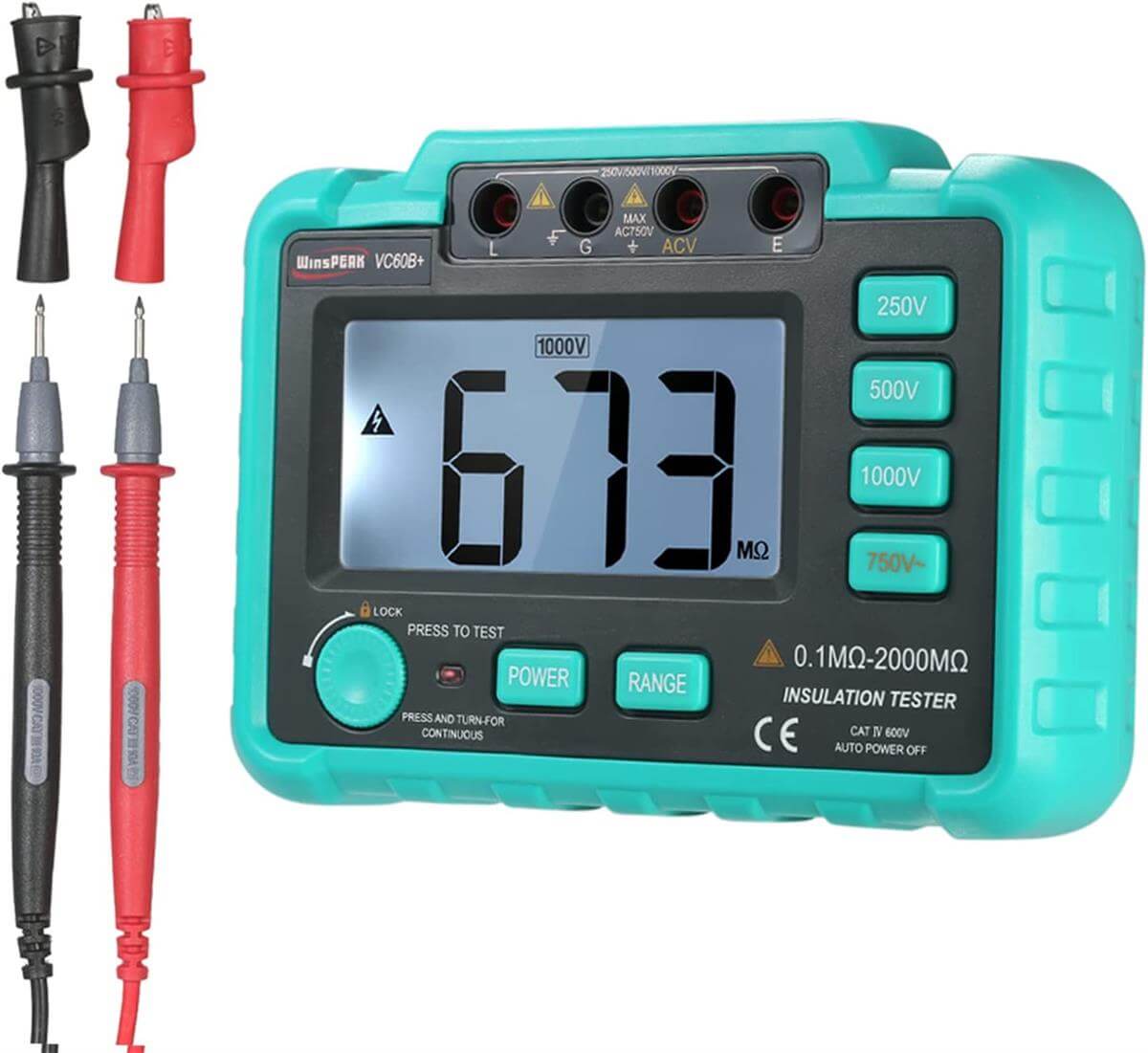

The VC60B+ is a digital insulation resistance tester, also known as a megohmmeter or megger, and it can test at voltages up to 1000V. Moreover, electricians widely use it to check the insulation resistance of electrical equipment, cables, and motors. In addition, this tester helps ensure safe and reliable operation by identifying potential insulation failures before they cause damage.
Key features:
-
- Multiple test voltages: Offers DC test voltages of 250V, 500V, and 1000V for different applications.
- Wide measuring range: Can measure insulation resistance up to 2000MΩ.
- Additional functions: Includes measurement capabilities for AC voltage (up to 750V) and DC voltage (up to 1000V), as well as a continuity test.
- Clear display: Features a large, backlit LCD screen with a maximum display of 1999, making readings easy to see.
- Safety and protection: Includes built-in overload protection, anti-high voltage circuit design, and an alarm system for high voltage and short circuits.
- Convenient for use: Functions include a data hold feature, auto power-off to save battery life, and a test lock for easier operation.
Technical specifications :
-
- Insulation resistance range (1000V): 0.1MΩ to 2000MΩ.
- Insulation resistance accuracy (1000V):
±plus or minus
±
(4% reading + 2 digits).
- AC voltage: 0–750V, with an accuracy of
±plus or minus
±
(1% reading + 6 digits).
- DC voltage: 0–1000V, with an accuracy of
±plus or minus
±
(0.5% reading + 6 digits).
- Power source: 6 x 1.5V AA batteries or an external DC 9V power source.
- Display: 1999-count LCD with backlight.
- Special functions: Data hold, auto power-off, low battery indication.
Common applications :
The VC 60B+ is a versatile tool used for various electrical insulation tests, such as:
- Testing the insulation resistance of motors
- Verifying the integrity of electrical cables
- Checking the insulation of electrical equipment and appliances
- Performing telecommunication and electrical facility checks
