Description

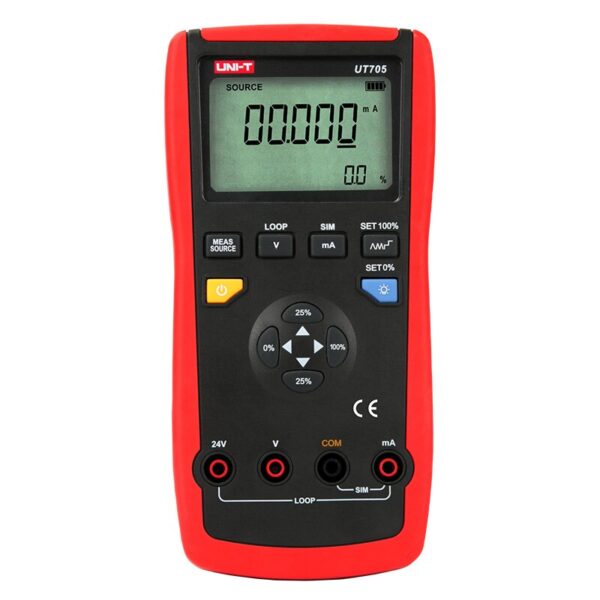

UT705 Single Function Loop Calibrator is a high-performance device for loop calibration and maintenance. Designed with high-accuracy DC current and transmitter analog current outputs, UT705 has DC voltage/current and loop current measurement functions with button settings, selectable steps and ramp outputs to help user work more efficiently and accurately. It features LCD backlight, auto power off and 1m drop proof.

Features of UT705 Single Function Loop Calibrator:

  1. Measures: DC voltage, DC current, 4-20mA loop current
  2. Output functions: DC current, analog transmitter, 24V loop
  3. Up to 0.02% accuracy current measurement at the same time
  4.  Automatic ramp for DC current output
  5.  Manual stepping and automatic stepping and  ramping output
  6. Stores and recalls setups

Specifications

Range

Accuracy

Measure accuracy
DC voltage (V) 30.000V ±(0.02+2)
DC current (A) 24.000mA ±(0.02+2)
Loop current 24.000mA ±(0.02+2)
Source accuracy
DC current (source) 24.000mA ±(0.02+2)
DC current (simulate) 24.000mA ±(0.02+2)
Features
Loop power function Voltage: 24V
Accuracy: 10%
Ramp functions Source functions: Voltage, resistance, temperature
Ramps: Slow ramp, fast ramp, 25% step-ramp
Step functions Source functions: Voltage, resistance, temperature
Steps: 25% of range, 100% of range

General Characterisitics

Power 9V battery (6F22)
Display 63mm x 40mm
Product color Red and grey
Product net weight 410g
Product size 96mm x 193mm x 47mm
Standard accessories Test leads, battery
Standard individual packing Gift box, English manual, cloth bag
Standard quantity per carton 5pcs
Standard carton measurement 325mm x 225mm x 285mm
Standard carton gross weight 4.5kg



Package Includes:

  • 1 x UT705 Single Function Loop Calibrator
