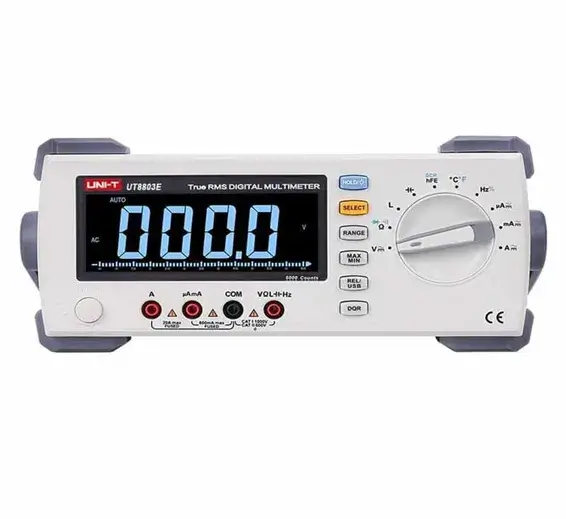

UNI-T UT8803E Benchtop Digital Multimeter

Description:
UNI-T UT8803E Benchtop Digital Multimeter for AC/DC current and voltage, resistance, capacitance, frequency, duty cycle, inductance. This UT 8803E digital multimeter measures temperature measurements and diode, transistor and continuity tests, SCR thyristor test. Having a large EBTN LCD display and a USB interface. UNI T best benchtop multimeter features overload protection for all ranges and special appearance design. It is an ideal tool for electricians, production QA, maintenance, research, and education.

Features Of UNI-T UT8803E Benchtop Digital Multimeter:

• True RMS (UT8803E)
• Diode/transistor
• SCR thyristor test (UT8803E)
• Inductance measurement
• USB interface
• EBTN LCD screen
• Data hold
• MAX/MIN
• Continuity buzzer

Specifications Of Digital Multimeter UT-8803E Benchtop Style:

1. Model: UT8803E
2. DC voltage (V): 1000V
3. AC voltage (V): 750V
4. DC current (A): 20A
5. AC current (A): 20A
6. Resistance (Ω): 60MΩ
7. Capacitance (F): 6mF
8. Frequency (Hz): 600Hz~20MHz
9. Duty cycle (%): 5%~95%
10. Inductance (H): 100H
11. Temperature (°C/°F): -40℃~1000℃, -40℉~1832℉
12. Display count: 6000
13. Interface: USB Device
14. Range: Auto
15. True RMS/diode: √
16. Frequency response (Hz): Up to 100kHz
17. SCR test: 9V, can measure unidirectional and bidirectional SCR (UT8803E)
18. Continuity buzzer/data hold: √
19. MAX/MIN √
20. USB interface/LCD backlight: √
21. Input impedance for DCV: 600mV range: around 3GΩ; all other ranges: around 10MΩ
22. AC+DC measurement: √
23. Power: 100V/120V/220V/240V ±10%, 47Hz~63Hz
24. Display: EBTN LCD
25. Product net weight: 3.09kg
26. Product size: 265mm x 110mm x 320mm

Package Includes:

• 1 xUSB interface cable
• 1 x Power cord
• 1 x Simple test lead with alligator clips
• 1 x Standard test leads
• 1 x PC software CD
• 1 x Point contact temperature probe (UT8803E)
