Description

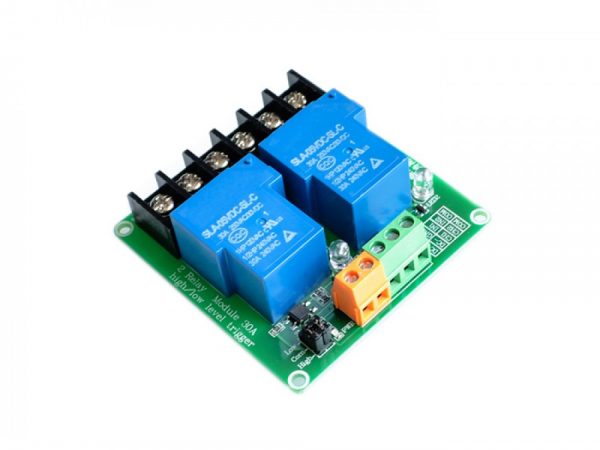

Two 30A 2-channel relay module

Two 30A 2-channel relay module with optocoupler isolation 5V compatible with trigger High and Low trigger for smart home, PLC automation control

Features:

  1. Using FR-4PCB double-sided board
  2. With high power relay, controls the load up to 30 A
  3. With each optocoupler insulation, anti-interference capability
  4. 9500 black terminals, more convenient for high current wiring
  5. Each circuit has a relay in the LED indication
  6. The modules comply with international safety standards with insulation slots in the control and load areas

Applications of Two 30A 2-channel relay module:

PLC automation equipment control, Industrial Systems control, internet of things control, smart home control, DEVELOPMENT EXPERIENCE of electronic hobbyists, all kinds of circuit modification

Specifications:

  • Supply voltage: 5V
  • Standby Current: 5mA
  • Maximum operating current: 190mA / 80mA / 50mA
  • Shooting mode: low trigger, high trigger
  • Charging voltage: DC 30V or AC 250V
  • Charging current: 30A
  • Relay life: more than 100,000 times

Voltage Rate:

  • 5V low trigger module: 0-2VDC relay on (on), 3-5 VDC relay off (off)
  • 12V low trigger module: 0-5 VDC relay on (on), 6-12 VDC relay off (off)
  • 24V low trip module: 0-12VDC relay on, 13-24VDC relay off.
  • 05V high trip module, 3.3-5VDC relay (on), 0-2.5vdc relay off (off)
  • 12V trigger module: 6-12 VDC relay (on), 0-5 VDC relay off (off)
  • 24V high trip module: 12-24 Vdc relay (on), 0-8.5vdc relay off (off)

Package Includes:

1 x Two 30A 2-channel relay modules with 5V optocoupler isolation

Using FR-4PCB double-sided board

With high power relay, controls the load up to 30 A

With each optocoupler insulation, anti-interference capability

9500 black terminals, more convenient for high current wiring

Each circuit has a relay in the LED indication

The modules comply with international safety standards with insulation slots in the control and load areas





Additional information

Weight 0.1 kg
