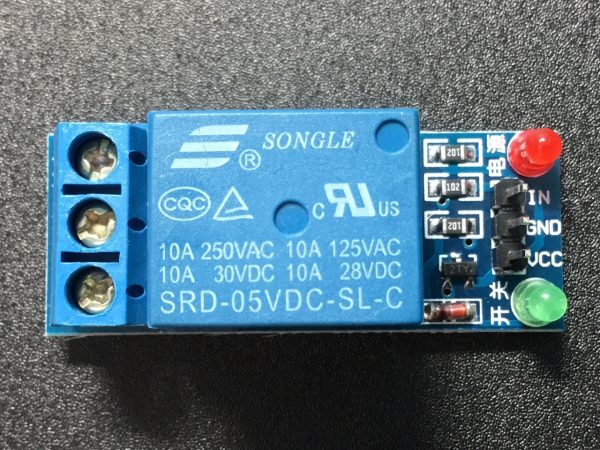

5V 1 Channel Relay Module

This is 1 Channel 5V 10A Relay Module for Arduino PIC AVR DSP ARM. A wide range of microcontrollers such as Arduino, AVR, PIC, ARM and so on can control it.
Each one needs 15mA – 20mA driver current and Equipped with high current relay: DC 30V / 10A, AC 250V / 10A
Standard interface that can be compatible with microcontroller

Note: On the high level and low level-triggered mode, friends who do not understand, have a look High-level trigger refers to the signal voltage between input and trigger, can be understood as a signal input with VCC cathode short-circuit activated a way;

Low-level trigger refers to the signal voltage between input terminal and Earth OV trigger, can be understood as signal input terminal and the GND negative electrode short circuit triggered away 1-channel relay module connection

Specification and Features  of 5V 1 Channel Relay Module:

  1. Dimensions: 44 x 18 x 18(LxWxH) mm
  2. This module ‘s Weight: 18 gm.
  3. 1 channel relay board
  4. Operating Voltage of this module is 5V
  5. Max Current of this module is 20mA
  6. Relay Contact Current Size at AC250V: 10A
  7. Relay Contact Current Capacity at DC30: 10A
  8. This module has one normally closed contact and one normally open contact
  9. Triode drive, increasing relay coil
  10. It has High resistance controller pin
  11. This Module Pull-down circuit for avoidance of malfunction
  12. It has power supply indicator lamp
  13. It controls indicator lamp
  14. Indicator for Relay output status
  15. It can Be controlled various appliances & other Equipment With Large current.
  16. Standard TTL Level logic controlled (AVR, Arduino, 8051, PIC, ARM)
  17. The module is compliant with international safety standards, control and load areas isolation trenches.
  18. It has with 4 fixed screw holes, hole diameter 3.1mm, suitable installation, and fixation.

Package includes:

1x 5V 1 Channel Relay Module
