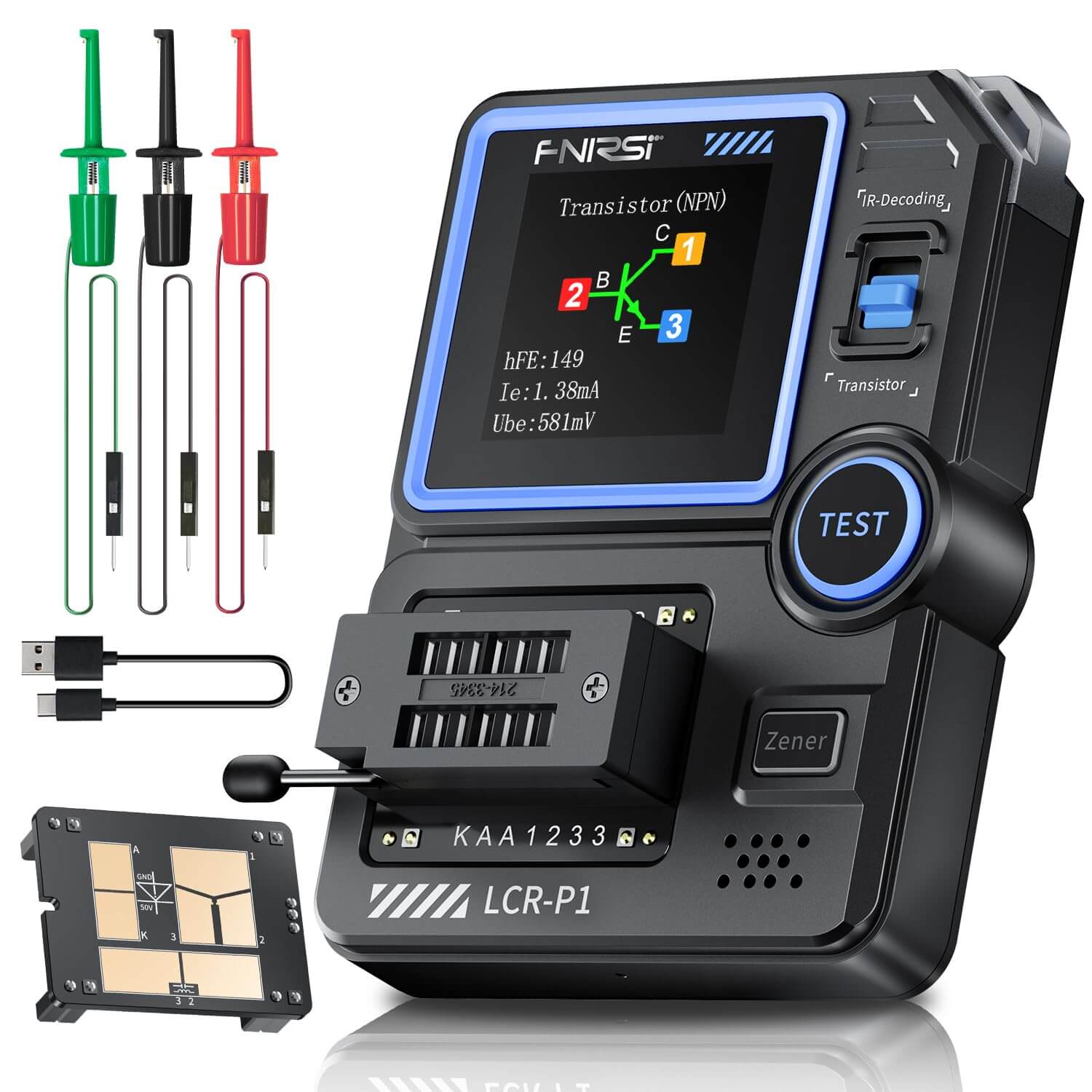

LCR-P1 Transistor Tester LCR Meter MOSFET NPN PNP SMD Multifunction Tester Diode Triode Capacimeter Resistance

• Versatile Tester: FNIRSI LCR-P1 measures transistors, capacitors, resistors, inductors, diodes, MOSFETs, and batteries.
• User-Friendly Design: Features a replaceable patch seat, 1.44-inch color screen, 300mAh battery, and Type-C charging/data port.
• Anti-Burn Protection: Automatically discharges undischarged capacitors to prevent accidental damage.
• Infrared Analysis: Supports NEC infrared protocol analysis for remote control debugging and maintenance.
• Smart Identification: Automatically detects component pins, parameters, and specifications for faster work efficiency.

Brand FNIRSI

Model LCR-P1

Dimensions 13×8.5×4.5mm

Power Supply Battery

Display Type Digital Only

Transistor range 10 < B < 600

Capacitance Range 25pF-100mF

Inductance range 10μh-1000μh

Resistance Range 0.01Ω-50MΩ

Diode Forward voltage < 4.5V

Voltage Regulator Diode 0.01-4.5V / 0.01-32V

Field-Effect Transistor JFET / IGBT / MOSFET

Bidirectional Thyristor Turn-on voltage < 5V, Gate trigger current < 6mA

IR Decoding NEC protocol IR code

Display 1.44” Color Screen

Power Supply 300mAh lithium battery

Operating Temperature 0~40℃

Charging USB Type-C, 5V/1A

Anti-burn protection supported

Data Export supported

Firmware upgrade supported
