Description:
Compact and Efficient Power Switching Solution

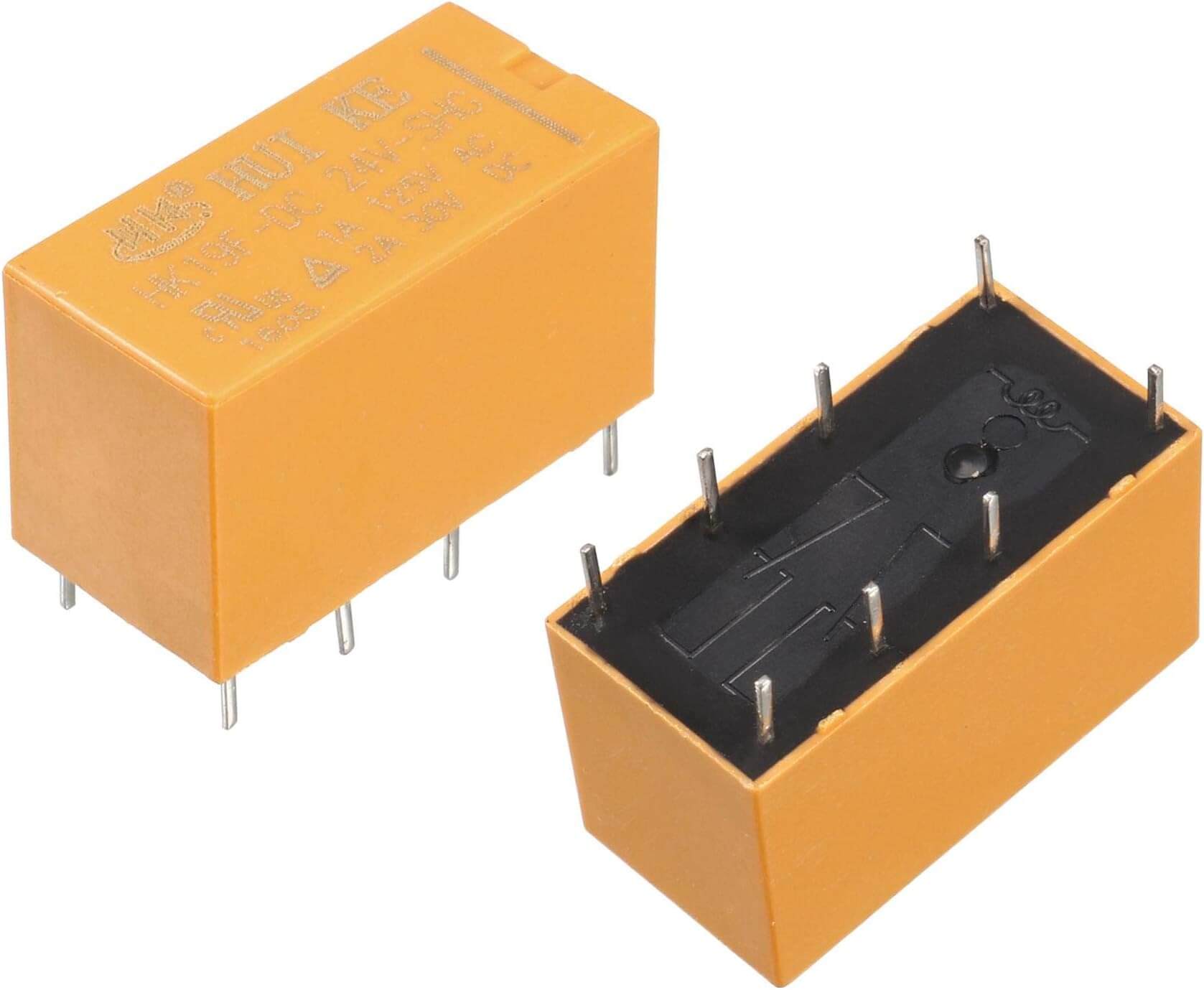

The DPDT PCB Power Relay DC 12V with 8 Pins, model HK19F-8P-12V, is a mini yet powerful relay designed for compact electronics and precise control systems. With double pole double throw (DPDT) configuration, it enables dual-channel switching for versatile applications including automation, control panels, and electronic projects.
Reliable Performance in Miniature Size
This mini power relay operates on a 12V DC signal and fits perfectly into standard PCB layouts. Despite its small size, it handles considerable current loads efficiently, making it suitable for both low-power and industrial-grade operations.
Ideal for PCB Projects and Prototyping
Its plug-and-play nature, along with an 8-pin layout, ensures quick integration into printed circuit boards. Whether you’re building a robotics system or a smart appliance, the HK19F-8P-12V relay offers a compact and reliable switching mechanism.
Applications
- First, use it in home automation systems to control lights, fans, and more with ease.
- Then, apply it to industrial control panels for reliable and efficient automation.
- Next, integrate it with Arduino and Raspberry Pi projects to add smart features quickly.
- After that, set it up in smart security systems for enhanced monitoring and safety.
- Finally, use it in timers, alarms, and PLCs to automate tasks with precision.
Related Products
Frequently Asked Questions (FAQs)
Q1: What is the maximum current rating of this relay?
A1: The DPDT PCB Power Relay HK19F-8P-12V typically handles up to 1A at 125VAC or 2A at 30VDC.
Q2: Can this relay be used with Arduino?
A2: Yes, it’s perfect for use with Arduino and other microcontrollers. A relay driver circuit or module is recommended.
Q3: What is the pin configuration?
A3: It features an 8-pin layout compatible with standard PCB sockets, supporting DPDT functionality.
Q4: Is the relay normally open or normally closed?
A4: This DPDT relay has both normally open (NO) and normally closed (NC) contacts.
Package Includes
- 1 x DPDT PCB Power Relay DC 12V 8 Pins Mini Relay HK19F-8P-12V
Reviews
There are no reviews yet.
