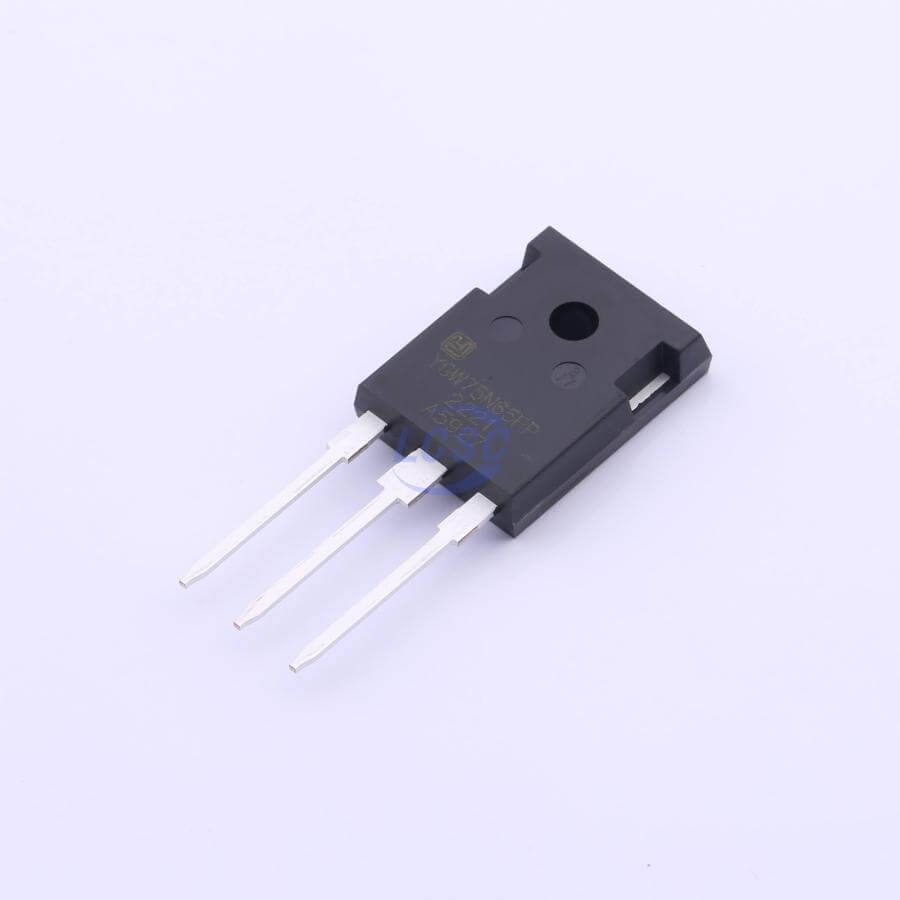

Ygw75n65fp IGBT Power Semiconductor

After that, benefit from its low saturation voltage that cuts down conduction losses. Also, count on its great switching speed to reduce power waste during switching. Finally, choose it for inverters, UPS systems, induction heating, welding, and industrial motor drives to boost your efficiency

Key Features

• First, enjoy a high voltage rating of 650V for reliable power handling.
• Next, rely on a strong 75A continuous current for steady performance.
• Then, take advantage of fast switching to boost system speed and save energy.
• After that, stay safe with the TO-247 isolated package for better heat control.
• Also, reduce power loss using its low VCE(sat) and high efficiency.
• Finally, use it confidently in UPS, inverters, motor drives, and welding tools.

Technical Specifications

• Collector-Emitter Voltage (V_CE): 650V
• Collector Current (I_C): 75A
• Gate-Emitter Voltage: ±20V max
• Package: TO-247 Fully Isolated
• Switching Speed: Fast (optimized for hard-switching)

Related product

• 9N90 MOSFET High Voltage N-Channel Power Transistor
• Irf740 n Channel Power Mosfet
• 52n15 MOSFET – High-Performance N-Channel Power MOSFET

Learn More

• Insulated-gate transistor
• Insulated Gate Transistor or IGBT
• A Complete Guide to IGBTs

Frequently Asked Questions (FAQs)

Q1: What is the maximum voltage and current for the YGW75N65FP?

A: It supports up to 650V and a continuous collector current of 75A.

Q2: Is this IGBT suitable for inverter circuits?

A: Yes, it’s ideal for inverter applications, UPS systems, and motor control.

Q3: What package type does it come in?

A: It comes in a TO-247 fully isolated case for better heat dissipation.

Q4: Can it be used in welding machines?

A: Absolutely! Its high current and voltage tolerance makes it perfect for welding and industrial applications.

Package Includes

• 1 × YGW75N65FP IGBT Power Transistor (TO-247 Package)
