Description:
UTP3300C series are high performance programmable linear DC power supplies with single channel output and process control. They can meet diversified measurement needs with pure signal output, competitive specifications and a variety of interfaces
Applications:
Electronics design, battery charging, electrical vehicle, research labs and education sectors.
Features:
1. High precision 4-bit voltage and current display2. Over votlage and current protection
3. Over temperature protection
4. One click data recall (up to 5 groups); Optional LAN interface
5. Power-off memory; Software calibration; Keyboard lock
Technical Specification:
| Specifications | ||

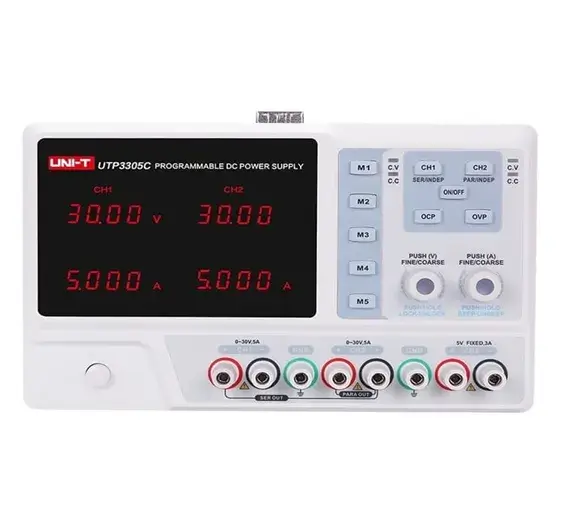

| Model | UTP3305C | |
| Output voltage | 0~30V (CH1/CH2) | |
| Output current | 0~5A (CH1/CH2) | |
| Output power | 315W | |
| Load regulation | Voltage | <0.01%+5mV |
| Current | <0.1%+10mA | |
| Line regulation | Voltage | <0.01%+3mV |
| Current | <0.1%+3mA | |
| Resolution | Voltage | 10mV |
| Current | 1mA | |
| Accuracy (25℃±5℃) | Voltage | <0.5%+20mV |
| Current | <0.5%+10mA | |
| Ripple (20Hz~20MHz) | Voltage | ≤2mVrms |
| Current | ≤3mArms | |
| Output temperature coefficient |
Voltage | ≤150ppm |
| Current | ≤150ppm | |
| Voltage rise delay | ≤100ms (10% rated load) | |
| Parallel/Series load regulation | ≤0.1%+0.1V | |
| CH3 output features | Voltage | 5V |
| Current | 3A | |
| Voltage accuracy | ±50mV | |
| Load regulation | ±50mV | |
| Interfaces | USB Device, RS-232 | |
| General Characteristics | ||
| Power | AC 100V/120V/220V/230V±10%, 50Hz/60Hz | |
| Display | 4 windows, LED | |
| Product net weight | 9.1kg | |
| Product size | 260mm x 176mm x 317mm | |
| Standard accessories | USB and RS-232 interface cables, output cables | |
| Standard individual packing | Carton box | |
