Description:

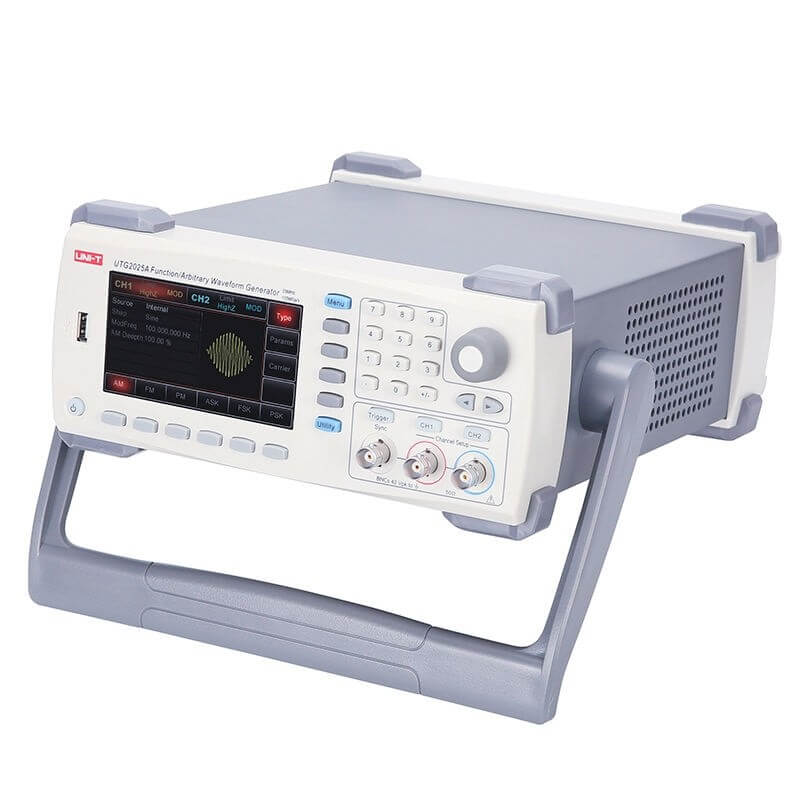

UTG2025A has 25MHz maximum output rate, 125 MS/s sampling rate, and 14-bit vertical resolution. It has equivalent dual channel independent output, modulation, sweep frequency, Burst, and other complex waveform generation functions.
Applications:
Designing, testing, troubleshooting, and repairing of electronic and electroacoustic devices, such as circuit and equipment testing in cellular and wireless systems, broadcasting, television and radio systems; semiconductor component testing etc.
Features:
1. 1μHz full-band resolution2. 5MHz~30MHz pulse waveform, adjustable rise/fall time
3. 14-bit/16-bit vertical resolution
4. Two equivalent-performance channels
5. Max arbitrary waveform length of 8k/16M points; 48/161
6. non-volatile waveforms storage
Technical specification:
| Specifications | UTG2025A |
| Max frequency | 25MHz |
| Channels | 2 |
| Sampling rate | 125MS/s |
| Waveforms | Sine, square, ramp, pulse, noise, DC, arbitrary; UTG2000B only: harmonic |
| Working modes | Output on/off, continuous, modulation, sweep, burst |
| Modulations | AM, FM, PM, ASK, FSK, PSK, PWM; UTG2000B only: BPSK, QPSK, OSK, DSB-AM, SUM, QAM |
| Arbitrary Waveform | |
| Length | 8pts~8kpts |
| Vertical resolution | 14 bits |
| Frequency Characteristics | |
| Sine | 1μHz~25MHz |
| Square | 1μHz~5MHz |
| Pulse | 1μHz~5MHz |
| Ramp | 1μHz~400kHz |
| Arbitrary | 1μHz~5MHz |
| Noise | 25MHz (-3dB) |
| Resolution | 1μHz |
| Accuracy | ±0.5ppm 25℃ |
| First year aging rate: 1ppm | |
| Temperature coefficient: ±0.5ppm/℃ | |
| Temperature Coeifficient | ＜2ppm/℃ |
| Interfaces | USB Host, USB Device, frequency counter |
| General Characteristics | |
| Power | 100V~240V ACrms, 50Hz/60Hz |
| Display | 4.3-inch TFT LCD, WVGA (480 x 272) |
| Product color | White and grey |
| Product net weight | 3.2kg |
| Product size | 265mm x 110mm x 320mm |
| Standard accessories | BNC-BNC cable, BNC cable with alligator clips,power cord, USB interface cable |
| Standard individual packing | Carton box |
Package:
1 x UTG2025A UNI T Function Generator 25MHz
