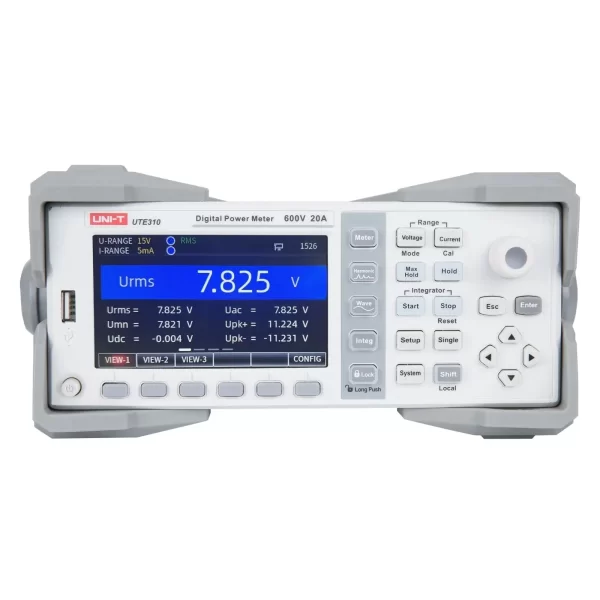

UTE310 1MHz High-Performance Digital Power Meter

Name: UTE310 1MHz High-Performance Digital Power Meter
Brand: Electronics Hub
SKU: 16095
Availability: InStock
Rating: 5 (1 reviews)

Uncategorized

Description:
UTE310 is a high-accuracy and high-performance digital power meter with a 4.3” TFT-LCD and a display resolution 480*272.

Top Specification for UTE310:

The device has a 4.3” TFT-LCD display with a resolution of 480*272.
It offers an RMS measurement range from 25μA to 20A for current and from 75mV to 600V for voltage.
Its highest resolution is 1mV for voltage, 0.1uA for current, and 0.001mW for power.
Basic accuracy for voltage, current, and power is rated at 0.1%.
The measurement bandwidth spans from DC to 300kHz, with a sampling rate of 1MHz.
Rich communication interfaces include USB, RS-232, and LAN, with GP-IB being optional.
It supports both Modbus and SCPI communication protocols.
Additional features include display wave function, 50th harmonic measurement, rich math operations, D/A output for measurement recording, comparator function, current sensor input, USB data storage, and USB program upgrade.

Reviews

There are no reviews yet.

Be the first to review “UTE310 1MHz High-Performance Digital Power Meter”

Product description

Product Rating

Additional Information

Description: UTE310 is a high-accuracy and high-performance digital power meter with a 4.3” TFT-LCD and a display resolution 480*272.

Top Specification for UTE310:

The device has a 4.3” TFT-LCD display with a resolution of 480*272.
It offers an RMS measurement range from 25μA to 20A for current and from 75mV to 600V for voltage.
Its highest resolution is 1mV for voltage, 0.1uA for current, and 0.001mW for power.
Basic accuracy for voltage, current, and power is rated at 0.1%.
The measurement bandwidth spans from DC to 300kHz, with a sampling rate of 1MHz.
Rich communication interfaces include USB, RS-232, and LAN, with GP-IB being optional.
It supports both Modbus and SCPI communication protocols.
Additional features include display wave function, 50th harmonic measurement, rich math operations, D/A output for measurement recording, comparator function, current sensor input, USB data storage, and USB program upgrade.

Description
Reviews (0)

Description:
UTE310 is a high-accuracy and high-performance digital power meter with a 4.3” TFT-LCD and a display resolution 480*272.

Top Specification for UTE310:

The device has a 4.3” TFT-LCD display with a resolution of 480*272.
It offers an RMS measurement range from 25μA to 20A for current and from 75mV to 600V for voltage.
Its highest resolution is 1mV for voltage, 0.1uA for current, and 0.001mW for power.
Basic accuracy for voltage, current, and power is rated at 0.1%.
The measurement bandwidth spans from DC to 300kHz, with a sampling rate of 1MHz.
Rich communication interfaces include USB, RS-232, and LAN, with GP-IB being optional.
It supports both Modbus and SCPI communication protocols.
Additional features include display wave function, 50th harmonic measurement, rich math operations, D/A output for measurement recording, comparator function, current sensor input, USB data storage, and USB program upgrade.
