Description

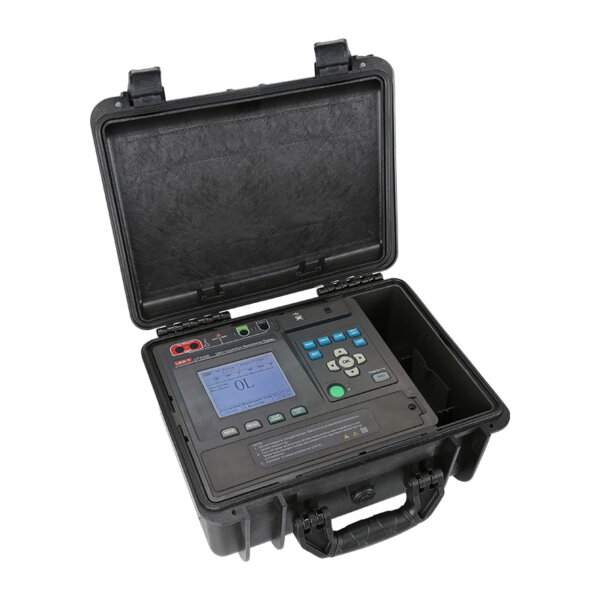

The UT516B is a digital high voltage insulation resistance tester with 6 ranges: 500V, 1000V, 2500V, 5000V, 10000V and 12000V. Fine adjustment of voltage with 10% step at each range (except 12000V) is available. Test data can be saved in the tester memory and transferred to a PC via the dedicated USB cable, or be transferred to a PC in real time. The tester, with high performance and easy operation, is widely used in the measurement and maintenance of power equipment and power supply circuits.
Features of UT516B Insulation Resistance Tester
● AC/DC voltage
● USB data transfer
● Low battery indication
● Data storage
● LCD backlight
● Polarization Index
● Over-range alarm
● 9999 Max display
● Comparative measurement
● Measurement time selection
Specifications of UT516B Insulation Resistance Tester
| Specifications | Range | UT516B | |
| Insulation Resistance Measurement | 500V | 0.50MΩ~4.99G | ±(5%+5) |
| 5.00G-49.9GΩ | ±(10%+10) | ||
| 50.0GΩ-500GΩ | for reference only | ||
| 1000V | 1.00MΩ-9.99GΩ | ±(5%+5) | |
| 10.0G-99.9GΩ | ±(15%+10) | ||
| 100GΩ-1000GΩ | for reference only | ||
| 2500V | 2.50MΩ-24.9GΩ | ±(5%+5) | |
| 25.0G-249GΩ | ±(15%+10) | ||
| 250GΩ-2.5TΩ | for reference only | ||
| 5000V | 5.00MΩ-49.9GΩ | ±(5%+5) | |
| 50G-499GΩ | ±(15%+20) | ||
| 500GΩ-5.0TΩ | for reference only | ||
| 10000V | 10.0MΩ-99.9GΩ | ±(10%+10) | |
| 100G-999GΩ | ±(20%+20) | ||
| 1000GΩ-10TΩ | for reference only | ||
| 12000V | 12.0MΩ-99.9GΩ | ±(10%+10) | |
| 100G-999GΩ | ±(20%+20) | ||
| 1000GΩ-10TΩ | for reference only | ||
| Output voltage | 500V | 0~+10% | |
| 1000V | 0~+10% | ||
| 2500V | 0~+10% | ||
| 5000V | 0~+10% | ||
| 10000V | -5~+10% | ||
| 12000V | -5~+10% | ||
| Load current | 500V (R=500KΩ) 1mA | 0%—+20% | |
| 1000V (R=1MΩ) 1mA | 0%—+20% | ||
| 2500V (R=2.5MΩ) 1mA | 0%—+20% | ||
| 5000V (R=5MΩ) 1mA | 0%—+20% | ||
| 10000V (R=10MΩ) 0.15~1.2mA | 0%—+20% | ||
| 12000V (R=12MΩ) 0.15~1.2mA | 0%—+20% | ||
| DC voltage measurement | 30V~1000V | ±(3%+5) | |
| AC voltage measurement | 30V~750V (50~60Hz) | ±(3%+5) | |
| Features | |||
| PC software for data analysis | √ | ||
| Backlight Function | √ | ||
| Date storage | 999 sets of date | √ | |
| Dielectric Absorption Ratio (DAR) | 0.00~999 | √ | |
| Polarization Index (PI) | 0.00~999 | √ | |
| General Characteristics | |||
| Power | 1.5V alkaline batteries (LR14) X 10, power adapter | ||
| Product color | Red and grey | ||
| Product net weight | 6.6kg | ||
| Product size | 410*342*204mm | ||
| Standard accessories | User manual, Test leads (red/black/green 1 each), USB cable, power adaptor, 1.5V alkaline batteries, | ||
| Standard individual packing | Gift box, tool box | ||
| Standard quantity per carton | 1pc | ||
| Standard carton measurement | 510*320*420mm | ||
| Standard carton gross weight | 10.2kg | ||
