Features of UT205A+/UT206A+ 1000A Digital Clamp Meter
● 1000A AC current measurement
● 1000V AC/DC voltage measurement
● 600A inrush current measurement (UT206A+)
● Temperature (UT206A+)
● NCV (UT206A+)
● ACV frequency 10Hz～10kHz
● Jaw opening: 45mm
● Resistance / capacitance / frequency measurement
● Auto range / backlight / low battery indication
● Continuity / diode / duty cycle
● MAX/MIN
● Data hold / flashlight / relative mode
● Auto power off
● CAT II 1000V/CAT III 600V

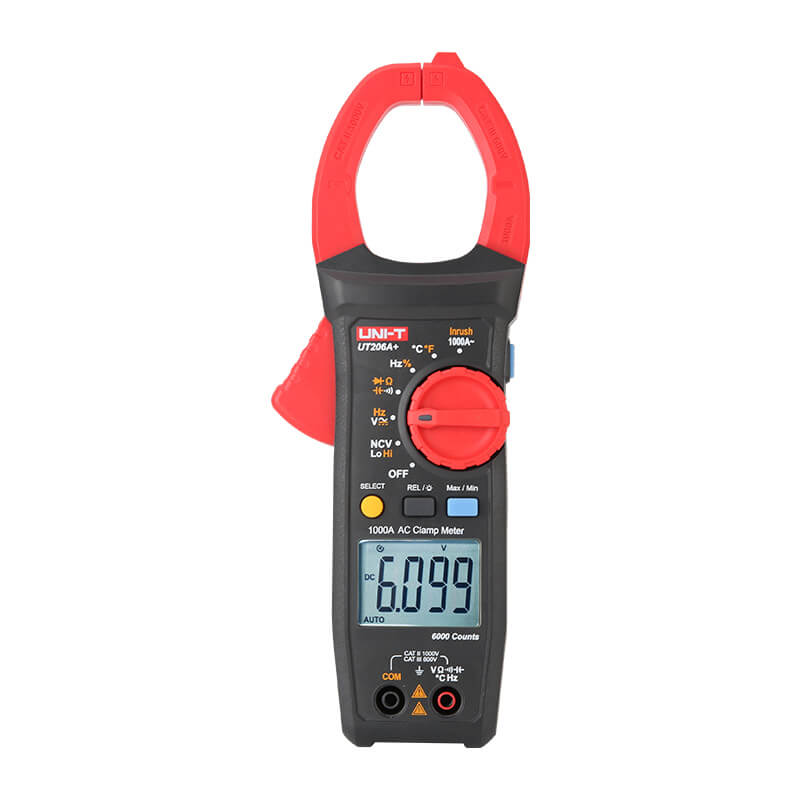

UT206A+ 1000A Digital Clamp Meter
Specifications
| Function | Range | Accuracy |
|---|---|---|
| AC Current (A) | 1000 A | ±(1.5% + 5) |
| Inrush Current (A) | 600 A | ±(5% + 10) |
| AC Voltage (V) | 1000 V | ±(1.0% + 2) |
| AC Voltage Frequency (Hz) | 10 Hz ~ 10 kHz | ±(1.0% + 5) |
| DC Voltage (V) | 1000 V | ±(0.7% + 3) |
| Resistance (Ω) | 60 MΩ | ±(0.8% + 2) |
| Capacitance (F) | 60 mF | ±(4% + 5) |
| Frequency (Hz) | 10.00 Hz ~ 10.00 MHz | ±(0.1% + 4) |
| Temperature (°C) | –40 °C ~ 1000 °C | ±4 °C |
| Temperature (°F) | –40 °F ~ 1832 °F | ±5 °F |
Features
-
Display Count: 6099
-
Jaw Opening: 45 mm
-
Auto Range
-
Duty Cycle Measurement
-
NCV (Non-Contact Voltage Detection)
-
Diode Test
-
Continuity Buzzer
-
Low Battery Indication: < 2.5 V approx.
-
Data Hold
-
Auto Power Off: ~15 minutes
-
Max/Min Recording
-
Built-in Flashlight
-
Backlight Display
-
Safety Rating: CAT II 1000V / CAT III 600V
General Characteristics
-
Power Supply: 2 × 1.5V AAA batteries
-
Standard Accessories: Test leads, batteries, temperature probe, English manual
-
Color: Red + Gray
-
Net Weight: 235 g (including batteries)
-
Dimensions: 242 × 76.5 × 52 mm
-
Packing: Gift box with carrying bag
-
Quantity per Carton: 20 pcs
-
Carton Size: 420 × 290 × 280 mm
