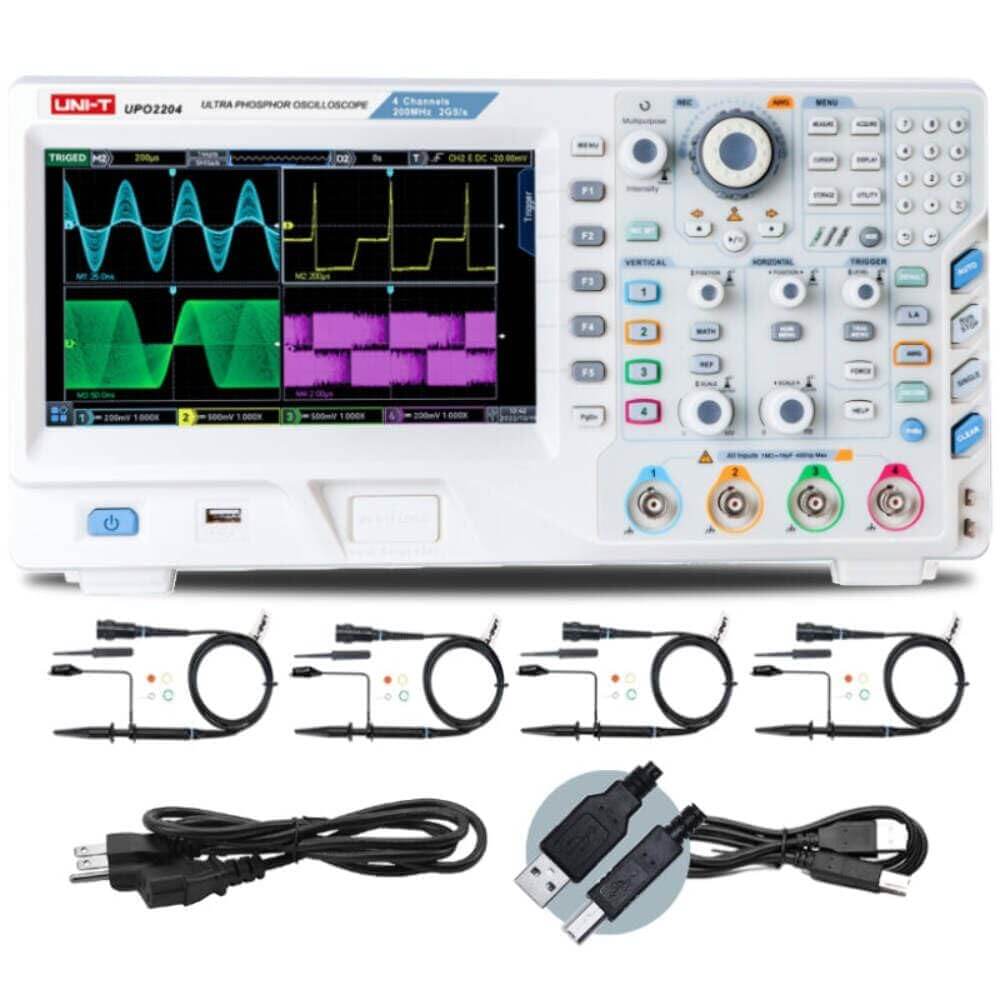

UNI-T UPO2204 digital phosphor oscilloscope 4 Channel, 200MHz
UPO2000 series digital phosphor oscilloscope is a multifunctional and high-performance oscilloscope based on UNI-T’s original Ultra Phosphor technology. It realizes the combination of ease of use, excellent technical indicators and many functional features. It can help users complete the measurement work faster. It is an oscilloscope designed for general design / debugging / testing needs in many fields, such as communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R & D / education, etc. Fast Acquire technology can accurately capture abnormal events such as video, jitter, noise and low wave signals.
- Waveform capture rate up to 1,000,000 wfms/s
- Support Bode Plot loop test and analysis function
- Hardware real-time waveform uninterrupted recording and analysis up to 120,000 frames
- Waveform operation functions (+, -, ×, ÷, digital filtering, logic operation and advanced operation)
- 4M points enhanced FFT, supporting frequency setting, waterfall diagram, detection setting and mark measurement, etc.
- Auto measurement of 36 waveform parameters
- Multi-Scopes supports multi-channel independent trigger and fluorescent display
- DVM supports multi-channel independent AC / DC true RMS measurement
- Rich trigger functions: edge, pulse, video, slope, runt, over amplitude pulse, delay, timeout, duration, setup/hold, Nth edge and pattern trigger
- Area trigger function, which can be used to capture accidental signals and observe complex signals
- Protocol trigger and decoding function (optional)：RS232, I2C, SPI, CAN, CAN-FD, LIN, FlexRay
- Ultra Phosphor super fluorescent display effect, up to 256 levels of gray display
- 8-inch 800×480 capacitive touch, supporting various gesture operations: click, slide, zoom, edit, drag, etc.
- Rich interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out、Pass/Fail), AWG, VGA
- Support SCPI programmable instrument standard commands
- Support web access and control
- Bandwidth 200MHz
- Channels 4
- Real- Time Sample Rate: 2 GSa/s
- MAX. Memory Depth 56 Mpts
Technical Specifications:
- MODEL UPO2204
- BANDWIDTH 200MHz
- ANALOG CHANNELS 4
- REAL-TIME SAMPLE RATE 2GSa/s
- MAX. MEMORY DEPTH 56Mpts
- WAVEFORM CAPTURE RATE 1,000,000wfms/s
Uses:
Designed for general design / debugging / testing needs in many fields, such as communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R & D / education, etc
