Description:

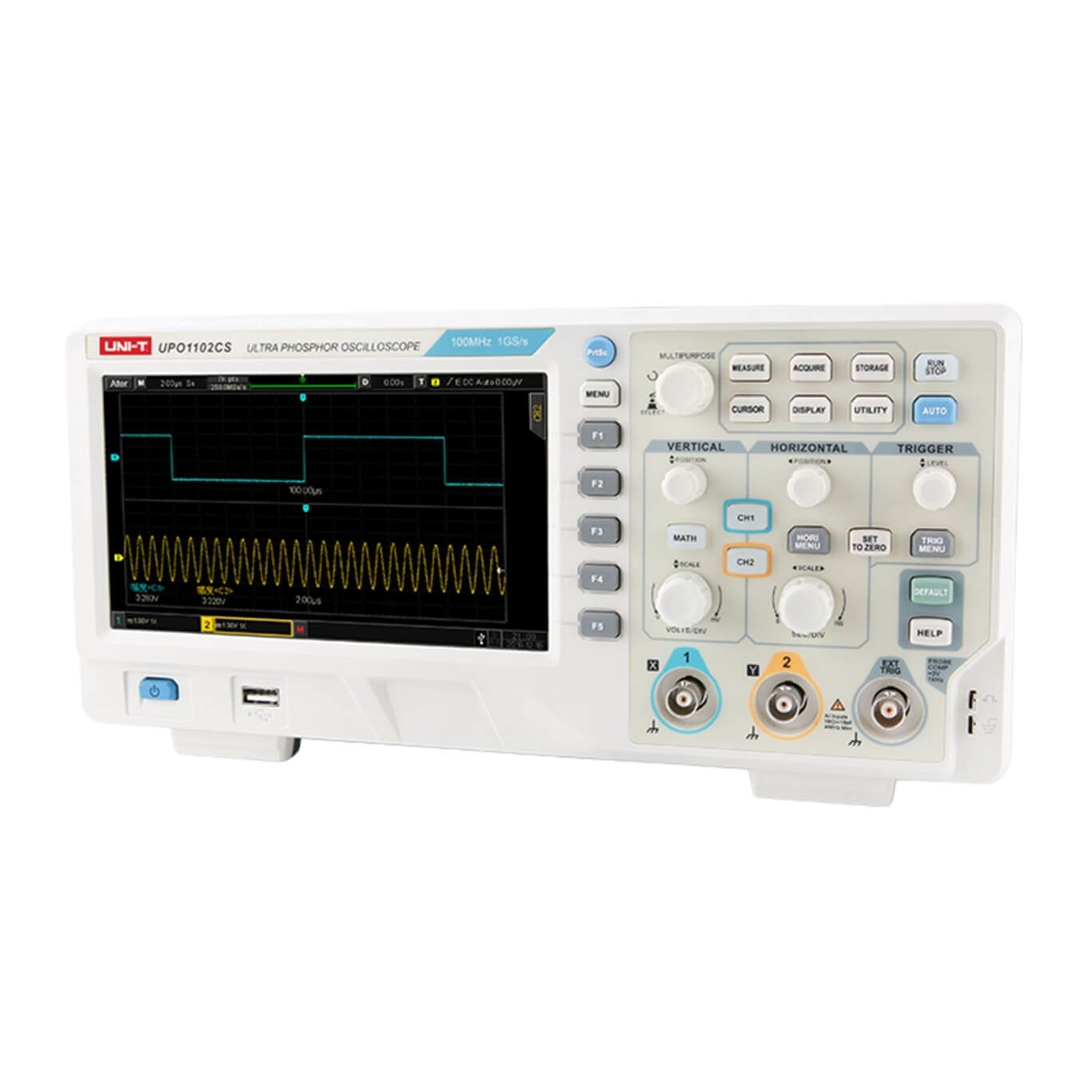

The UNI-T UPO1102CS is a multi-function, digital phosphorus oscilloscope with 2 channels, a bandwidth of 100 MHz and a maximum sample rate of 1 GSa/s. This phosphor oscilloscope can present three-dimensional waveform data of amplitude, time and signal intensity. This oscilloscope is fast with a waveform capture rate of 500.000 wfm/s and with a maximum memory depth of 56 Mpts. The oscilloscope comes with serial decoding capabilities, which is a good feature for a oscilloscope of this price range, as these are often only offered with more expensive oscilloscopes.
With the multi-scope of the UPO1102CS, signals with different clock sources can be individually set up and this is convenient to analyse the waveform parameters. The UNI-T UPO1102CS has a 1 Mpts FFT that works as a spectrum analyser with functions such as frequency range, detection mode and spectrum marking. The oscilloscope has a built-in webserver, with which the oscilloscope can be connected and remotely controlled via the web page of UNI-T.
Specifications:
| Feature | Specification |
|---|---|
| Model Number | UPO1102CS |
| Scope Type | DSO |
| Bandwidth | 100MHz |
| Channels | 2 Analog |
| Real-Time Sample Rate | 1GSa/S |
| Rise Time | ≤1.8ns |
| Memory Depth | 56Mpts |
| capture rate | 500,000wfms/s |
| Waveform Record | 100,000wfms/s |
| Input impedance | （1MΩ± 2%）||（16 pF± 3 pF） |
| Logic Pod Included | No |
| Waveform Generator | No |
| Display | 7-inch TFT |
| Touchscreen | No |
| Warranty | 3 years |
| Shipping Dimensions (L x W x H) | 16 in x 9 in x 11 in |
| Shipping Weight | 3.0 kg |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |
| Included Accessories | Power cord, USB2.0 printing cable, Passive probe 100MHz * 2(UT-P04) |
