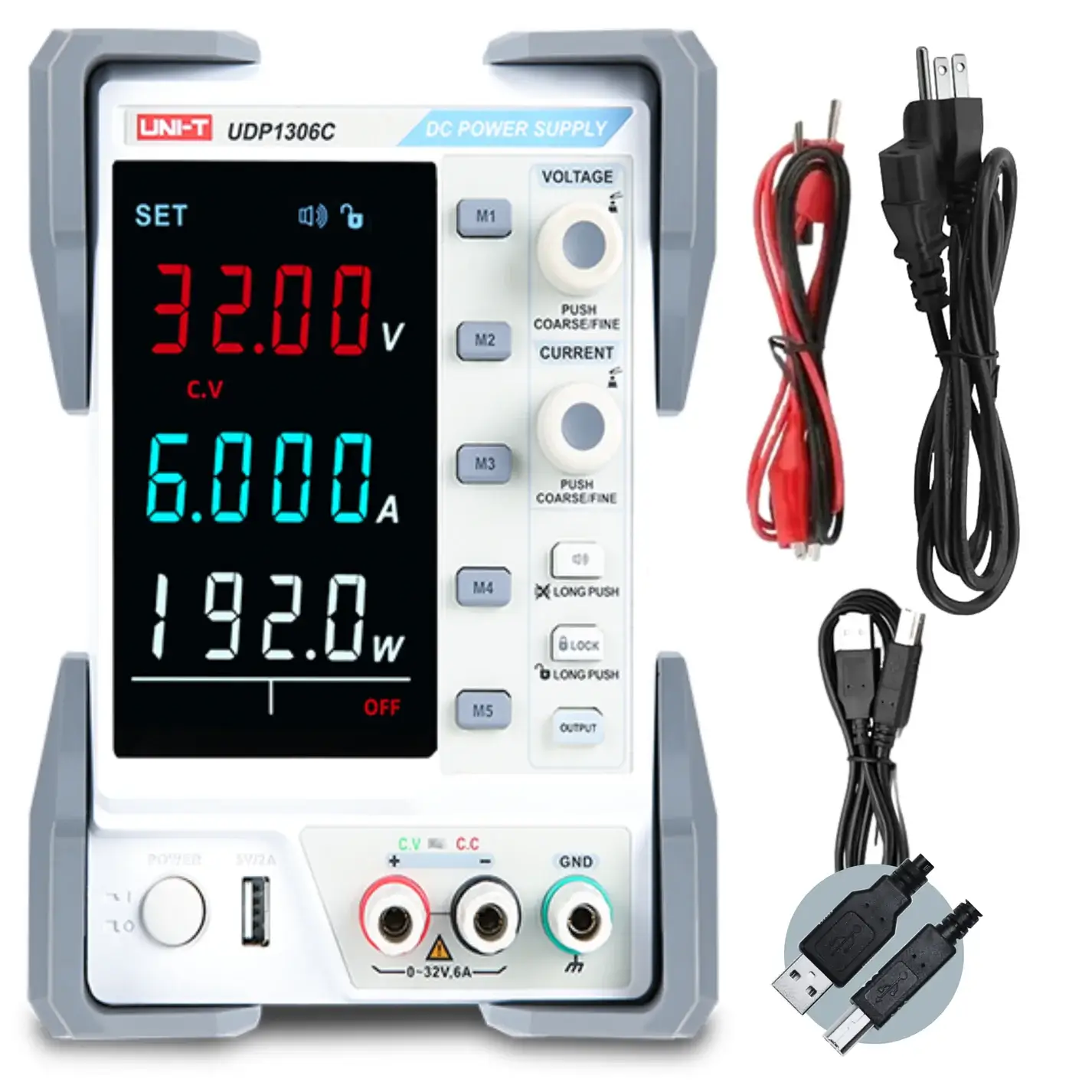

UDP1306C Industrial Linear DC Power Supply

Description: The UDP1306C DC power supply has two groups of independent outputs: the adjustable output of 32V/6A, which has the constant voltage (CV) and constant current (CC) modes, and the fixedoutput of 5V/2A with protection features of short circuit and overvoltage. ● 4-digit high precision display ● OVP OCP OTP protection ● Output setting viewable ● Remote control (output ON/OFF) ● Shutdown memory/keypad lock ● Intelligent cooling fan ● USB charging interface ● RS232 program-controlled communication ● USB device communication ● 5 sets of data storage Specifications of UDP1306: Model UDP1306C Output voltage (CH1/CH2) 0~32V Output current (CH1/CH2) 0~6A Output power 192W Display mode 3-window, 4-digit voltage and current high precision display Resolution Voltage 10mV Current 1mA Load regulation Voltage <0.01%+5mV Current <0.1%+10mA Power regulation Voltage <0.01%+3mV Current <0.1%+3mA Setting accuracy(25℃±5℃) Voltage <0.5%+20mV Current <0.5%+10mA Ripple and noise(20Hz~20MHz) Voltage ≤2mVrms Current ≤3mArms Temperature coefficient Current/Voltage: ≤300ppm/℃ Voltage rising/falling time delay ≤100ms (10% rated load) Interfaces USB Host (5V/2A), USB Device, RS-232 General Characteristics Power AC 100V/120V/220V/230V±10%, 50Hz/60Hz Product net weight 7.5kg Product size 136mm x 194mm x 327mm Standard accessories USB communication cable, output cables, Power cord Standard individual packing Carton box Standard quantity per carton 1pcs Standard carton measurement 505mm x 270mm x 335mm Standard carton gross weight 9.6kg
