Description:
The TOOLTOP ET2202 is an intelligent battery tester for 12V and 24V automotive lead-acid batteries. This handheld device features a 3.2-inch color LCD screen and measures battery health by analyzing its voltage, internal resistance, and discharge current.
Key features:
- Comprehensive testing: Measures the battery’s overall health, cranking performance (starts-test), and the vehicle’s charging system (load test).
- Continuous testing: Uses a low-frequency signal to test the battery without damaging it from a large load discharge.
- Wide compatibility: Can test a variety of battery types, including standard (STD), AGM, GEL, EFB, EN, IEC, CCA, and SAE, and has a Cold Cranking Amps (CCA) range of 100–1999.
- Temperature detection: The ET2202 model includes an innovative temperature probe to measure engine and air conditioning temperatures.
- Automatic voltage identification: Automatically detects and selects the correct voltage for both 12V and 24V batteries.
- Safety features: Includes protection against overvoltage, reverse polarity, and poor test clip contact.
- Power source: The tester is powered by the battery it is testing, so it does not require internal batteries.
How to use the ET2202:

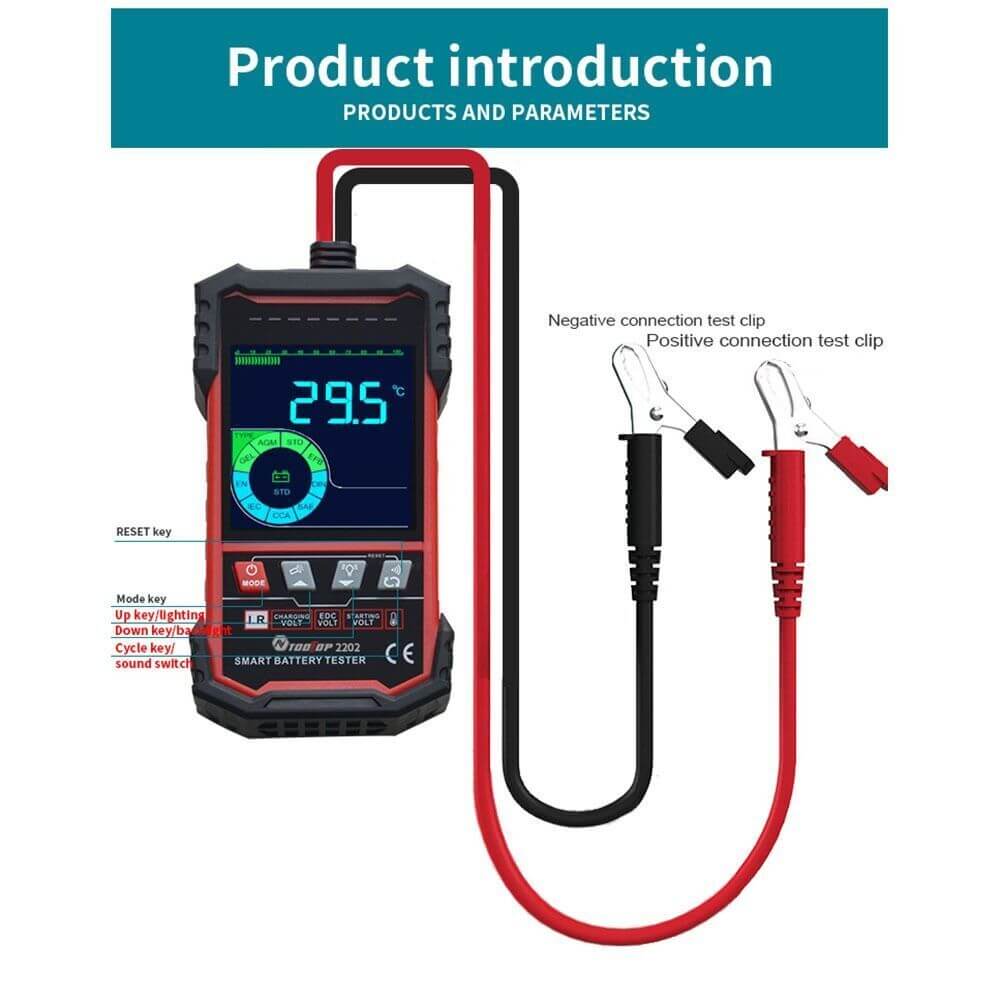

- Connect the clamps: Attach the red clamp to the positive (+) battery terminal and the black clamp to the negative (-) terminal. The device will automatically power on.
- Navigate the menu: Use the buttons on the device to navigate the menu on the 3.2-inch color screen.
- Select battery type: Choose the battery standard that matches the battery you are testing (e.g., STD, AGM, GEL, EFB).
- Perform tests: Follow the on-screen prompts to perform the different types of tests.
- Battery Test: Displays voltage, internal resistance, discharge current, and a lifespan analysis.
- Cranking Test: Checks the battery’s discharge performance when starting the vehicle.
- Load Test: Assesses the generator’s performance while the engine is running.
- Temperature Test: (ET2202 only) Requires connecting the included temperature probe.
- Interpret the results: The screen will display the test results, including an analog bar graph showing the battery’s overall lifespan.
- Disconnect: When testing is complete, remove the clamps from the battery terminals.
