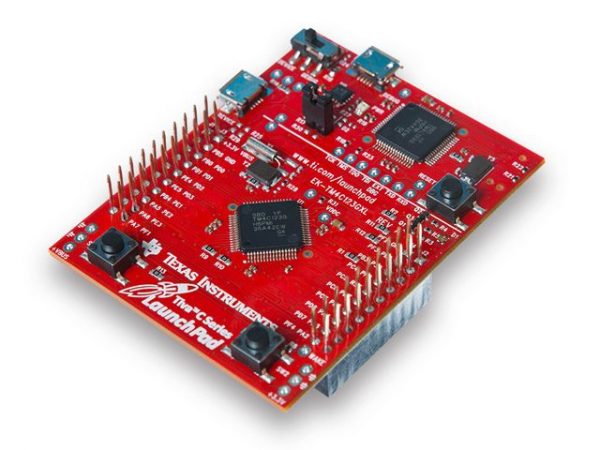

TM4C123GXL TM4C123G LaunchPad Evaluation board

This TM4C123GXL TM4C123G LaunchPad Evaluation board in Pakistan is a low-cost evaluation board from Texas Instruments.TM4C123G Tiva C Series Launch Pad highlights the TM4C123GH6PM microcontroller with a USB 2.0 device boundary and hibernation module.

This board also features programmable user buttons and an RGB LED for tradition applications. The stackable headers of the Tiva C Series make it easy and simple to expand the functionality of the Tiva C Series Launch Pad when interfacing to other peripherals with well-matched BoosterPacks.

The Tiva C Series LaunchPad provides an easy and inexpensive way to develop applications.

Original Product Link http://www.ti.com/tool/EK-TM4C123GXL

The Tiva C Series TM4C123G LaunchPad evaluation board offers these features:

  1. Tiva C Series TM4C123GH6 microcontroller
  2. USB Micro-AB connector: Device mode default configuration, Host/OTG modes supportable
  3. RGB user LED
  4. Two user switches (application/wake)
  5. Available I/O brought out to headers on a 0.1″ grid
  6. Onboard In-Circuit Debug Interface (ICDI)
  7. Switch-selectable power sources: ICDI, USB device
  8. Reset switch
  9. Preloaded RGB quick start application
  10. Supported by TivaWare™ for C Series software, including the USB Library and the Peripheral Driver Library
  11. Tiva C Series TM4C123G LaunchPad BoosterPack XL interface—features stackable headers to increase the capabilities of the 40-pin Tiva C Series Launch Pad evaluation platform

The EK-TM4C123GXL works with TivaWare for C Series, as well as several different software toolchains, including:

  1. Keil
  2. Sourcery CodeBench
  3. IAR Tools
  4. CodeComposer Studio

Click here to download the Tiva C Series LaunchPad software.

Get ICDI drivers here.

The Tiva C Series TM4C123G LaunchPad Evaluation Kit includes the following items:

  1. Tiva C Series Launch Pad Evaluation board
  2. USB Micro-B plug to USB-A plug cable
  3. ReadMe First quick-start guide
