Description:

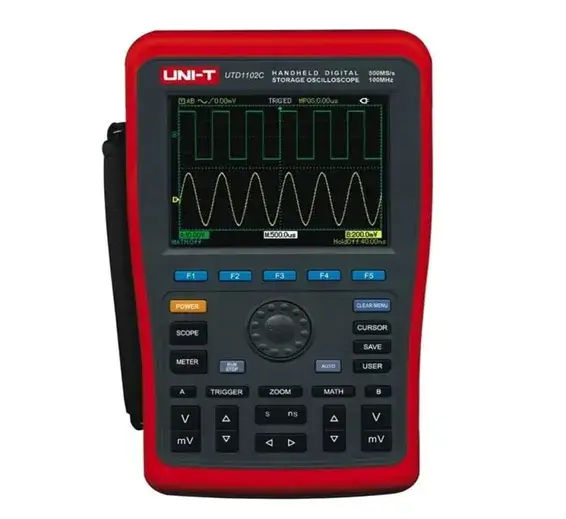

UNI-T UTD1102C handheld digital oscilloscope is a dual-channel oscilloscope with 100 MHz bandwidth, 500 MS/s sample rate, and 2 × 512 K memory length. There is a USB host for external devices connection. UNI-T UTD1102C digital oscilloscope also performs multimeter functions measuring AC/DC voltage and current, resistance, capacity, and performing diode and continuity checks.
Features:
- Dual-channel bandwidth 100 MHz
- Sampling rate 500 MS/s
- The equivalent sampling rate is 25 GS/s
- 5 mathematic functions: adding, subtraction, multiplying, division, FFT
- Multimeter functions
- DC voltage and current
- AC voltage and current
- Resistance
- Capacitance
- Continuity buzzer
- Diode check
- Internal memory 2 × 512 k
- Two switchable probes
- Trend diagram
- 5.7” color LCD screen
- Built-in USB host
Specifications:
- Bandwidth 100 MHz
- Rise time ≤ 3.5 ns
- Real-time sampling rate 500 MS/s
- Equivalent sampling range 25 GS/s
- Vertical sensitivity 5 mV ~ 50 V/div
- Record length (max) 2 × 512 k
- Scan time base 5 ns ~ 50 s/div
- Trigger type Edge, Pulse, Video and Alternate
- Automatic waveform measurements 27
- Frequency counter 6 digits frequency counter
- Maths functions Add, Subtract, Multiply, Divide, FFT
- Multimeter
- DC voltage 600 mV / 6 V / 60 V / 600 V / 1000 V: ±(1% + 5 digits)
- AC voltage
- (45 Hz ~ 400 Hz) 600 mV / 6 V / 60 V / 600 V / 700 V:
- ± (1.2% + 5 digits), frequency: <200 Hz
- ± (1.5% + 5 digits), frequency: ≥200 Hz
- DC current 6 mA / 60 mA / 600 mA: ±(1.2% + 5 digits)
- 6 A: ±(1.5% + 5 digits)
- AC current
- (45 Hz ~ 400 Hz) 6 mA / 60 mA / 600 mA: ±(2% + 5 digits)
- 6 A: ±(2.5% + 5 digits)
- Resistance 600 Ω / 6 MΩ / 60 MΩ : ±(1.5% + 5 digits)
- 6 kΩ / 60 kΩ / 600 kΩ : ±(1.2% + 5 digits)
- Capacitance 6 nF / 6 mF: ±(5% + 10 digits)
- 60 nF / 600 nF / 6 μF / 60 μF / 600 μF: ±(4% + 5 digits)
- General characteristics
- Max.display 5999
- LCD size 5.7″
- Ports USB host
- Power 100 – 240 V, 50/60 Hz, 1.5 A
- Dimensions 268 × 168 × 60 mm
- Weight 1.8 kg
Package Includes:
- 1 x Handheld Digital Oscilloscope UNI-T UTD1102C
