Description:

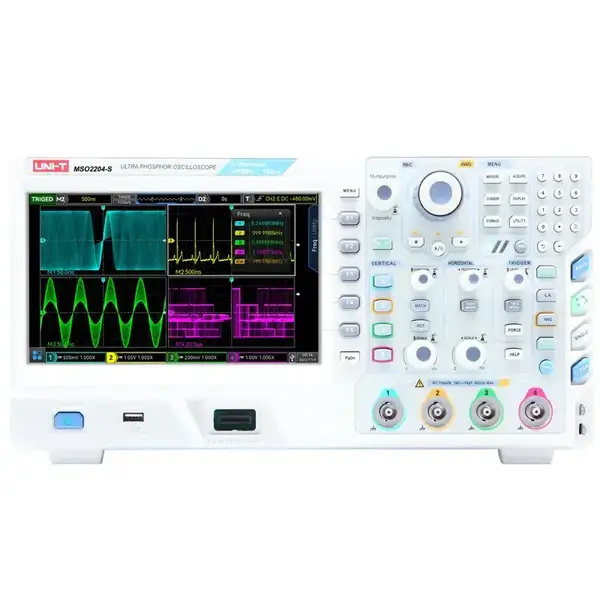

The UNI-T MSO2204-S is a multi-function digital phosphorus oscilloscope, with 4 analog channels and 16 digital, a bandwidth of 200 MHz and a maximum sample rate of 2 GSa/s in the analog and 1 GSa/s in the digital channels. It presents three-dimensional waveform data of amplitude, time and signal intensity. This data can then be manipulated by the touchscreen, allowing a variety of gesture operations such as click, slide, zoom, edit and drag.
Features a logic analyser, which can be used for parallel bus, protocol decoding and timing measurement. Furthermore, it has a built in function / arbitrary waveform generator, capable of dual channel 50 MHz output. The activation software required for this feature is included with the product.
With a maximum waveform capture rate of 1.000.000 wfm/s and with a maximum memory depth of 56 Mpts per channel, this oscilloscope is considered fast and highly accurate in capturing abnormal waveforms.
This product has a 4 Mpts FFT (allowing measurement of the frequency domain spectrum of the incoming signals), supporting frequency settings, waterfall diagrams, area triggers, detection settings and mark measurements. The multiscopes technology allows for a split screen waveform display.
The oscilloscope has a built-in webserver, with which the oscilloscope can be accessed and remotely controlled via internet, through both PC and mobile phone interfaces.
Specifications:
| Feature | Specification |
|---|---|
| Model Number | MSO2204 |
| Scope Type | MSO |
| Bandwidth | 200MHz |
| Channels | 4 Analog + 16 Digital |
| Real-Time Sample Rate | 2GSa/S |
| Rise Time | ≤1.8ns |
| Memory Depth | 56Mpts |
| Waveform capture rate | 1,00,000wfms/s |
| Input impedance(analog channel) | （101 kΩ±1%）||（16 pF ± 1 pF） |
| Input impedance(Digital Channel) | （101 kΩ±1%）||（9 pF ± 1 pF） |
| Waveform Generator | No |
| Display | 8-inch TFT LCD |
| Touchscreen | YES |
| Warranty | 3 years |
| Shipping Dimensions (L x W x H) | 19 in x 8 in x 12 in |
| Shipping Weight | 4.5 kg |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |
| Included Accessories | Power cord, USB2.0 printing cable, Passive probe 200MHz * 2(UT-P05) or 100MHz * 4 (UT-P04), Logic analyzer probe (UT-M15) |
| Memory depth | max. 56 Mpts (divided by number of active channels) |
| Sample rate | max. 2 GS/s |
| Waveform capture rate | 200.000 wfm/s (1.000.000 wfm/s in Fast Acquire mode) |
| Vertical resolution | 8 bits |
| Vertical scale | 500 µV/div – 20 V/div |
| Interfaces | USB Host/Device, LAN, EXT Trigger, Aux Out (Pass/Fail, Trigger Out), VGA, signal source output interface (MSO-2xxx-S only) |
| Decoding options | RS232, I2C, SPI, CAN, CAN-FD, LIN, FlexRay |
| Display | 8″ TFT LCD (800×480) |
| Dimensions | 370 x 185 x 115 mm |
| Weight | 4.5 kg |
Accessories
The MSO2204-S oscilloscope comes with:
- USB cable
- Power cord
- Passive probe 200 MHz UT-P05
- BNC-red and black alligator clip cable UT-L02A
- Logic analyzer probe UT-M15
