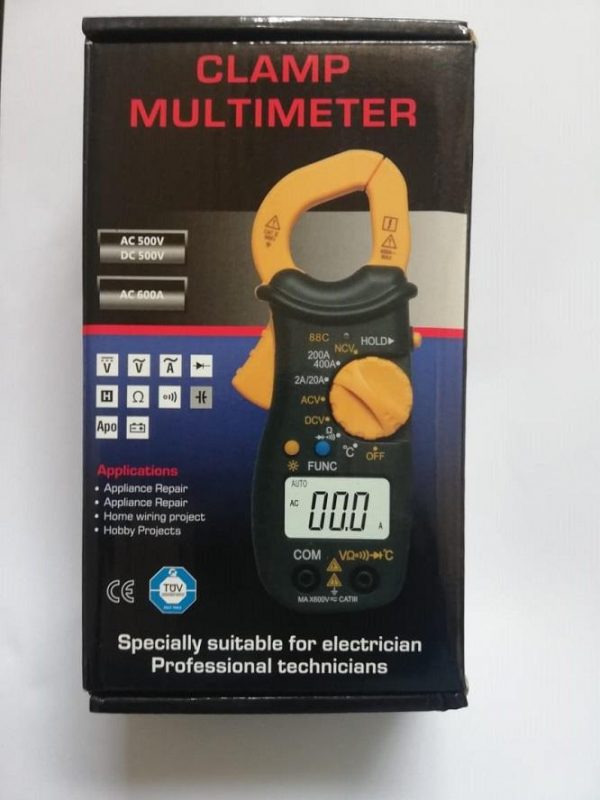

The description of Clamp Meter ACA CHY 88A With NCV:
- clamp multimeter
- Performs AC/DC Voltage, AC/DC current, Resistance, Audible Continuity, Diode
- Temperature Measurements, and non-contact ACV Detect (NCV) as well as Capacitance, Hz, etc.
- Auto Ranging DMM with AC.DC current clamp meter function.
| FUNCTION | MEASURING RANGE | ACCURACY | ||
| DCV | 200mv/2v/20v/200v | ±(0.8%+2) | ||
| 600v | ±(1.0%+2) | |||
| 400mv/4v/40v/400v | ±(0.8%+2) | |||
| 600v | ±(1.0%+2) | |||
| ACV | 2V/20V/200V | ±(1.0%+5) | ||
| 600V | ±(1.2%+5) | |||
| 400mv/4v/40v/400v | ±(1.0%+10) | |||
| 600V | ±(1.2%+10) | |||
| ACA | 2A/20A | ±(3.0%+10) | ||
| 200A | ±(2.5%+10) | |||
| 4A/40A/400A | ±(2.5%+10) | |||
| 600A | ±(1.5%+5) | |||
| Ω | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ | ±(1.2%+2) | ||
| 20MΩ | ±(2.0%+5) | |||
| 400Ω/4KΩ/40KΩ/400KΩ/4MΩ | ±(1.2%+2) | |||
| 40MΩ | ±(2.0%+5) | |||
| CX | X | X | ||
| HZ | X | X | ||
| °C | X | X
|
||
FEATURE |
||||
| LCD | DIGITS | 1999 | 3999 | |
| Clamp Size | Opening | 30mm | 30mm | |
| Test Range | Ac voltage/dc voltage/AC-DC current,resistance | • | • | |
| Capacitance/frequency/duty cycle/temperature | • | |||
| Power | 3X1.5v AAA | |||
| Weight | 133.5g | |||
| Security | CE,ETL,CATIII 600V ROHS | |||
Packages Include
1 × Clamp Meter ACA CHY 88A With NCV
