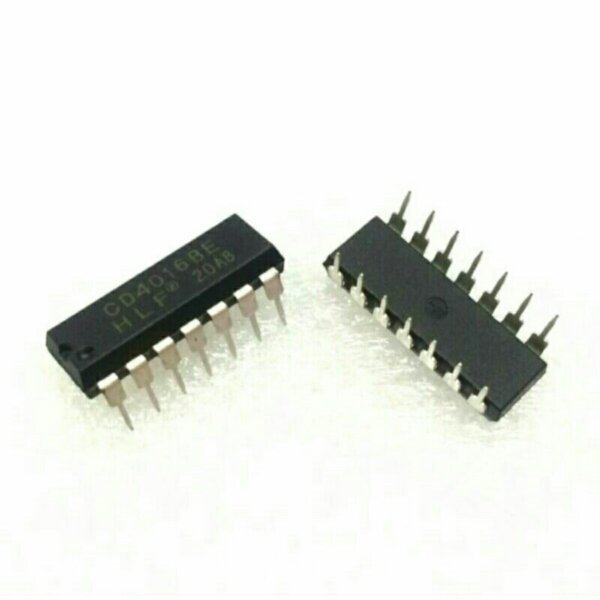

The CD4016 is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals
Specifications:
- VDD Supply Voltage: −0.5V to +18V
- VIN Input Voltage: −0.5V to VDD + 0.5V
- TS Storage Temperature Range: −65°C to + 150°C
- Power Dissipation (PD): Dual-In-Line: 700 mW
- Lead Temperature: 260°C
Applications:
- Analog signal switching/multiplexing
Signal gating
Squelch control
Chopper
Modulator/Demodulator
Commutating switch - Digital signal switching/multiplexing
- CMOS logic implementation
- Analog-to-digital/digital-to-analog conversion
- Digital control of frequency, impedance, phase, and analog-signal gain
