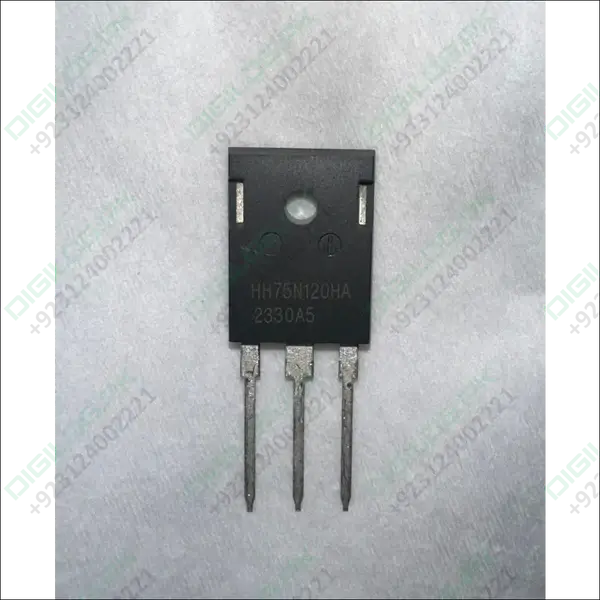

HH75N120HA IGBT 75A 1200V for Solar Inverters
šĀ Product Description:
TheĀ HH75N120HAĀ is a high-performanceĀ Insulated Gate Bipolar Transistor (IGBT)Ā rated atĀ 1200 voltsĀ andĀ 75 amps, built with trench-gate or field-stop technology. This IGBT offers excellent switching performance, low conduction loss, and is housed in aĀ TO-247 packageĀ suitable for heatsink mounting.
Designed for medium to high-power applications, it provides an ideal solution forĀ inverters,Ā motor drives,Ā UPS systems,Ā solar power systems, andĀ industrial power supplies. Its robust electrical and thermal capabilities make it a reliable choice for demanding switching environments.
āļøĀ Key Specifications:
| Parameter | Value |
|---|---|
| CollectorāEmitter Voltage (V<sub>CES</sub>) | 1200āÆV |
| Continuous Collector Current (I<sub>C</sub>) | 75āÆA |
| Pulsed Collector Current (I<sub>CM</sub>) | Typically 150ā225āÆA |
| GateāEmitter Voltage (V<sub>GE</sub>) | Ā±20āÆV max |
| Saturation Voltage (V<sub>CE(sat)</sub>) | Typically 1.7ā2.0āÆV |
| Total Gate Charge (Q<sub>g</sub>) | Approx. 300ā350āÆnC |
| Turn-on Delay Time | ~100ā150āÆns |
| Turn-off Delay Time | ~300ā400āÆns |
| Junction Temperature Range (T<sub>j</sub>) | ā55Ā°C to +150Ā°C |
| Package Type | TO-247, 3-lead |
ā Ā Features & Benefits:
-
High voltage and current rating:Ā 1200V / 75A
-
Trench or Field-Stop IGBT technologyĀ for efficient switching
-
Low V<sub>CE(sat)</sub>Ā reduces conduction losses
-
Built-inĀ fast recovery diodeĀ for bidirectional circuit compatibility
-
RuggedĀ TO-247Ā package supports reliable thermal management
-
Suitable forĀ parallel operationĀ and heatsink mounting
š§°Ā Typical Applications:
-
Solar inverter systems
-
AC motor drives
-
UPS (Uninterruptible Power Supply)
-
Induction heating equipment
-
High-voltage power supplies
-
EV battery chargers
Related Products
Frequently Asked Questions (FAQ)
Is this IGBT suitable for high-powerĀ solar inverters?
Yes, the 75N120Ā IGBTĀ is specifically designed for high-power applications, such as solar inverters and industrialĀ motor drives.
Can I use this in aĀ UPS system?
Yes, you can use this IGBT in UPS systems, as it efficiently converts power.
Does this IGBT require a heatsink?
Yes, you should use aĀ heatsinkĀ for high-power applications to prevent overheating.
Package Includes
- 1 x HH75N120HA IGBT
