3.2 inch Nextion TFT HMI LCD Touchscreen NX8048K050 is a Seamless Human Machine Interface (HMI) solution. 3.2 inch Nextion TFT HMI LCD Touchscreen NX8048K050 that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of thing (IoT) or the consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.

It’s easy to adapt Nextion family HMI to existing projects. Users just need to provide it with a UART.

We are also selling Nextion touchscreen in different sizes like 2.4″3.5″4.3″7″ etc.

Features of 3.2 inch Nextion TFT HMI LCD Touchscreen NX4024T032:

  • 400 x 240 Resolution
  • RGB 65K true to life colours
  • TFT Screen with integrated 4-wire Resistive Touch Panel
  • Easy 4 pin interface to any TTL Serial Host
  • 4M Flash memory for User Application Code and Data
  • Onboard micro-SD card for firmware upgrade
  • Visual Area:69.60mm(L)×41.76mm(W)
  • Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
  • 5V85mA power consumption
  • CE/EMC, RoHS certified (certificates)

Specifications of 3.2 inch Nextion TFT HMI LCD Touchscreen NX4024T032:

Link Wiki No
Display Resolution 400*240
Display Interface Serial
Screen Type Touch Screen
Display Controller No
TFT display interface N/A
Display Size 3.2”
Board Size 95.04.*53.86mm
Expand SD Card Socket

Touch Screen

Weight 100


Please visit our wiki page for more information about this product. Any suggestions for improvement, such as correcting errors, adding more demo codes or tutorials, will be highly appreciated.

Technical Support:

For technical support, please open a ticket on Itead Support System.

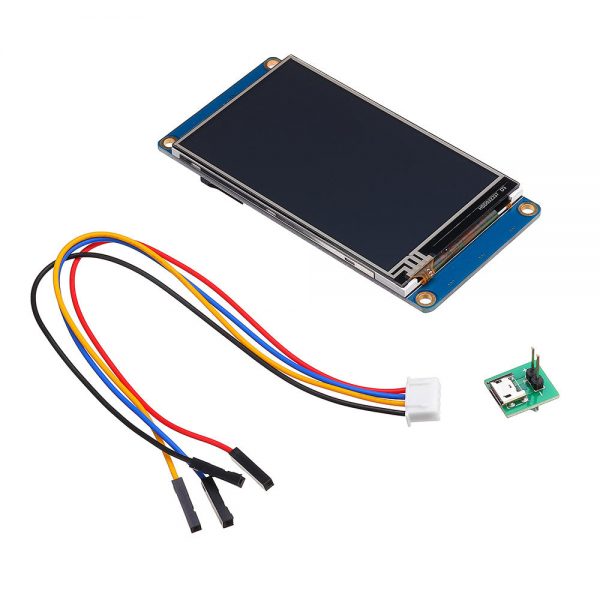

Package Includes:


  • 1 x 3.2 Inch Serial Touch TFT LCD Screen
  •  Micro USB to 2P Connector Board
  • 1 X 4-Pin Grove Cable

Image result for 3.2 inch Nextion touchscreen3.2

Best Online Shopping website for 3.2 inch Nextion TFT HMI LCD Touchscreen NX4024T032 in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.

Additional information

Weight 0.1 kg
