DALY BMS LiFePO4 4S 12V 60A Common Port Battery Protection Board with Balance
Availability:
In stock
Rs.6,950.00

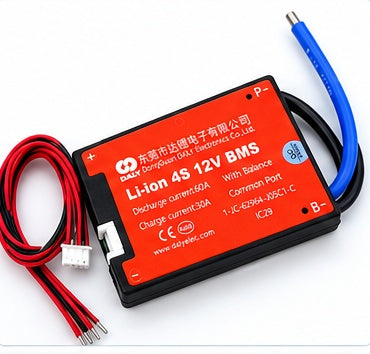

DALY 4S 12V 60A LiFePO4 Battery Management System
The DALY 4S 12V 60A LiFePO4 Battery Management System (BMS) is designed for compatible 4-series lithium iron phosphate battery packs.
This battery protection board features a common-port connection design and cell balancing functionality. It is intended to help manage charging and discharging while providing battery protection for compatible LiFePO4 battery assemblies.
With a listed continuous discharge current of 60A, this DALY BMS is suitable for appropriately designed 12V-class LiFePO4 battery systems where the battery cells, wiring, charger and connected equipment are matched to the BMS specifications.
Key Features
-
4S LiFePO4 Configuration: Designed for four lithium iron phosphate cells connected in series.
-
12V-Class Battery System: Intended for compatible 4S LiFePO4 battery packs.
-
60A Continuous Discharge Rating: Listed continuous discharge current of 60A.
-
Common-Port Connection: Charging and discharging use a shared connection arrangement.
-
Cell Balancing: Includes balancing functionality for the connected battery cells.
-
Battery Protection: Designed to provide protection against battery operating conditions such as overcharge, over-discharge and overcurrent.
-
DIY Battery Projects: Suitable for compatible battery pack assembly and energy storage projects.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | DALY |
| Product Type | Battery Management System (BMS) |
| Battery Chemistry | LiFePO4 / Lithium Iron Phosphate |
| Series Configuration | 4S |
| Nominal Battery Pack Voltage | 12.8V |
| Continuous Discharge Current | 60A |
| Connection Type | Common Port |
| Cell Balancing | Supported |
| Charging Voltage | 14.6V listed for 4S LiFePO4 |
| Model | Confirm exact model from supplied board label |

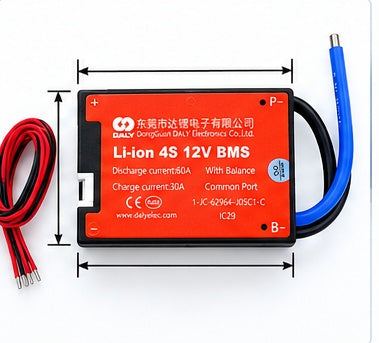

| Board Dimensions | Not confirmed for the exact supplied version |
| Charging Current | Confirm exact version specification before publishing |
Applications
-
4S LiFePO4 battery pack assembly
-
DIY 12.8V battery projects
-
Compatible solar energy storage systems
-
Battery backup projects
-
Portable power system development
-
Compatible electric mobility battery projects
-
Custom LiFePO4 battery assemblies
Compatibility

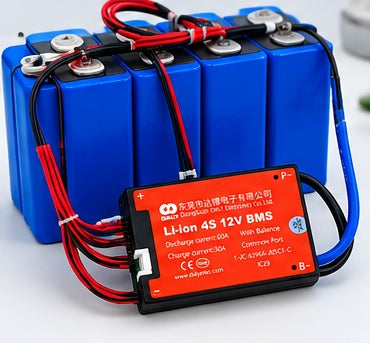

This BMS is intended for 4S LiFePO4 battery packs.
A typical 4S LiFePO4 pack uses four cells connected in series. The nominal pack voltage is 12.8V, and the commonly specified full-charge voltage is 14.6V.
Do not use this board with 18650 lithium-ion/NMC battery packs unless the exact BMS version is explicitly rated for that chemistry.
Installation & Safety
-
Confirm the battery chemistry is LiFePO4.
-
Confirm the battery pack has four cells connected in series.
-

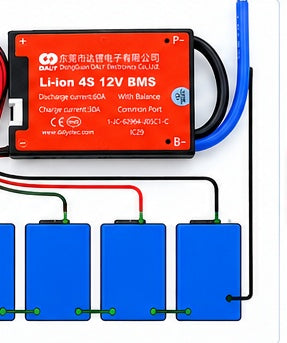

Follow the exact DALY wiring diagram for the supplied BMS.
-

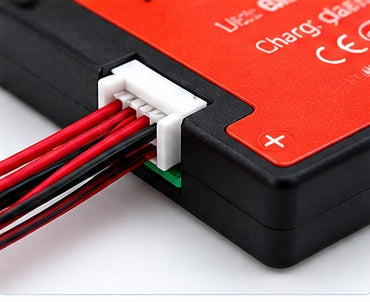

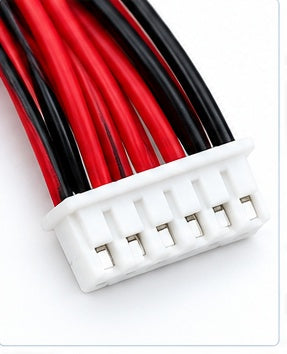

Connect cell balance wires in the correct sequence.
-
Verify polarity before connecting the charger or load.
-
Use a compatible LiFePO4 charger.
-
Ensure the battery cells, wires, connectors and cooling arrangements support the intended current.
-
Do not exceed the confirmed BMS ratings.
-
Do not connect the BMS using a wiring diagram from a different model.
