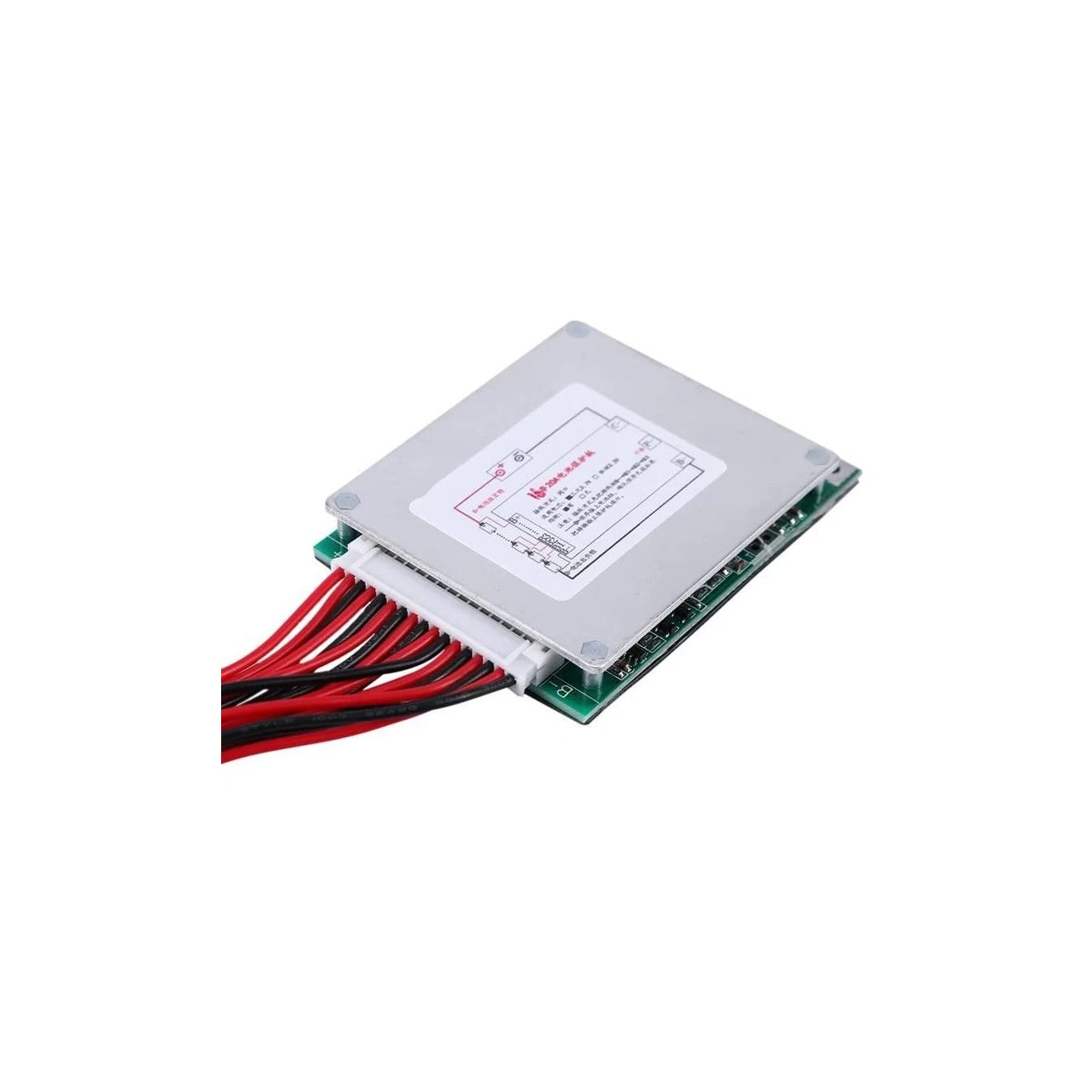

20A 16S 60V 18650 Lithium-Ion BMS Protection Board with Heatsink for E-Bike & Scooter

20A 16S 60V Lithium-Ion Battery BMS Protection Board with Heatsink

The 20A 16S 60V Lithium-Ion Battery Management System (BMS) is a battery protection board marketed for compatible 16-series lithium-ion battery packs.

Designed for battery pack management, this board is listed with a 20A continuous discharge rating and an integrated heatsink. Matching product listings describe protection functions intended to help protect the battery pack during charging and discharging.

The product is marketed for electric bikes and electric scooters. Before installation, verify that the exact BMS model matches the battery chemistry, series configuration, charging requirements, and discharge requirements of your battery pack.

Key Features

• 16S battery configuration: Listed for 16-series battery packs.

• 60V class: Marketed as a 60V lithium-ion BMS.

• 20A continuous discharge rating: Specified in the matching product listing.

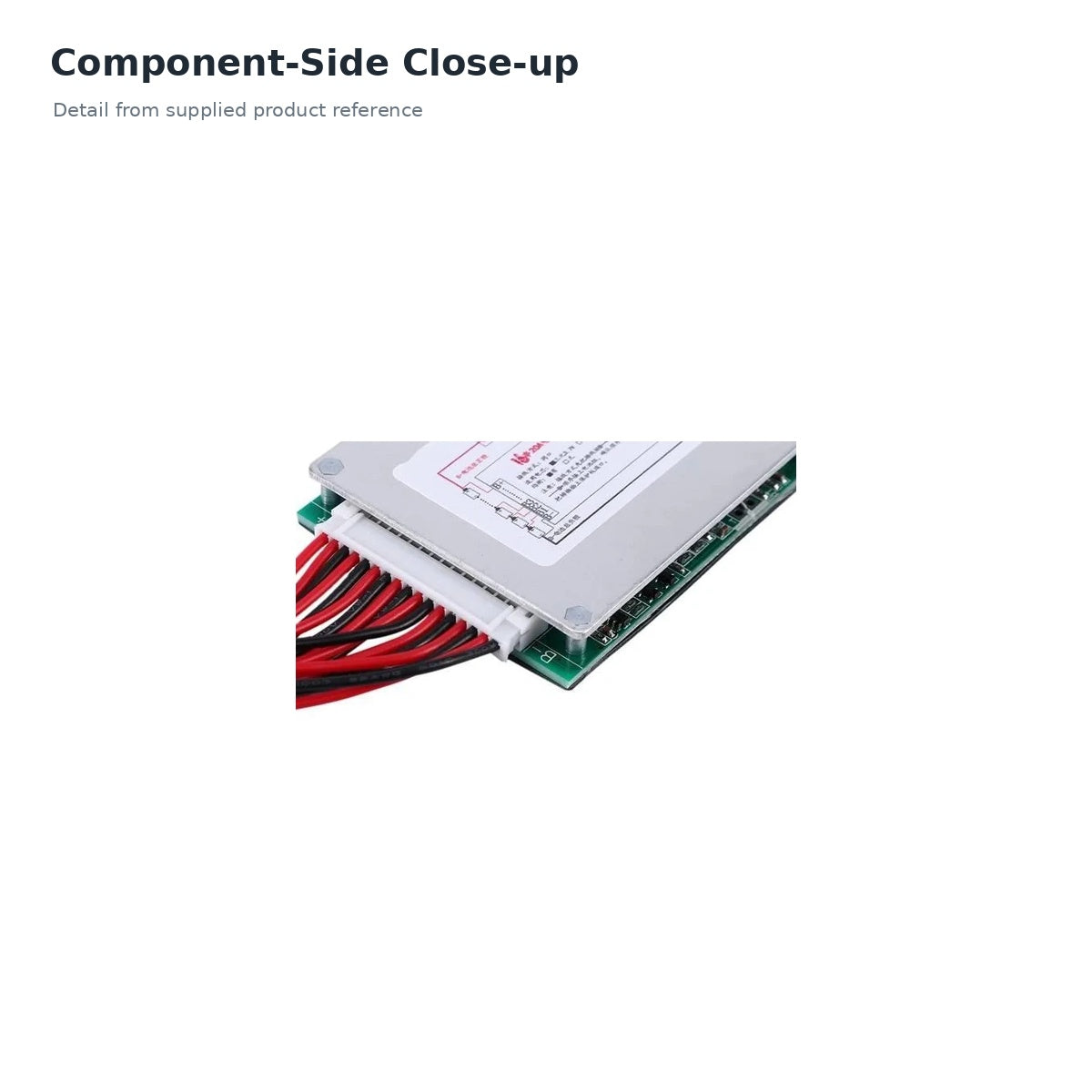

• Heatsink: Integrated heatsink shown and described in the matching listing.

• Battery protection: Product listing advertises overcharge, over-discharge, overcurrent, and short-circuit protection.

• Battery balancing: Balancing function is described in the matching product listing.

• E-bike and scooter application: Marketed for compatible electric bike and scooter battery packs.

5. Technical Specifications

6. Protection Functions

The matching product listing advertises:

Overcharge Protection
Protection against battery-cell overcharging.

Over-discharge Protection
Protection against excessive battery-cell discharge.

Overcurrent Protection
Protection against current exceeding the board's protection limit.

Short-Circuit Protection
Protection against short-circuit conditions.

Cell Balancing
A balancing function is described for the battery pack.

Exact detection thresholds, response delays, and balancing current are not included here because the matching listings do not consistently establish the exact board variant.

7. Typical Applications

Potential applications for compatible battery packs include:

• Electric bicycle battery packs

• Electric scooter battery packs

• Compatible electric motorcycle battery projects

• Battery pack assembly

• Compatible battery-powered equipment

• DIY lithium-ion battery projects

These are general application categories from product listings. Compatibility with a specific vehicle or battery pack is not guaranteed.

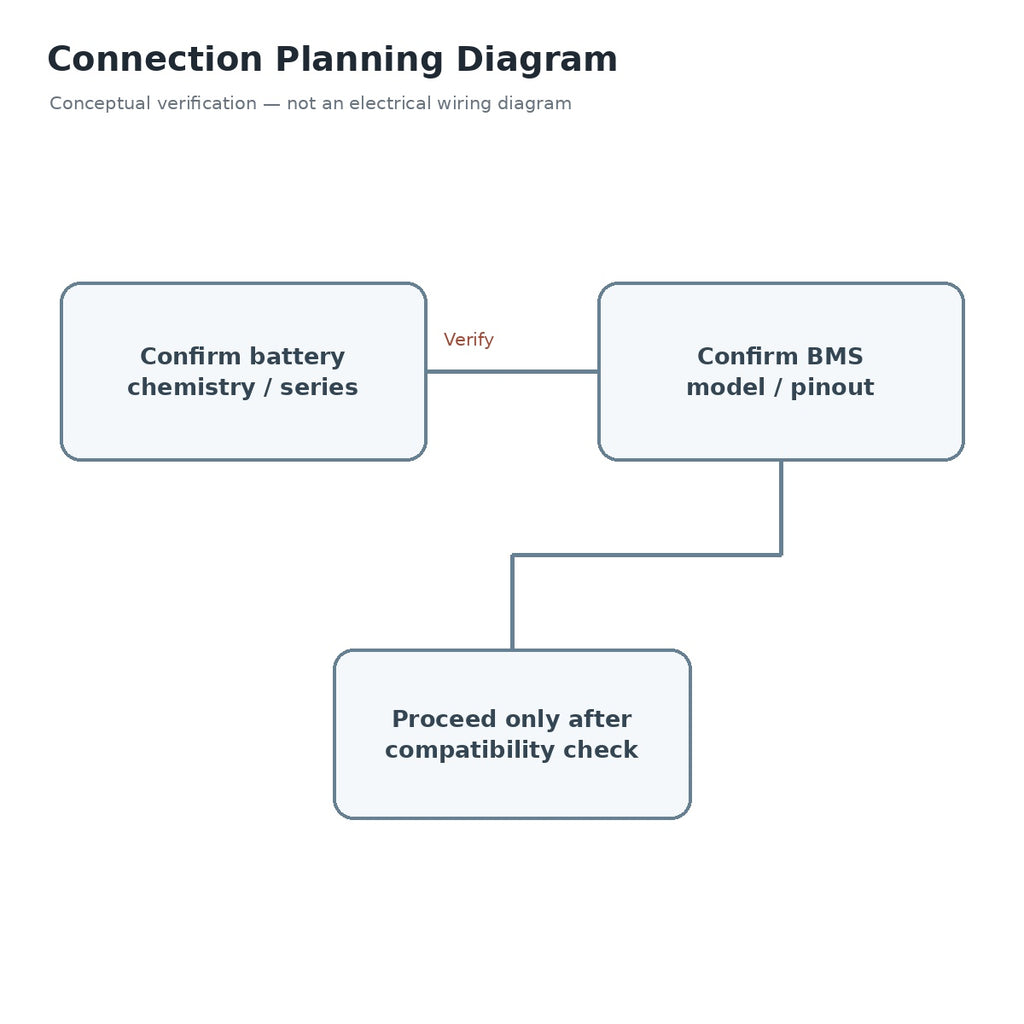

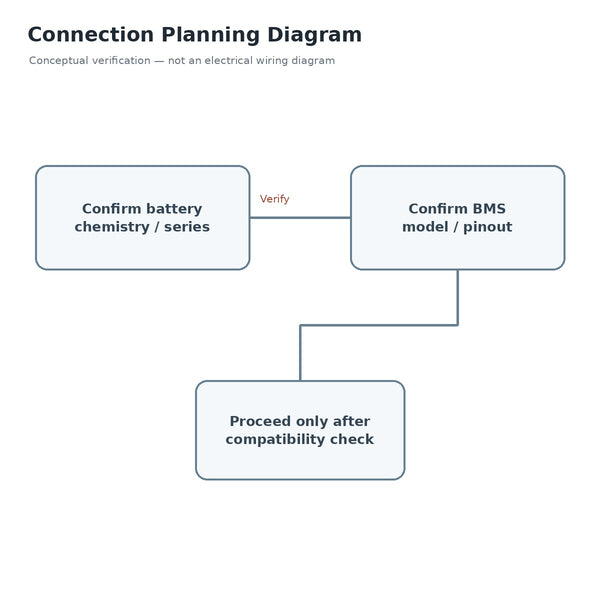

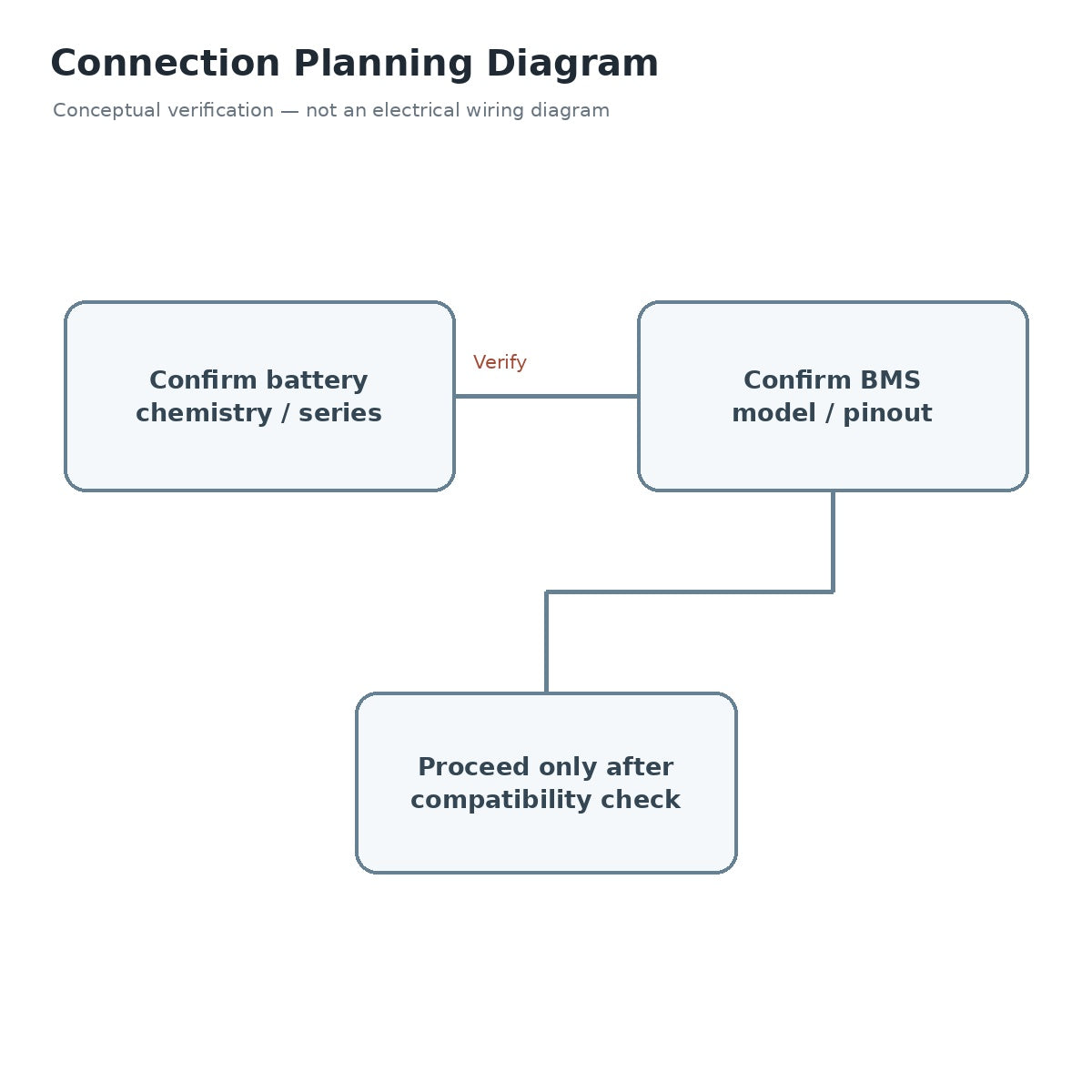

8. Installation Caution

• Use only with a battery pack configuration supported by the exact BMS model.

• Confirm the battery chemistry and 16S configuration before installation.

• Verify the balance-wire pinout and connection order using the exact board documentation.

• Confirm the battery's charging voltage and discharge requirements.

• Do not assume that every 60V battery pack uses the same configuration.

• Do not connect the board based only on wire colors or appearance.

• Incorrect wiring can damage the BMS or battery pack.
