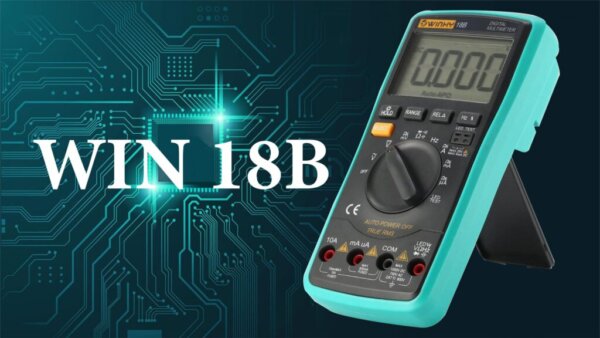

18B WINHY DMM In Pakistan

Description:
This digital multimeter 18B is capable of measuring AC / DC voltage, AC / DC current, resistance, capacitance, frequency, diode, LED test and continuity test.This digital multimeter is designed to offer users better performance and a higher security rating.The unique structural design makes it a new type of multimeter with a high performance / price ratio and a better choice for the laboratory, the factory and electricity.

Features:

1. Multifunction: can accurately measure the AC / DC voltage, AC / DC current, resistance, capacitance, frequency, diode, LED test and continuity test.
2. Portable Design: The multimeter includes a back support that allows you to place it securely on a surface. Moreover, you can easily pick up the test probe, which adds to user convenience. In addition, this design improves stability and comfort during extended testing sessions. Therefore, it makes the device both practical and efficient for everyday use.
3. Widely used: it is a perfect tool for the laboratory, the factory and the electricity.
4. Easy to use and clear to read: with large LCD screen, easy to use and read.
5. More advantages: Automatic shutdown, range, selection, real RMS, data retention, range indication and low voltage display.

 Specifications:

1. Model: 18B Display: 5999 account screen
2. Color: gray + blue Diode test: Yes
3. LED test: Yes Continuity: Yes
4. Wallpaper: Yes Auto power off: Yes
5. Waiting date: Yes Select: Yes
6. True RMS effective value: Yes Power: 9 V 6F22 battery (not included)
7. Product size: 184x90x46mm Net article weight: 324G
8. DC voltage: 600mV / 6V / 60V / 600v (0.5% + 3), 1000v (0.8% + 10)
9. AC voltage: 600mV / 6V / 60V / 600v (0.8% + 5), 750v (1.2% + 10)
10. Direct current: 600uA / 6000ua (0.8% + 10), 60mA / 600mA / 10a (2.0% + 30)
11. Alternating current: 600uA / 6000ua (0.8% + 10), 60mA / 600mA / 10a (2.0% + 30)
12. Resistance: 600 (0.8% + 5), 6k / 60k / 600k / 6m (0.8% + 3), 60m (1.0% + 25)
13. Capacitance: 60nF / 600nF / 6 UF / 60uF ± (3.5% + 20) 600 UF / 6000uF ± (5.0% + 10)
14. Frequency: 10Hz / 100Hz / 1 kHz / 100 kHz / 1 MHz / 20MHz ± (0.1% + 3)

 Package Include:

1. 1 x Digital Multimeter
2. 2 x of pens
3. 1 x User’s manual
