Description

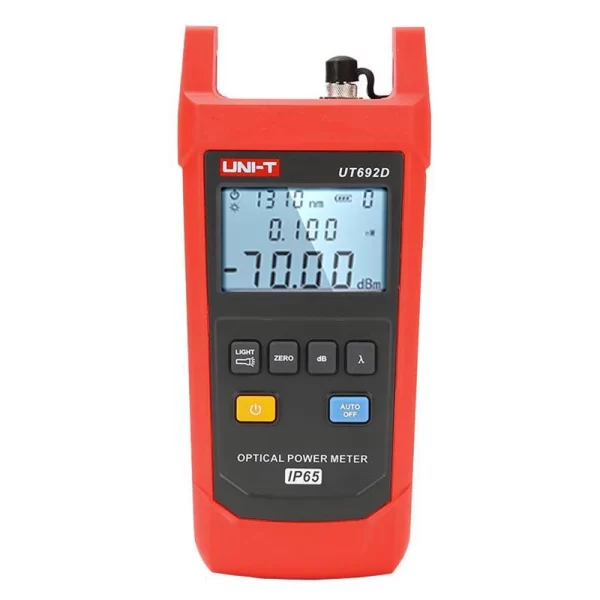

The UT692D handheld optical power meter are used to measure absolute optical power or relative loss of optical power through length of fiber optic wires.
UT692 series are designed to be durable, the meters can withstand 2m drop and have a dust/water resistance rating of IP65. In addition, UT692’s other features include backlight display, flashlight, auto power off, wavelength storage/recall, user calibration, and ultra-wide optical power test range.
Applications of UT692D Handheld Optical Power Meter:
2. Optical fiber communication
3. Evaluation of optical equipment
4. Production, installation, operation and maintenance of fiber optic transmission systems
5. Optical engineering, production plant or facility maintenance
Specifications |
UT692D |
|
| Measurement Range (dBm) | -70~+10 | |
| Wavelength Range (nm) | 800-1700 | |
| Connector | Universal connector FC/SC/ST ( FC as standard, SC and ST adapter as options) | |
| Detector Type | InGaAs | |
| Uncertainty | ±5% | |
| Calibrated Wavelength (nm) | 850, 980, 1300, 1310, 1490, 1550, 1625, 1650 | |
| Display Resolution | Linear: 0.1%, logarithmic: 0.01dBm | |
| Auto Power Off (min) | 10 | |
| Power Supply | 1. 5V AA alkaline battery (3 pcs) | |
| Low Battery Indication | Low battery indication at about 3.3V, auto power off at about 3V | |
| Battery Operation Time (h) | ≥60 | |
| Drop Height (M) | 2 | |
| Operating Temperature | 0℃~40℃ | |
| Storage Temperature | -10℃~50℃ | |
| Dimensions (mm) | 189×87×45 | |
| Net Weight (g) | 286 | |
| Certification | CE, IP65,RoHS | |
General Characterisitics |
||
| Power | 1.5V battery x 3 | |
| Product color | Red and grey | |
| Product net weight | 286g | |
| Product size | 189mm x 87mm x 45mm | |
| Standard accessories | 1.5V Batteries, English manual, Dedicated pouch | |
| Standard individual packing | gift box | |
| Standard quantity per carton | 10pcs | |
| Standard carton measurement | 295mm x 250mm x 210mm | |
| Standard carton gross weight | 14.5Kg（TBC） | |
Package Includes:
- 1 x UT692D Handheld Optical Power Meter
