The UT673PV series solar MPPT meters test solar panels for maximum power, voltage, current to find the abnormalities.
With a large screen, automatic measurement, and portable design, it enhances efficiency for photovoltaic industry professionals and users.

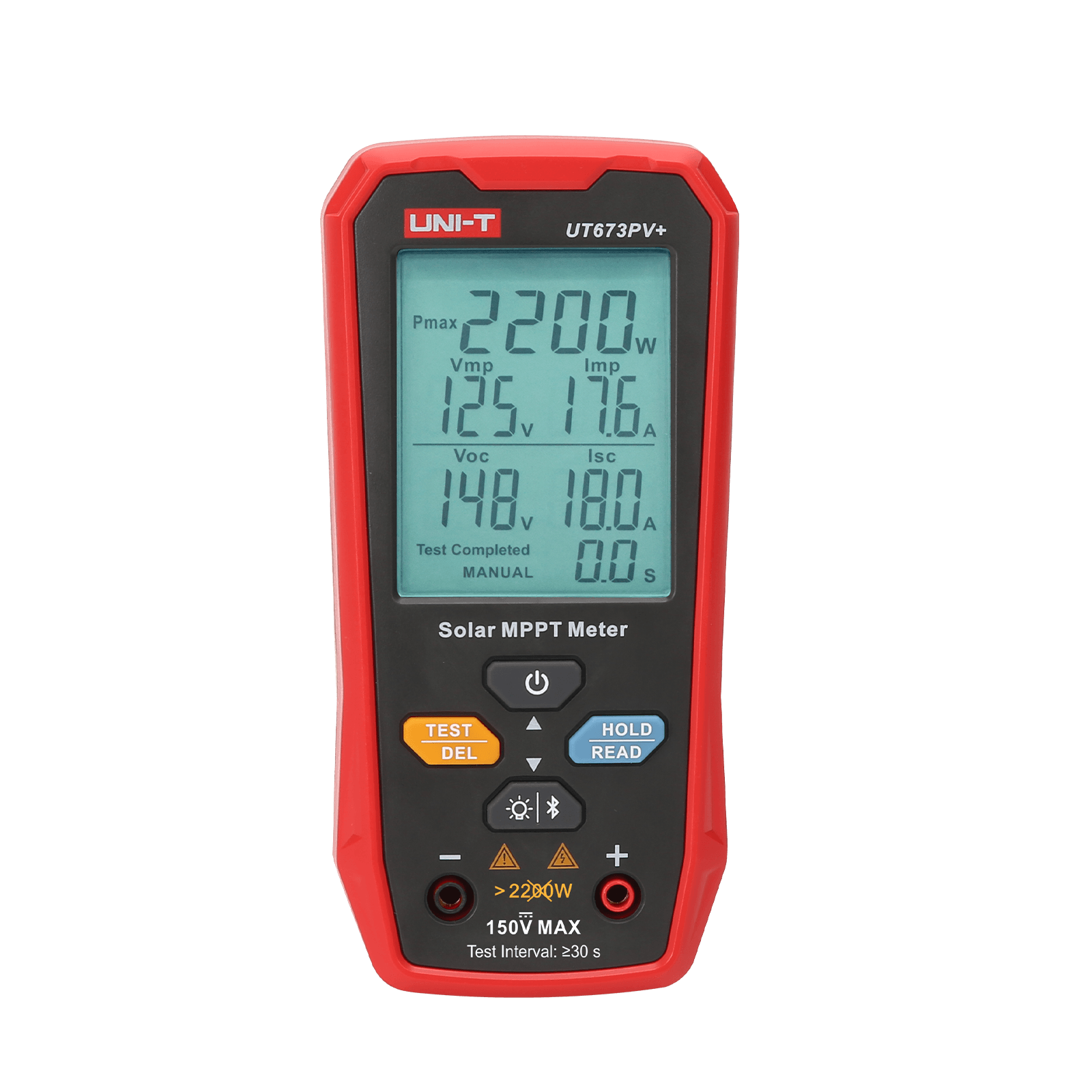

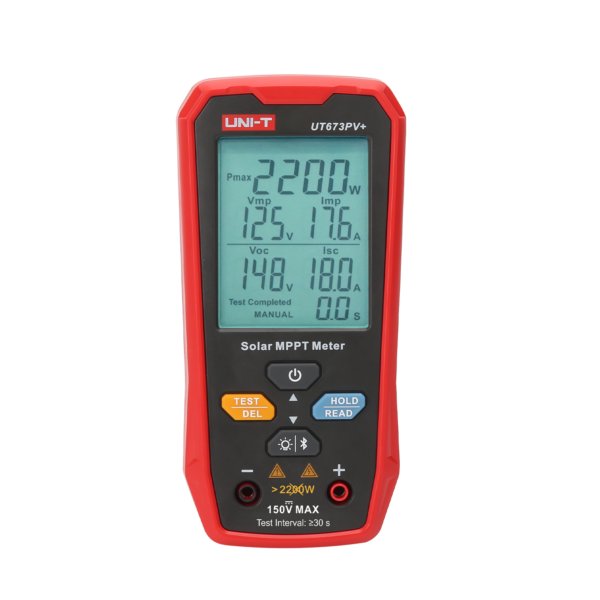

Features of UT673PV+ Solar MPPT Meter
Certificates ： CE/cETLus/RoHS
- Maximum power test (Pmax) 5～2200W
- Peak power voltage (Vmp) 10～150V
- Peak power current (Imp) 0～20A
- Open circuit voltage (Voc) 10～150V
- Short circuit current (Isc) 0～20A
- Large screen and multiple result display
7. Bluetooth App
8. Equipped with an MC4 test lead
9. Power supply: 1.5V AAA *3
10. Portable and convenient
11. CAT 0 150V
Specifications
| Model | UT673PV+ | UT673PV | ||
| Certificate | CE | CE | ||
| Pmax | 5～2200W | ±(1.0%＋10) | 5～800W | ±(1.0%＋10) |
| Imp | 0～20A | ±(1.5%＋5) | 0～35A | ±(1.5%＋5) |
| Vmp | 10～150V. | ±(1.5%＋5) | 10～60V | ±(1.5%＋5) |
| Voc | 10～150V. | ±(1.5%＋5) | 10～60V | ±(1.5%＋5) |
| Isc | 0～20A | ±(1.5%＋5) | 0～35A | ±(1.5%＋5) |
| Display | Large LCD (52*66mm) | Large LCD (52*66mm) | ||
| Reverse polarity connect protection |
✔ | ✔ | ||
| Overvoltage protection | ✔ | ✔ | ||
| Overcurrent protection | ✔ | ✔ | ||
| Over temp. protection | ✔ | ✔ | ||
| Overpower protection | ✔ | ✔ | ||
| Manual MPPT test | ✔ | ✔ | ||
| Bluetooth app | ✔ | N/A | ||
| Data hold | ✔ | ✔ | ||
| Data storage | ✔ | N/A | ||
| Power supply | 1.5V AAAx3 | N/A | ||
| Category rating | CAT 0 150V | CAT 0 60V | ||
| Characteristic | ||||
| Product color | Red+Black | Red+Black | ||
| Product size | 169*81*46 | 143*74*25 | ||
