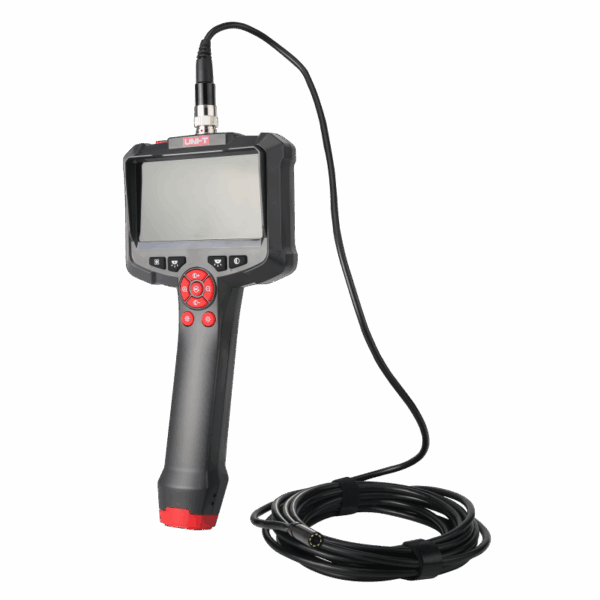

Features of UT665P Handheld Single Lens Industrial Borescope
Certifications: CE,RoHS
● 4.3″ Display Screen
● 8 Adjustable Brightness LEDs
● Large Storage of Li-ion Battery
● IP67-Rated Camera
● Image Rotation
● Aviation-Plug Hose
● Optional Hose Length: 1m, 5m, 10m
Specifications
| Specifications | ||||
| Models | UT665P | UT665P-5m | UT665P -10m | |
| System | Screen Size | 4.3″ | ||
| System Languages | English | |||
| Screen Pixels | 1280*720 | |||
| Basic Functions | Screen rotation, Contrast adjustment, Black-white images, Color conversion, Image zoom-in and zoom-out, Screen brightness adjustment. | |||
| Hose | Hose Material | Replaceable hardwire with aviation plug | ||
| Hose Length | 1m | 5m | 10m | |
| Lens | Lens Diameter | 8mm | ||
| Light Sensor Chip | CMOS | |||
| Field of View (FOV) | 70° | |||
| Depth of Field (DOF) | 20~100mm | |||
| Adjustable LED Lights | 4-Setting, 8 LEDs | |||
| Pixels | 300K | |||
| IP Rating | IP67 | |||
| Battery | Battery | 3.7V/2000mAh | ||
| Battery Life | 6h | |||
| Working Conditions | Lens Temperature | 0°C~80°C | ||
| Working Temperature | 0°C~45°C | |||
| Humidity | <90%RH, No condensation | |||
| Characteristics | ||||
| Standrad Accessories | Handheld Single Lens Industrial Borescope*1, Type-C Cable*1, Gift Box*1, User Manual*1, Blister Tray*1, Hook*1, Side Mirror*1, Magnet*1, Fixed Buckle*3. | |||
| Standard Quantity Per Carton | 20pcs | |||
