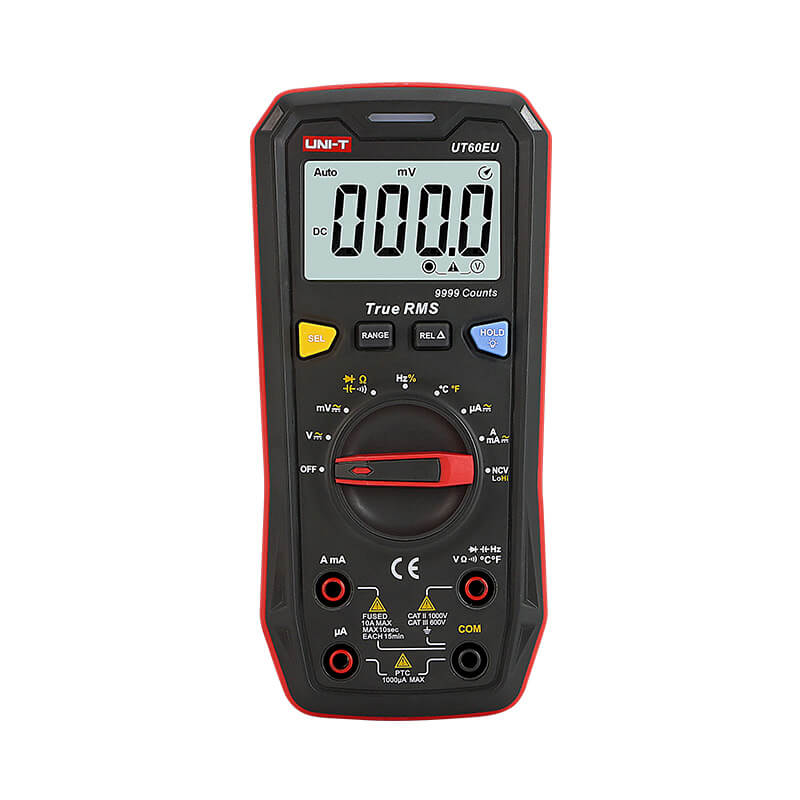

Features of UT60 Series Digital Multimeter
Certificates: CE, UKCA, cETLus
● 9999 counts
● True RMS
● Bluetooth
● Duty cycle
● Diode/Continuity test
● Temperature
● Non-contact voltage
● Analog bar/Data hold
● Backlight/Relative mode
● Auto/Manual range
● Low battery indication
● Three-color LED light indicator
Specifications of UT60EU Series Digital Multimeter
| Specification | Range | UT60EU Accuracy |
|---|---|---|
| DC Voltage | 9.999mV / 99.99mV / 999.9mV / 9.999V / 99.99V / 999.9V | ±(0.5% + 3) |
| AC Voltage | 9.999mV / 99.99mV / 999.9mV / 9.999V / 99.99V / 999.9V | ±(0.8% + 3) |
| DC Current | 999.9μA / 999.9mA / 9.999A / 10A | ±(0.8% + 3) |
| AC Current | 999.9μA / 999.9mA / 9.999A / 10A | ±(1.0% + 3) |
| Resistance | 999.9Ω / 9.999kΩ / 99.99kΩ / 999.9kΩ / 9.999MΩ / 99.99MΩ | ±(0.8% + 2) |
| Capacitance | 9.999nF / 99.99nF / 999.9nF / 9.999μF / 99.99μF / 999.9μF / 9.999mF / 9.99mF | ±(4.0% + 5) |
| Frequency | 99.99Hz ～ 9.999MHz | ±(0.1% + 5) |
| Duty Cycle | 0.1 ～ 99.9% | ±(3% + 5) |
| Temperature | –40℃ ～ 1000℃ / –40°F ～ 1832°F | ±4℃ / ±5℉ |
? Features – UT60EU
-
Display Count: 9999
-
Auto Range: ✔
-
REL Mode: ✔
-
NCV (Non-Contact Voltage): ✔
-
Diode Test: ✔
-
Continuity Test: ✔
-
Acousto-optic Indication: ✔ (NCV / continuity / battery power)
-
Low Battery Indication (≤3.6V): ✔
-
Data Hold Function: ✔
-
Auto Power Off (after 15 minutes): ✔
-
Operation Temperature: 0℃ ～ 40℃
-
Safety Rating: CAT II 1000V / CAT III 600V
? General Characteristics – UT60EU
-
Battery: 3 × 1.5V AAA
-
Color: Red and Gray
-
Net Weight: 290g
-
Product Size: 169mm × 81mm × 46mm
-
Standard Accessories: Gift box, manual, thermocouple
-
Carton Packing:
-
Quantity per carton: 20 pcs
-
Carton size: 420mm × 320mm × 300mm
Applications:
UT60EU voltage measurement
-
