Description

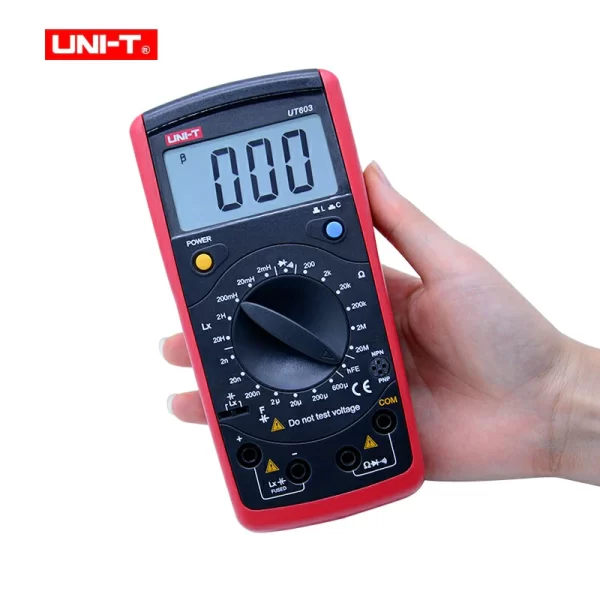

UT603 Inductance Capacitance Meter is used to test resistors, capacitors, and inductors. They can also be used to measure transistor parameters. These meters can be used to check electronic components in electronic labs, production lines, maintenance facilities, and schools.
Specifications |
Range |
UT603 |
Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.8%+1) |
Capacitance (F) | 2nF/20nF/200nF/2uF/20uF/200uF/600uF | ±(1%+5) |
Inductance (H) | 2mH/20mH/200mH/2H/20H | ±(2%+8) |
Features | ||
Display count | 2000 | |
Manual range | √ | |
Diode | √ | |
Transistor | √ | |
Continuity buzzer | √ | |
Low battery indication | √ | |
General Characteristics |
||
Power | 9V battery (6F22) | |
Display | 61mm x 32 mm | |
Product color | Red and grey | |
Product net weight | UT601/UT602: 310g, UT603: 312g | |
Product size | 172mm x 83mm x 38mm | |
Standard accessories | Battery, test leads with alligator clips, holster | |
Standard individual packing | Gift box, English manual | |
Standard quantity per carton | 20pcs | |
Standard carton measurement | 450mm x 330mm x 340mm (0.099CBM per standard carton) | |
Standard carton gross weight | 9.6kg |
Package Includes:
- 1 x UT603 Inductance Capacitance Meter
