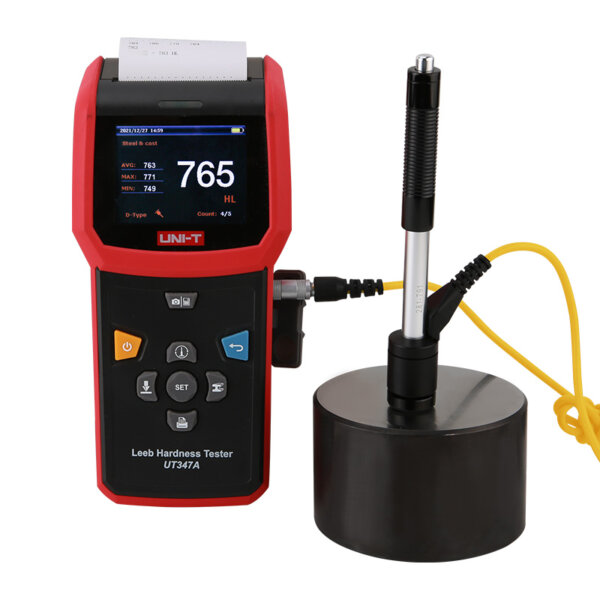

UT347A Leeb Hardness Tester in Pakistan

Description

The UT347A Leeb Hardness Tester is a compact and highly accurate tool designed for portable hardness testing. It supports thermal printing, making it convenient for on-site testing and documentation. This tester is especially suitable for field hardness testing of large equipment, such as roller turboshafts, pressure vessels, and turbine sets, where precision is crucial. Moreover, it is widely used in various industries, including petrochemical, electric power, automobile, shipbuilding, and machinery manufacturing. Additionally, its versatile design ensures reliable performance across a range of applications, allowing users to quickly assess material hardness in different environments. As a result, the UT347A delivers both portability and accuracy, making it an essential tool for professionals in many industrial sectors.

Features of UT347A Leeb Hardness Tester

1 6 kinds of hardness values (HL, HB, HRC, HRB, HV, HS) is a real-time measurement

2 One hardness tester can be equipped with 7 different impact devices

3 Automatic identification without calibration when replacing impact device
4 Statistical, multi-unit, line chart, histogram 4 measurement modes
5 Camera: 640×480 pixels (900 BMP format pictures could be stored)

6 Automatic alarm when the upper and lower limits are exceeded

7 Adjustable backlight brightness

8 Mobile phone Bluetooth APP and PC software analysis data

9 Support thermal printing

10 Tri-color LED indication and LED flashlight

Specifications of UT347A Leeb Hardness Tester

Specifications
Functions	Impact device type	Standard Richter block hardness value	Resolution	Error value	Indication repeatability	instructions
Hardness measurement	D	790±40HLD	1HLD	±6HLD	6HLD	Standard hardness blocks: 1. Standard D-type Richter hardness blocks A grade uniformity ±1HLD; 2. Standard G Type Richter Hardness blocks, grade A uniformity ±1HLG;
		530±40HLD		±10HLD	10HLD
	DC	790±40HLDC	1HLDC	±6HLDC	6HLDC
		530±40HLDC		±10HLDC	10HLDC
	DL	894±40HLDL	1HLDL	±12HLDL	12HLDL
		736±40HLDL
	D+15	795±40HLD+15	1HLD+15	±12HLD+15	12HLD+15
		544±40HLD+15
	G	590±40HLG	1HLG	±12HLG	12HLG
		500±40HLG
	E	755±40HLE	1HLE	±12HLE	12HLE
		508±40HLE
	C	851±40HLC	1HLC	±12HLC	12HLC
		590±40HLC
Certificates		CE (In processing), UKCA
Display screen		2.8-inch 320*240 graphic dot matrix color TFT screen.
Material selection		Steel and cast steel, alloy tool steel, stainless steel, forged steel, cast aluminum alloy, copper zinc alloy, copper tin alloy, gray cast iron, nodular cast iron, pure copper; Select the appropriate material for measurement.
Hardness scale		HL, HB, HRC, HRB, HV, HS
Strength		σb(tensile strength)
Impact direction		0°、45°、90°、135°、180°A total of 5 impact directions
Measurement mode		Statistical, multi-unit, line chart, histogram
Statistical measure		Max/Min/Avg
Thermal printing		57mm width thermal printing pape
Data storage		900groups
Voice prompt		√
Bluetooth APP function		√
USB Communication		√
PC analysis software		√
Auto power off		Can be set: 1/ 5 / 10 /30 minutes or cancel
Low battery indication		√
External power source		Power adapter requirements: DC5V 2A Type-c connector.
Charging time		About：2～4h
Battery		3.7V 2500mAh polymer rechargeable lithium battery.
Drop test		1m

Why choose The UT347A Leeb Hardness Tester?

The UT347A Leeb Hardness Tester is an ideal choice for professionals seeking a portable and accurate solution for hardness testing. Its compact design allows for easy transport, making it perfect for on-site measurements of large equipment such as turboshafts, pressure vessels, and turbine sets. Furthermore, the tester supports thermal printing, ensuring convenient documentation of results in real time. Additionally, it is widely used in industries like petrochemical, electric power, automobile, shipbuilding, and machinery manufacturing, highlighting its versatility. Moreover, its reliable performance and ease of use make it a valuable tool for ensuring material quality and integrity in various industrial applications. Consequently, the UT347A combines precision, portability, and efficiency, making it an essential tool for accurate hardness testing.

Package included
