Description

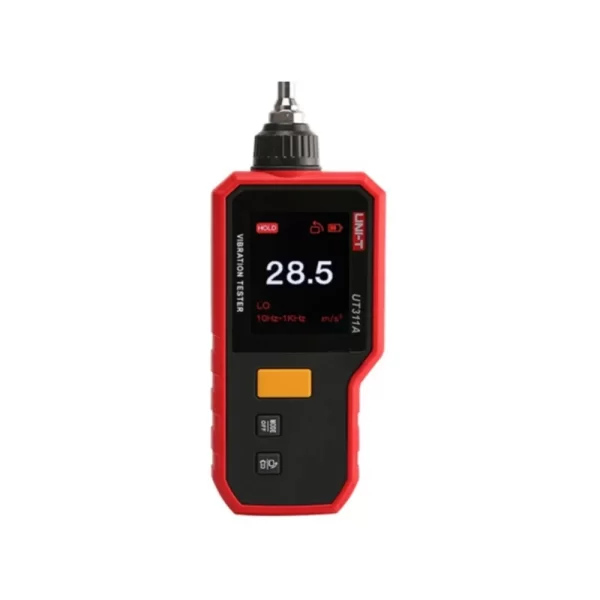

The UT311A is a handheld vibration tester equipped with an acceleration sensor and a digital display circuit, making it highly efficient and user-friendly. It is primarily used to measure vibration acceleration, velocity, and displacement of mechanical equipment, ensuring accurate and reliable results. Moreover, its wide range, simple operation, and convenient portability make it an ideal tool for various applications. Additionally, it is perfectly suited for patrol detection of equipment vibration in industries such as power, metallurgy, and petrochemicals, providing valuable insights for maintenance and fault diagnosis. With its practical features and versatility, the UT311A is an excellent choice for professionals seeking precision and convenience.
Features of UT311A Vibration Tester
1 Acceleration/velocity/displacement measurement
2 High/low frequency acceleration modes
3 Multiple probes
4 High sensitivity sensor
5 Come with flashlight
6 LCD TFT and automatically rotatable screen
7 Rechargeable lithium battery
8 Simple design and compact structure
Specifications of UT311A Vibration Tester
| Specification | UT311A | UT312A |
|---|---|---|
| Parameter | Range | Frequency |
| Acceleration (PEAK) | 0.1–199.9 m/s² | LO: 10 Hz–1 kHz |
| HI: 1 kHz–15 kHz | ||
| Velocity (RMS) | 0.1–199.9 mm/s | 10 Hz–1.5 kHz |
| Displacement (P-P) | 0.001–1.999 mm | 10 Hz–1 kHz |
Additional Features:
1 Automatically rotatable screen: ✔
2 High/low frequency acceleration modes: ✔
3 Data hold: ✔
4Flashlight: ✔
5LCD type: 2.4″ TFT color screen, full-view
6LCD backlight: ✔
7Auto power-off: 5 minutes of inactivity
8 Probes: Long and short probes (optional); U-type magnetic sucker (UT312A only)
9 Battery indicator: ✔
Battery Specifications:
1 Battery type: 1350 mAh, 3.7 V lithium battery
2 Charging interface: Type-C
3 Charging voltage: DC 5 V
4 Charging time: Approximately 3 hours
5 Battery duration: Approximately 12 hours
Environmental Conditions:
1 Operating temperature and humidity: 0℃–40℃, ≤80% RH (non-condensing)
2 Storage temperature: -20℃–60℃
General Characteristics
Accessories Included:
1 Long and short probes
2 U-type magnetic sucker (UT312A only)
3 USB-C charging cable
4 User manual
5 Safety instructions
Product Size:
1 UT311A: 180×28×64 mm (with short probe)
2 UT312A: 168×28×64 mm
Product Weight:
1 UT311A: Approximately 191 g (with short probe)2
2 UT312A: Approximately 364 g (with short probe)
Package Included
UT311A Vibration Tester x 1
