Features of UT195M Series Professional Multimeter
Certificates: CE, UKCA, GS, cTUVus
● IP65 rating, 2m drop proof, CAT III 1000V, CAT IV 600V
● Large 6000-count LCD screen
● True RMS
● ACV 750V 5kHz bandwidth
● Flashlight
● Auto LCD backlight controlled by light sensor (can be turned off)
● LoZ voltage test, for ghost voltage measurement
● 20A current measurement (max 30 seconds)
● 31 analog bar

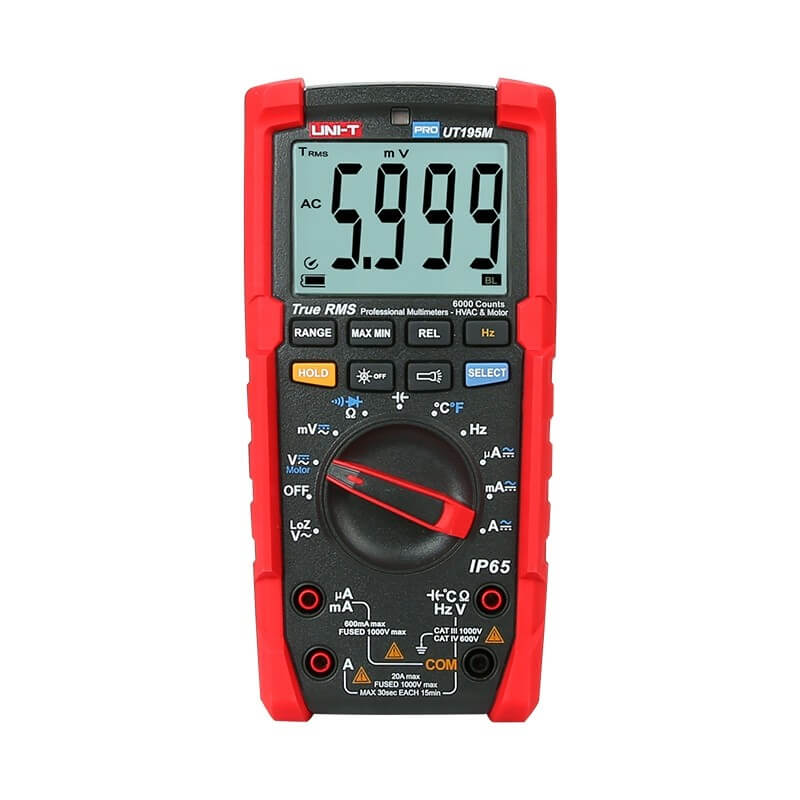

UT195M – Professional True RMS Digital Multimeter
Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage (V) | 1000V | ±(0.5%＋3) |
| AC + DC Voltage (V) | 750V | ±(0.7%＋3) |
| AC Voltage (V) | — | — |
| LoZ ACV | 600V | ±(2%＋3) |
| DC Current (A) | 20A | ±(0.8%＋3) |
| AC Current (A) | 20A | ±(1%＋3) |
| Resistance (Ω) | 60MΩ | ±(0.8%＋2) |
| Capacitance (F) | 60mF | ±(3%＋5) |
| Frequency (Hz) | 60Hz–40MHz | ±(0.1%＋4) |
| Duty Cycle | — | — |
| Temperature (°C) | -40°C to 1000°C | ±(1.5%＋4) |
| Temperature (°F) | -40°F to 1832°F | ±(2%＋5) |
Features
-
Display Count: 6000
-
Display Interface: Single LCD
-
Measurement Sampling Rate: 3 times/s
-
Analog Bar Sampling Rate: —
-
Analog Bar Graph: —
-
True RMS Measurement
-
AC Voltage Frequency Response: 45Hz–1kHz
-
AC Current Frequency Response: 45Hz–1kHz
-
3-Phase Motor Sequence Test (up to 600V)
-
Diode Test Voltage: 3V
-
Auto/Manual Range
-
Continuity Buzzer
-
Low Battery Indication
-
Data Hold / Auto Power Off
-
MAX / MIN Recording
-
Function Selection Dial
-
Flashlight & Auto Backlight
General Characteristics
-
Power Supply: 9V battery
-
LCD Size: 66 × 51 mm
-
Color: Red & Grey
-
Net Weight: 437g
-
Dimensions: 195 × 95 × 58 mm
-
Standard Accessories: Test probes, battery, carrying bag, point contact temperature probe
-
Packing: Gift box, English manual
-
Carton Quantity: 6 pcs
-
Carton Size: 580 × 375 × 215 mm
-
Carton Gross Weight: 7.2 kg
