Name: UT171C Series Industrial True RMS Digital Multimeter
Brand: Electronics Hub
SKU: 15891
Availability: InStock
Rating: 5 (1 reviews)

Features of UT171C Series Industrial True RMS Digital Multimeter

Certifications: CE, UKCA, cETLus

● AC+DC measurement
● Peak hold
● Rechargeable battery

● VFC low-pass filtering
● USB/Bluetooth communication

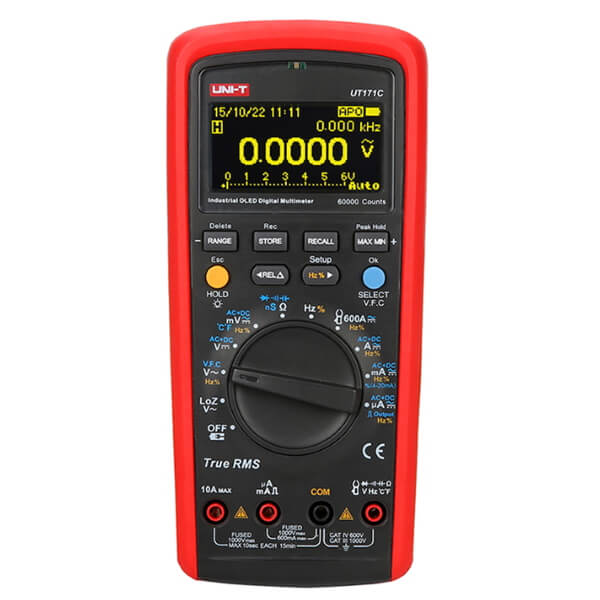

UT171C – Industrial True RMS Digital Multimeter

Specifications

Function	Range	Accuracy
DC Voltage (V)	1000V	±(0.025%＋5)
AC Voltage (V)	1000V	±(0.4%＋40)
DC Current (A)	10A	±(0.15%＋2)
AC Current (A)	10A	±(0.75%＋5)
Resistance (Ω)	60MΩ	±(0.05%＋2)
Admittance (nS)	60nS	±(1%＋10)
Capacitance (F)	60mF	±(2.5%＋40)
Frequency (Hz)	10Hz–10MHz	±(0.01%＋5)
Temperature (°C)	-40°C to 1000°C	±(1%＋30)
Temperature (°F)	-40°F to 1832°F	±(1.5%＋50)

Features

Display Count: 60000
Auto/Manual Range
True RMS
Bandwidth: 100kHz
4–20mA Loop Test (0–100%)
LoZ ACV (Around 3kΩ)
Diode Test (Around 3V)
Continuity Buzzer
Duty Cycle: 0.1%–99.9%
NCV / Data Hold / MAX / MIN
Relative Mode
Data Storage: 9999 records
Display Type: OLED
Analog Bar Graph: 31 segments
LCD Backlight
Mis-Plug Alarm
Low Battery Indication
Auto Power Off
Input Protection
Input Impedance (DCV): ~1GΩ

General Characteristics

Power Supply: 7.4V 2000mAh Li-ion battery
Display Size: 70.6 × 35.3 mm
Color: Red & Grey
Net Weight: 384g
Dimensions: 206 × 95 × 55 mm
Standard Accessories: Batteries, test leads, point contact temperature probe, USB interface cable, power adaptor, PC software CD
Packing: Gift box, carrying bag, English manual
Carton Quantity: 5 pcs
Carton Size: 390 × 310 × 205 mm (0.55 CBM per carton)
Carton Gross Weight: 5.6 kg
Optional Accessory: Bluetooth adaptor (UT-D07)
