Features of UT161 Series 1000V True RMS Digital Multimeter
Certifications: CE, UKCA, cETLus
● True RMS
● Data hold/backlight
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)

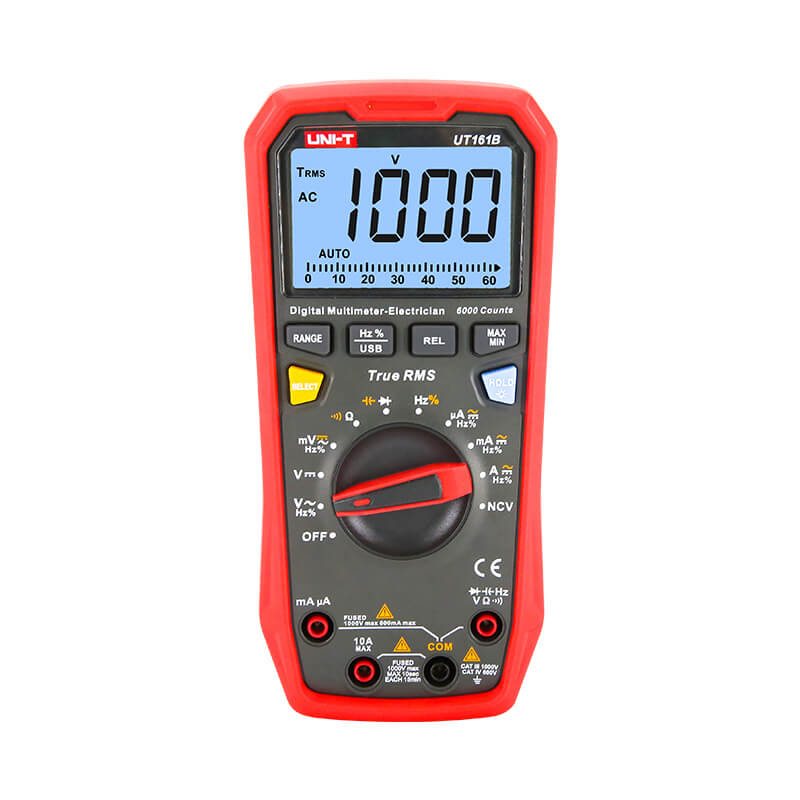

UT161B – 1000V True RMS Digital Multimeter
Specifications
| Parameter | Range | Accuracy |
|---|---|---|
| AC Voltage (V) | 1000V | ±(1%＋3) |
| DC Voltage (V) | 1000V | ±(0.5%＋3) |
| AC Current (A) | 10A | ±(1.2%＋5) |
| DC Current (A) | 10A | ±(1%＋2) |
| Resistance (Ω) | 60MΩ | ±(1%＋2) |
| Capacitance (F) | 60mF | ±(3%＋5) |
| Frequency (Hz) | 10MHz | ±(0.1%＋4) |
| Duty Cycle (%) | 0.1%–99.9% | ±(2%＋5) |
| Display Count | – | 6000 |
| Bandwidth (Hz) | – | 40Hz–500Hz |
| Analog Bar | – | 31 segments |
General Characteristics
-
Power Supply: 1.5V battery (R03) × 4
-
Net Weight: 350g
-
Dimensions: 190 × 90 × 50 mm
-
Standard Accessories: Battery, gold-plated test leads, USB cable, English manual
-
Packing: Gift box, cloth bag
-
Carton Quantity: 20 pcs
-
Carton Size: 480 × 370 × 325 mm
-
Carton Gross Weight: 17.8 kg
-
Optional Accessory: Bluetooth/APP
