Description

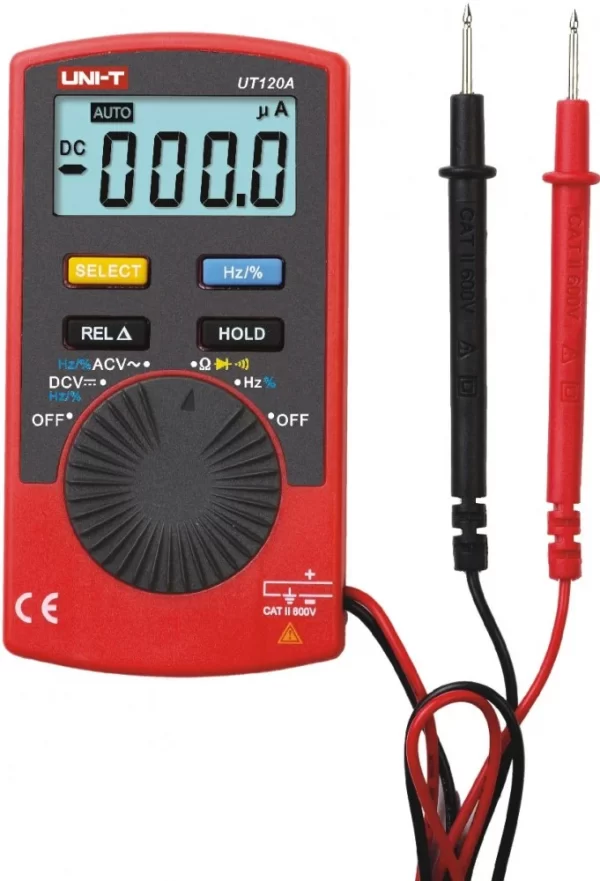

UT120A pocket size digital multimeter is designed for DIYers and electronics engineers to troubleshoot electronics systems development and electronics circuits. It is a simple and portable multimeter for every electronics engineer.
Applications of UT120A
It can be used to troubleshoot electronics systems development and electronics circuits.
Features of UT120A
2. Auto power off
2. Auto range
3. 4000 display count
4. Data hold and relative mode1
Specifications |
Range |
UT120A |
| DC voltage (V) | 600V | ±(0.8%+1) |
| AC voltage (V) | 600V | ±(1.2%+3) |
| Resistance (Ω) | 40MΩ | ±(1%+2) |
| Frequency (Hz) | 100kHz | ±(0.5%+3) |
Secondary Features |
||
| Display count | 4000 | |
| Auto range | √ | |
| Duty cycle | 0.1%~99.9% | √ |
| Diode | √ | |
| Auto power off | Around 30 minutes | √ |
| Continuity buzzer | √ | |
| Low battery indication | ≤2.4V | √ |
| Data hold | √ | |
| Relative mode | √ | |
| Input impedance for DCV | Around 10MΩ | √ |
General Characteristics |
||
| Power | 3V battery (CR2032) | |
| Display | 43mm x 22mm | |
| Product color | Red and grey | |
| Product net weight | 76g | |
| Product size | 110mm x 58.2mm x 10.8mm | |
| Standard accessories | Battery, carrying case | |
| Standard individual packing | Blister, English manual | |
| Standard quantity per carton | 100pcs | |
| Standard carton measurement | 750mm x 275mm x 490mm (0.1CBM per export carton) | |
| Standard carton gross weight | 20kg | |
Package Includes:
- 1 x UT120A Pocket Size Digital Multimeter
