Description:
UPO3000E series ultra-phosphor oscilloscopes can realize functions of deep storage, high waveform capture rate, real-time waveform recording and playback, multi-level intensity grading display, and more with UNI-T special 3D technology. Some competitive features are, 250MHz/150MHz bandwidth, up to 2.5GS/s real-time sampling rate, 2/4 channels, 70Mpts standard memory depth, higher than 200,000wfms/s waveform capture rate, more than 100,000 waveforms continuous recording and analysis, up to 256 levels intensity grading display. They can be operated with a standard 25MHz dual-channel function/arbitrary waveform generator or an optional digital multimeter module (UT-M12).The oscilloscopes have multiple trigger and Bus decoding functions, including edge, pulse width, slope, video, runt, windows, Nth edge, delay, overtime, code, USB, RS232/UART, I2C, SPI, CAN, LIN, and FlexRay triggers, duration, setup/hold and more. They feature low noise and 1mV/div Min vertical stall.
Applications:
Serial data analysis, jitter analysis, data storage device testing, electric vehicle and electronics equipment design, evaluating frequency response of sound equipment, troubleshooting automotive engines, electronics technician repair and maintenance.
Features:
1. Channels: 2/4; Bandwidth: 150M/250MHz2. Sampling rate: 2.5GS/s; Memory depth: 70Mpts
3. Waveform capture rate: 200,000wfms/s
4. Independent triggering
5. 256-level intensity grading display
6. Multiple triggering and decoding available
7. 8 inches TFT LCD, WVGA (800×480)
8. Up to 100,000 frames waveform record
9. Interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail), VGA
Applications: The oscilloscopes aim at markets of communications, semiconductors, computers, aerospace, national defense, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, R&D/education, and more.
Technical specification:
| Specifications | |

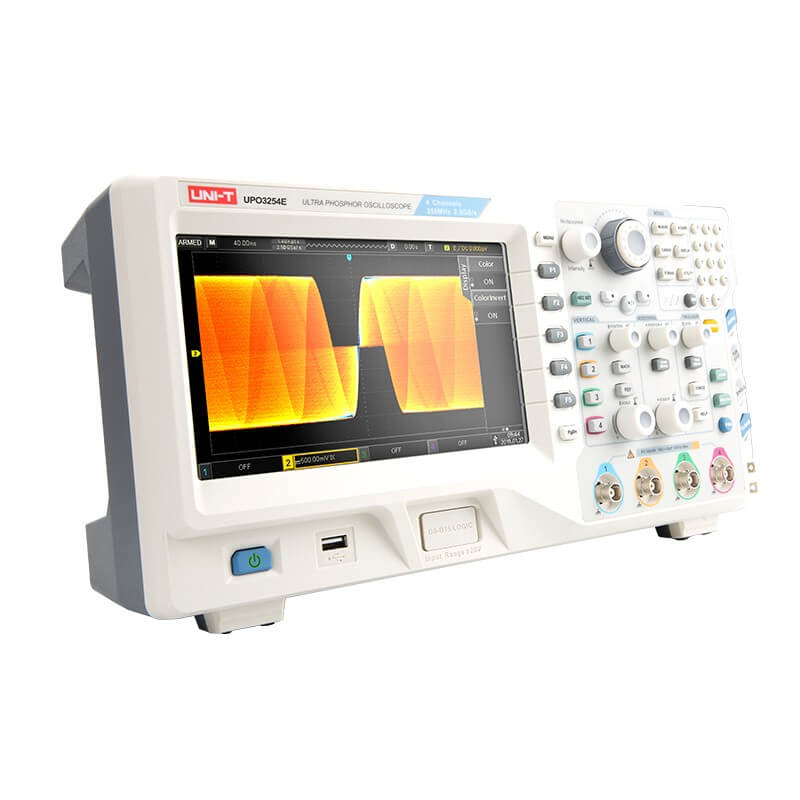

| Model | UPO3254E |
| Analog bandwidth | 250MHz |
| Channels | 4 |
| Sampling rate | 2.5GS/s (Single channel), 1.25GS/s (Dual channels/Four channels) |
| Memory depth | Each channel: auto, 7kpts, 70kpts, 700kpts, 7Mpts, 70Mpts selectable (open the 4 channels at the same time) |
| Waveform capture rate | 200,000wfms/s |
| Time base scale (s/div) | 2ns/div~40s/div (Real-time sampling rate, memory depth display)【Step by 1-2-4 stall】 |
| Input impedance | (1MΩ±1%) II (18pF±3pF) |
| Vertical scale (V/div) | 1mV/div~20V/div (1MΩ) |
| DC gain accuracy | <5mV: ±3%, ≥5mV: ±2>#/td### |
| Waveform record | Single channel: 100,000 frames; Adjustable interval: 1.00ms~1000s |
| Trigger types | Edge, Runt, Window, Nth Edge, Delay, Overtime, Duration, Setup/Hold, Pulse Width, Slope, Video, Code; RS232/UART, I2C, SPI, USB, CAN, LIN, FlexRay |
| Bus decode | RS232/UART, I2C, SPI, USB, CAN, LIN, FlexRay |
| Waveform operations | A+B, A-B, AxB, A/B, FFT, editable advanced and logical operations |
| Auto measurements | Max, Min, High, Low, Ampl, Pk-Pk, Middle, Mean, CycMean, RMS, CycRMS, Period, Freq, Rise, Fall, Rise Delay, Fall Delay, +Width, -Width, FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF, +Duty, -Duty, Area, CycArea, OverSht, PreSht, Phase, 34 parameters in total |
| Measurement display | 5 types |
| Measurement statistics | Average, Max, Min, standard deviation and number of measurements |
| Frequency counter | 6 bits |
| Interfaces | Standard: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail), VGA Optional: AWG |
| General Characterisitics | |
| Power | 100V~240V ACrms, 50Hz/60Hz |
| Display | 8-inch TFT LCD, WVGA (800 x 480) |
| Product color | White and grey |
| Product net weight | 4.2kg |
| Product size | 370mm x 195mm x 125mm |
| Standard accessories | Probe x 2/4 (1x, 10x switchable), power cord, USB interface cable |
| Standard individual packing | Carton box |
