Description:

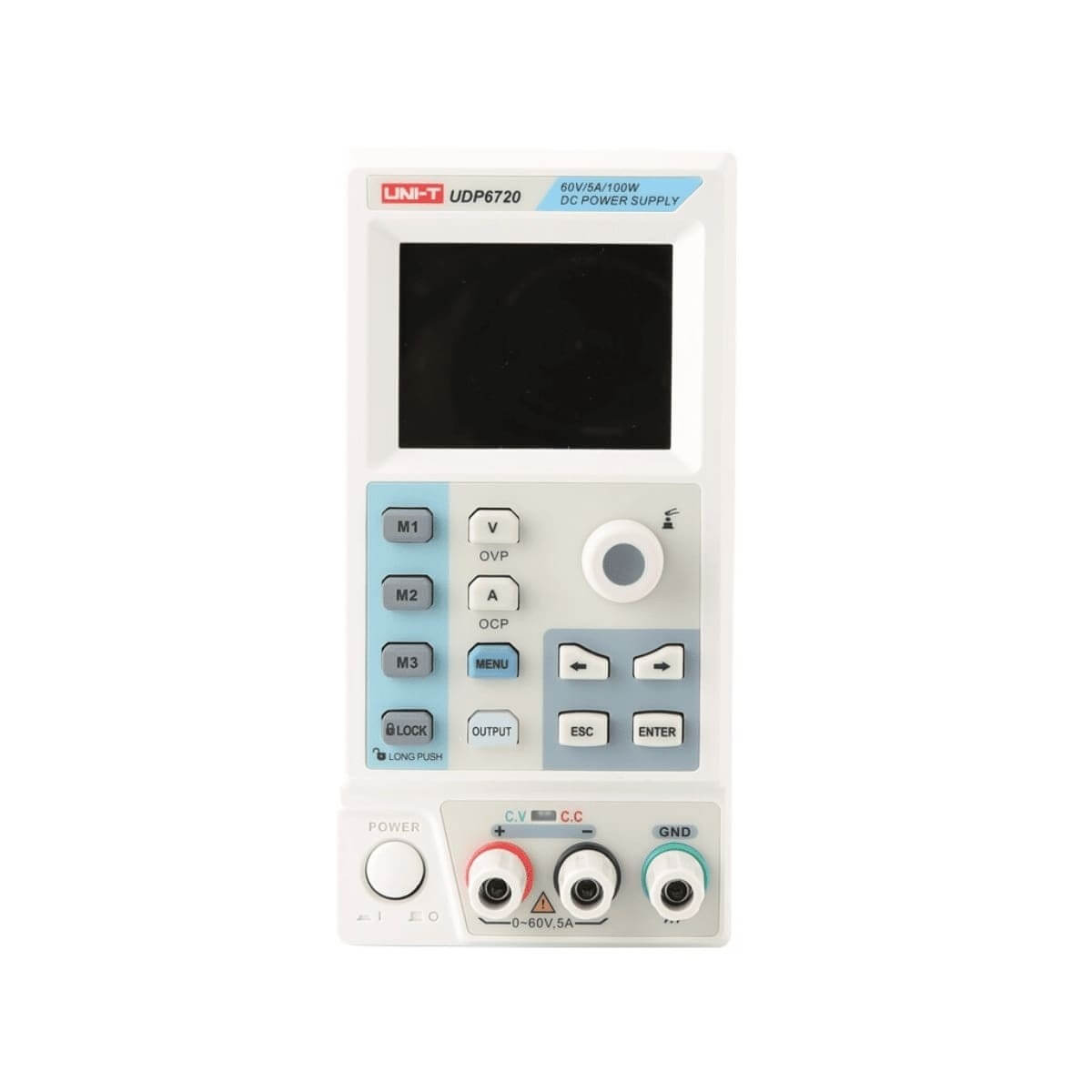

The UNI-T UDP6720 is a single channel 60V, 5A, 100W power supply, featuring a resolution of 10mV/1mA with a maximum of 600 memory presets, making it quite accurate with a large output range. The full color 2.8″ TFT LCD display is able to show users a large number of values without need for repeated reading and recording, while also providing interaction with many adjustable parameters.
It features a RS232 serial interface, remote compensation terminals and supports SCPI protocol communication. The over voltage, over current and over temperature protection functions guarantee high reliability. Furthermore, the integrated programmable list and delayer functions (with 48 sets of editable points) enable various automatic operations.
Models:
The models differ in total power, voltage range and current range.
-
Total Power: 100 W
-
Voltage Range: 0 ~ 60 V
-
Current Range: 0 ~ 5 A
Specifications:
Outputs 1 channel Output switch YesResolution 10 mV / 1 mA Ripple <2.0 mV RMS / <5.0 mA RMS Protection OVP, OCP, OTP Interfaces RS232 serial interface, remote compensation (SCPI protocol) Display 2.8″ full color TFT LCD Dimensions 87 x 174 x 255 mm Weight 2.5 kg
