Description:

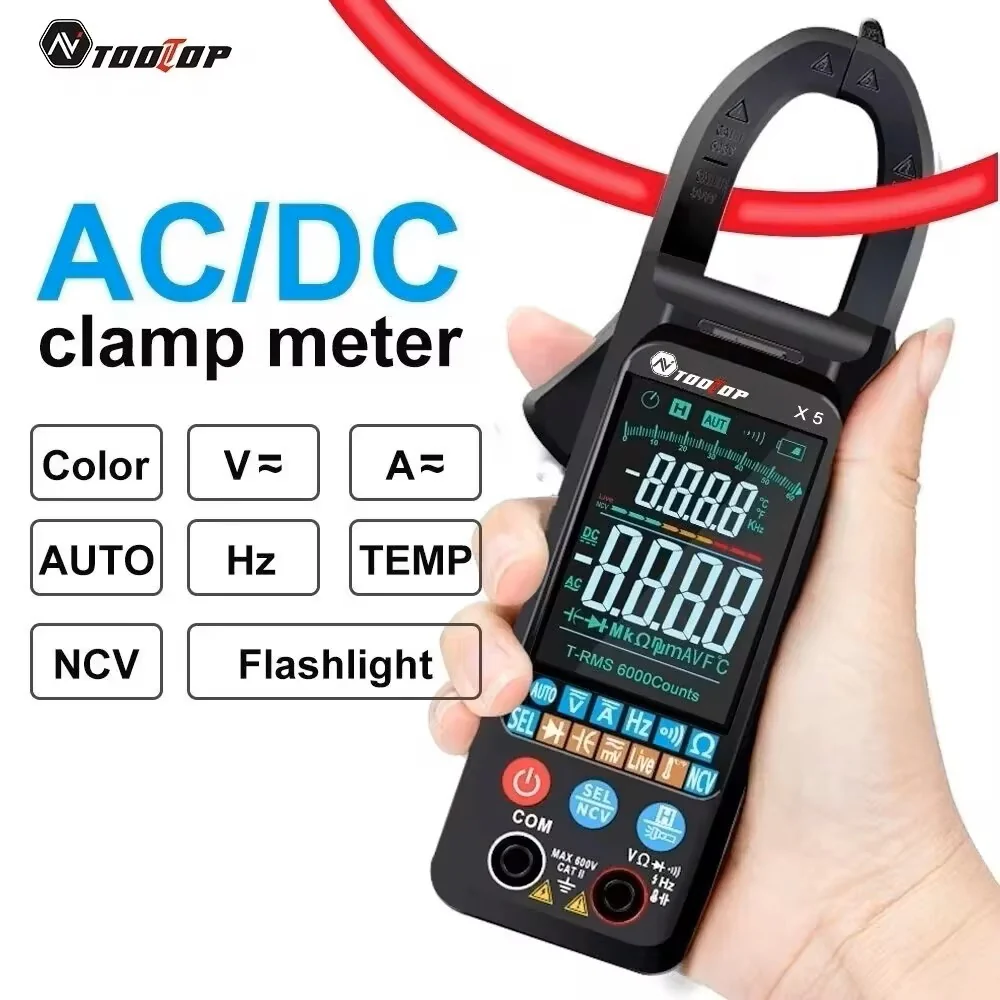

The TOOLTOP X5 is an affordable, automatic AC/DC clamp meter designed for measuring a wide range of electrical parameters. It is a versatile tool suitable for hobbyists, homeowners, and technicians performing basic electrical work and appliance repair. The “Auto” feature automatically identifies the measurement type and range, simplifying the process for the user.
Key features:
- Automatic functions: The meter features automatic measurement, automatic identification of the input signal, and automatic range selection, which makes it easy to use for beginners.
- True RMS measurement: The X5 can take accurate True RMS (Root Mean Square) measurements of AC current and voltage. This is important for getting correct readings on non-sinusoidal, or distorted, waveforms.
- Non-contact voltage (NCV) detection: This safety feature allows the user to detect the presence of live voltage in a wire without making physical contact.
- Live wire detection: The X5 can also identify which wire in a circuit is the “live” wire.
- Multi-function display: The LCD screen has a three-line display and a bargraph feature, which provides clear and easy-to-read data.
- Built-in flashlight: A flashlight is included for convenience when working in dark or dimly lit areas.
- Automatic shutdown: To conserve battery life, the meter automatically turns off after 15 minutes of inactivity.
Measurement capabilities:
- AC/DC current: Up to 400A.
- AC/DC voltage: Up to 600V.
- Resistance: Up to 600MΩ.
- Capacitance: Up to 60.00mF.
- Frequency: Up to 1000Hz.
- Temperature: Measures from -40°C to 1000°C (-40°F to 1832°F) using the included K-type thermocouple.
- Diode and continuity testing: The meter can check diodes and test for circuit continuity with an audible buzzer.
Package contents:
- TOOLTOP X5 Clamp Meter
- Test leads
- K-type thermocouple for temperature measurement
- User manual
Considerations:
- While an affordable and versatile tool for basic electrical work, the TOOLTOP X5 may not offer the same level of accuracy, durability, or safety ratings as higher-end, professional-grade brands.
- The exact specifications can vary depending on the supplier and manufacturing batch, but the figures above are commonly listed.
