Description:

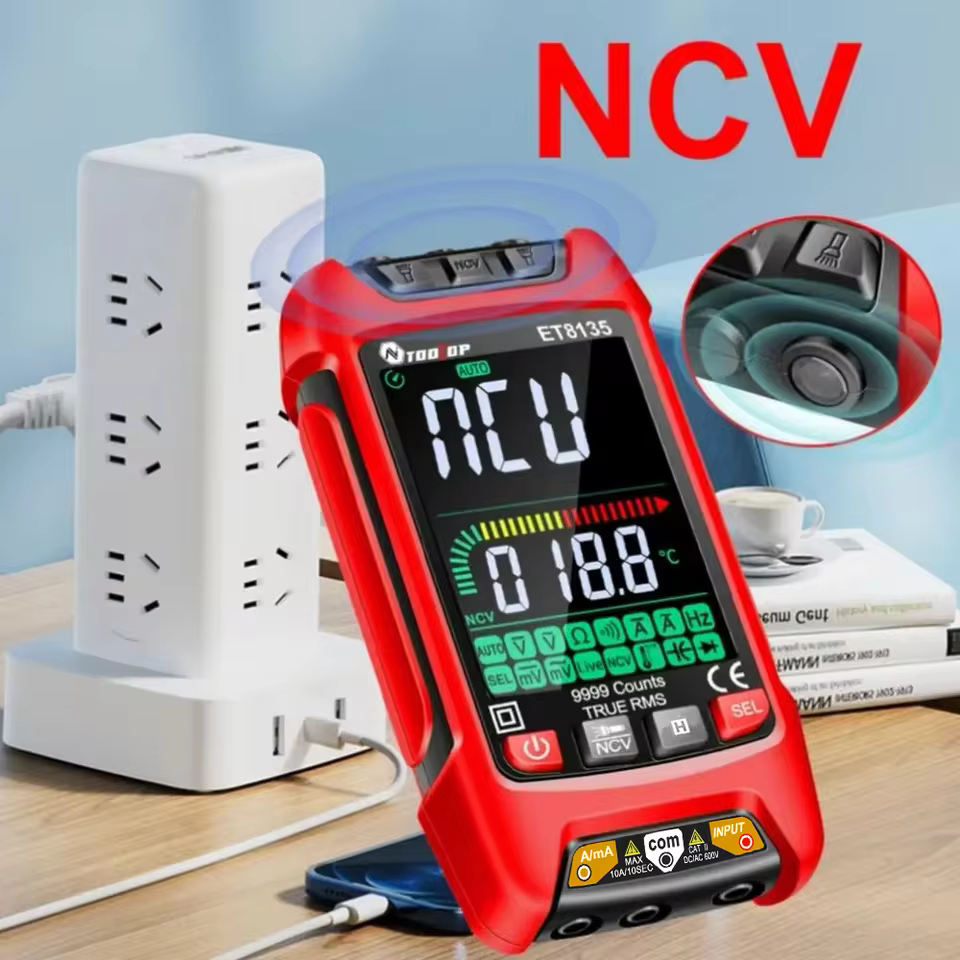

The TOOLTOP ET8135 is a budget-friendly digital multimeter with a vibrant color display, auto-ranging, True RMS functionality, and a 9999-count display. It is suitable for both professional electricians and DIY enthusiasts due to its versatile measurement capabilities and safety features.
Specifications:
Maximum permissible voltage between the measurement terminal and ground: 1000V DC or 600V AC.
Display: Color LCD
Maximum display value: 9999 digits.
Polarity indication: Automatic, with “_” indicating negative polarity
Over range display: “OL” or “OL”
Sampling rate: approximately 3 times per second
Unit display: Functional with unit indication
Auto power-off time: 15 minutes
Power supply: 2*1.5V AAA batteries(Not included)
Low battery indication: support
Operating temperature: 0°C to 40°C
Storage temperature: -20°C to 60C
AC Current：6000mA/10A
DC Current：6000mA/10A
DC Voltage:600.0mV/9.999V/99.99V/999.9V
AC Voltage:600.0mV/9.999V/99.99V/600.0V
Line on-off Test：＜50Ω
Resistance:999.9Ω/9.999K Ω/99.99K Ω/999.9K Ω/9.999M Ω/99.99MΩ
Diode Test: Open Circuit Voltage: Approximately 2.8V
Capacitor：9.999nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF
NCV：YES
Temperature：-40~1000℃/-40~1832℉
Frequency：100Hz/1000Hz
Backlight: yes
