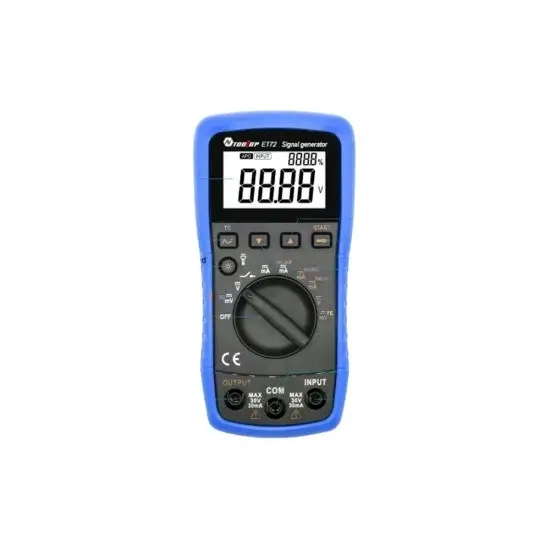

Description:

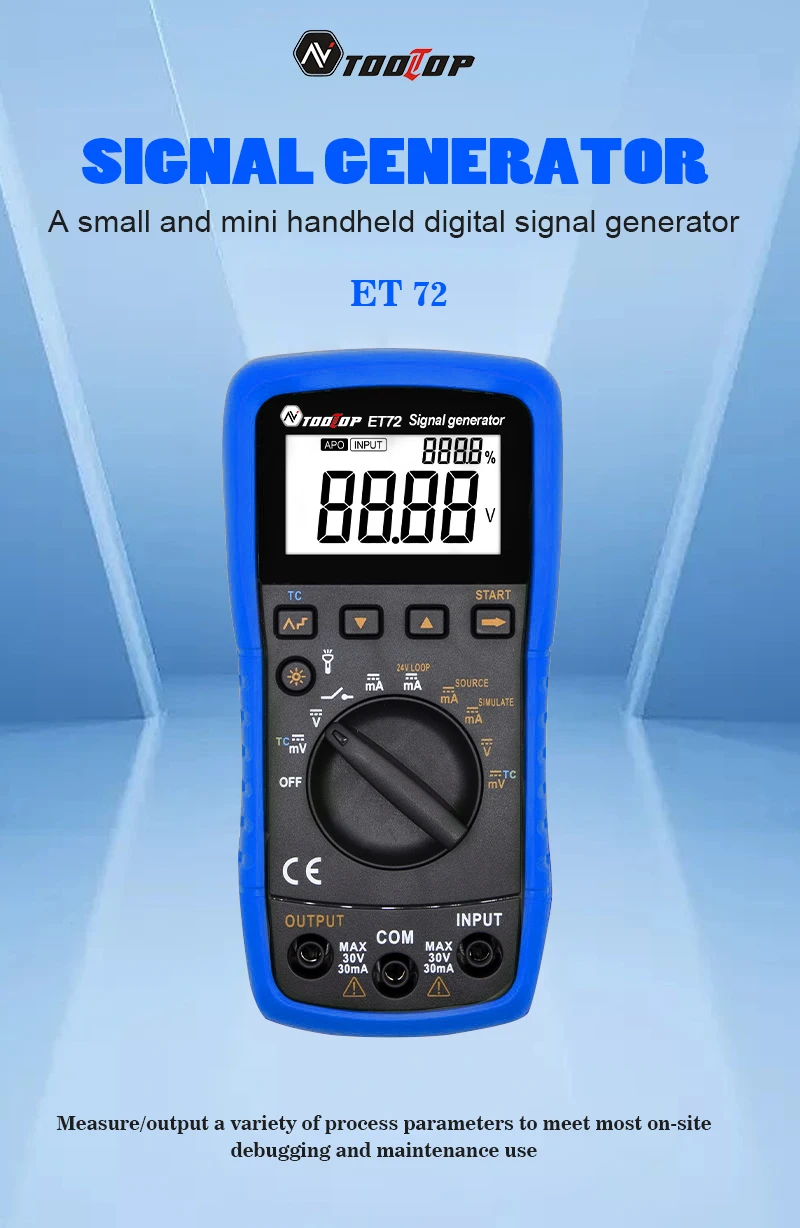

The signal generator is mainly used for debugging industrial field PLC, process instrumentation, electric valves, and similar equipment. Moreover, it is easy to operate thanks to its friendly button-character interface. In addition, the device is small and lightweight, making it convenient to carry for fieldwork. Furthermore, it offers a long standby time, ensuring reliability during extended tasks. Therefore, users can count on it for high precision and consistent performance in various applications.
Features:

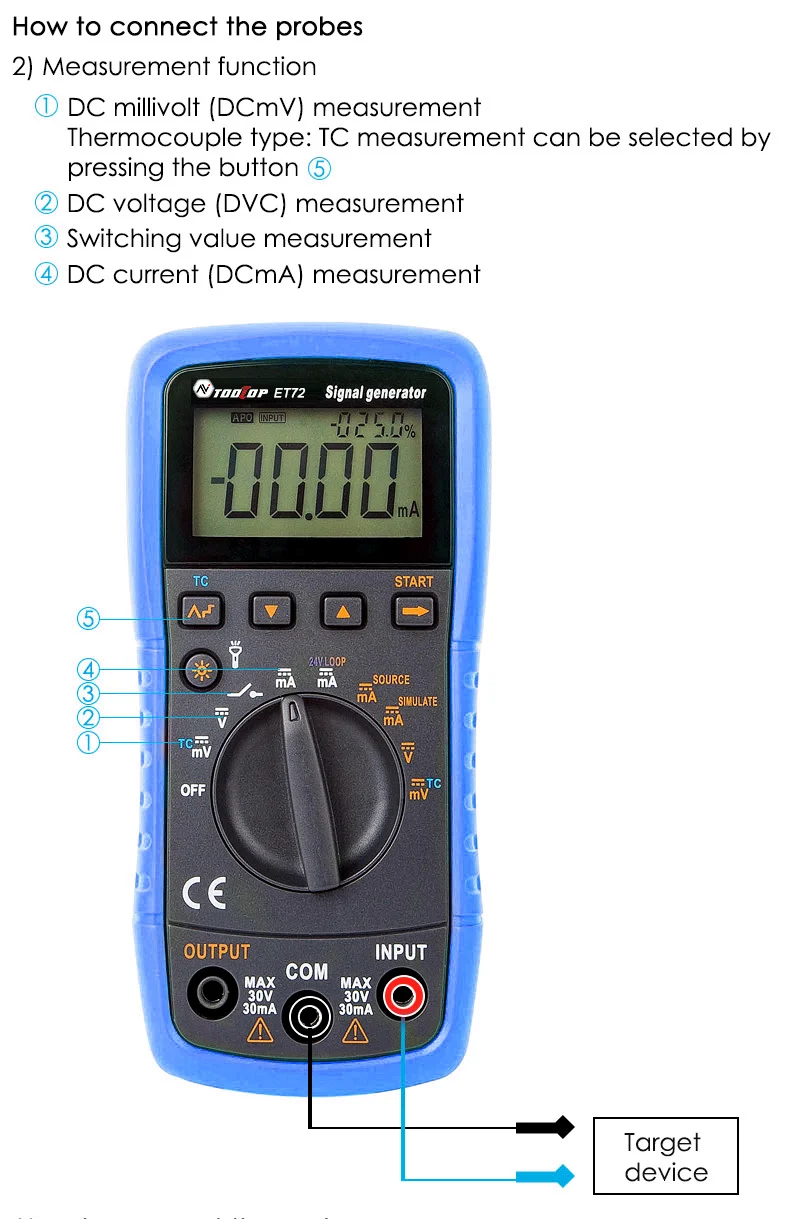

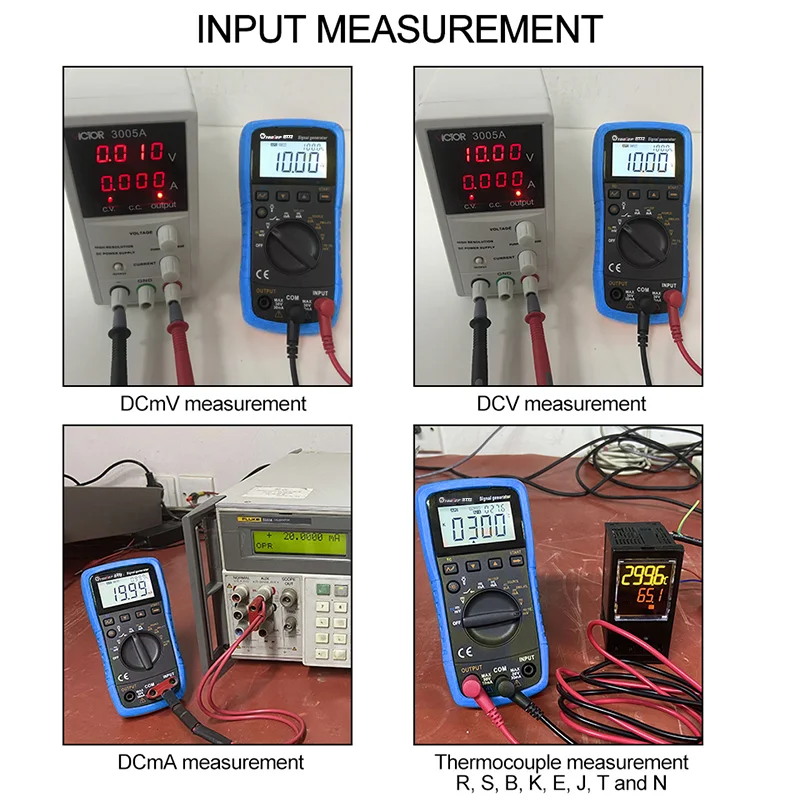

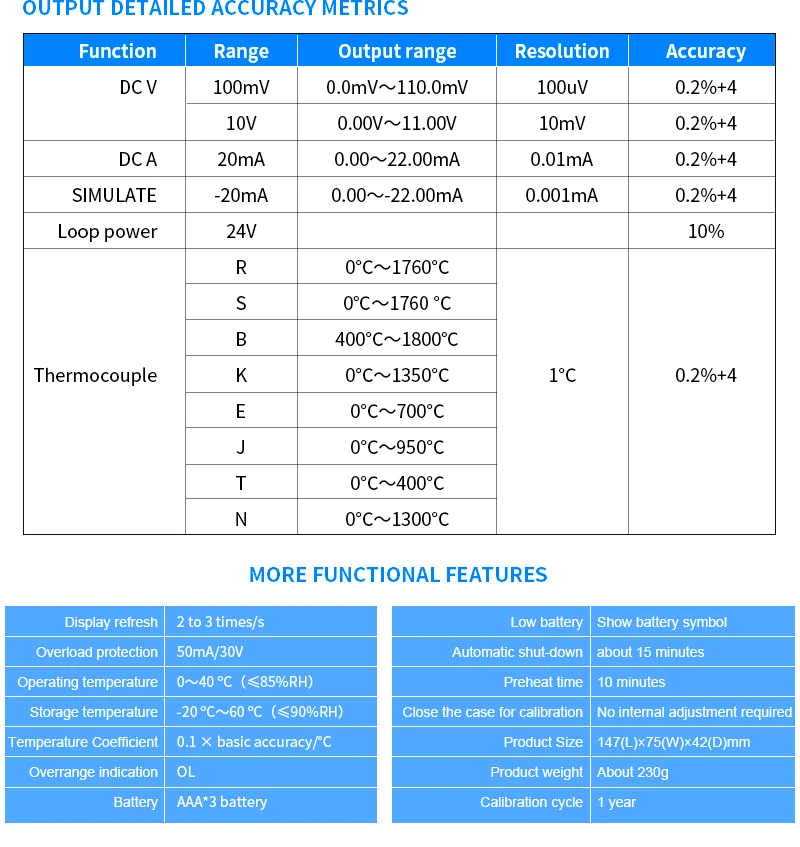

1. 100 mV, 30 V DC voltage measurement, 20 mA DC current measurement, and switching value measurement;

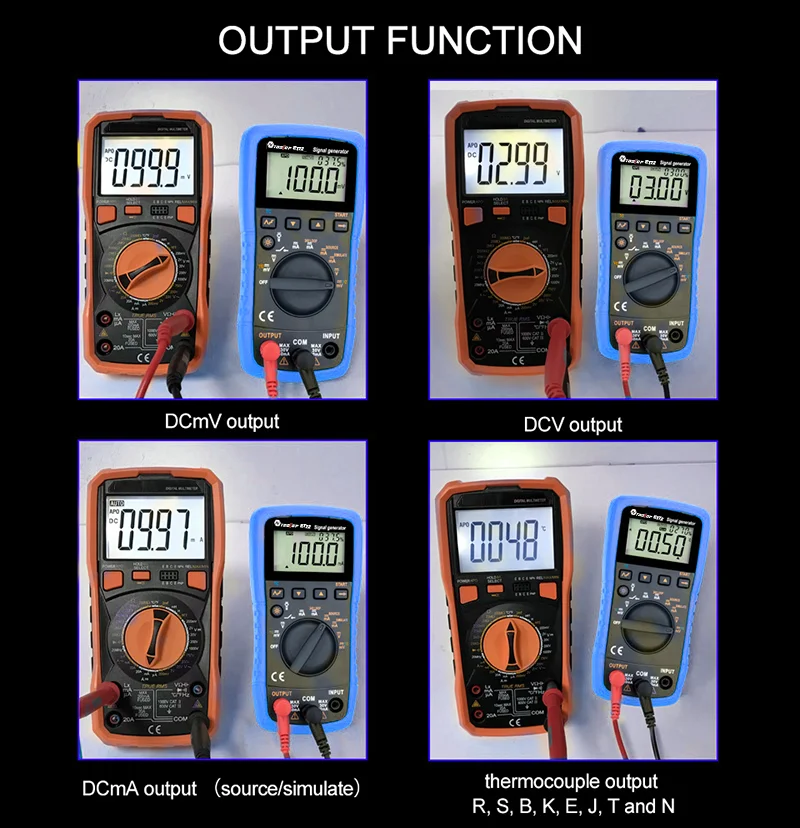

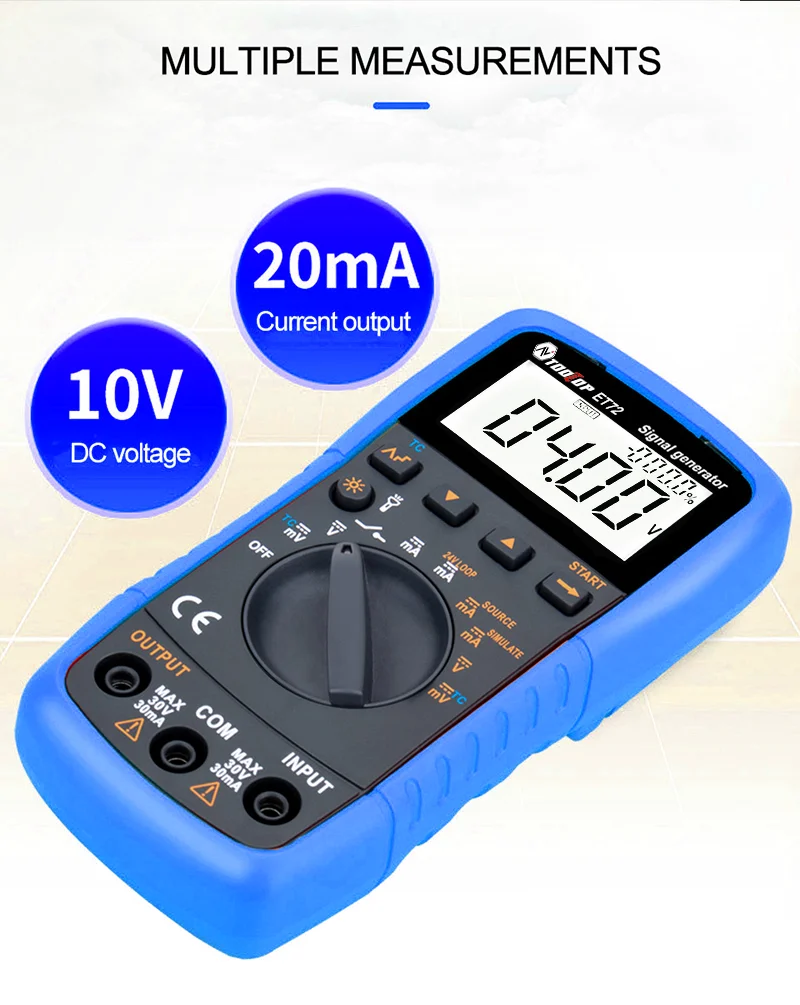

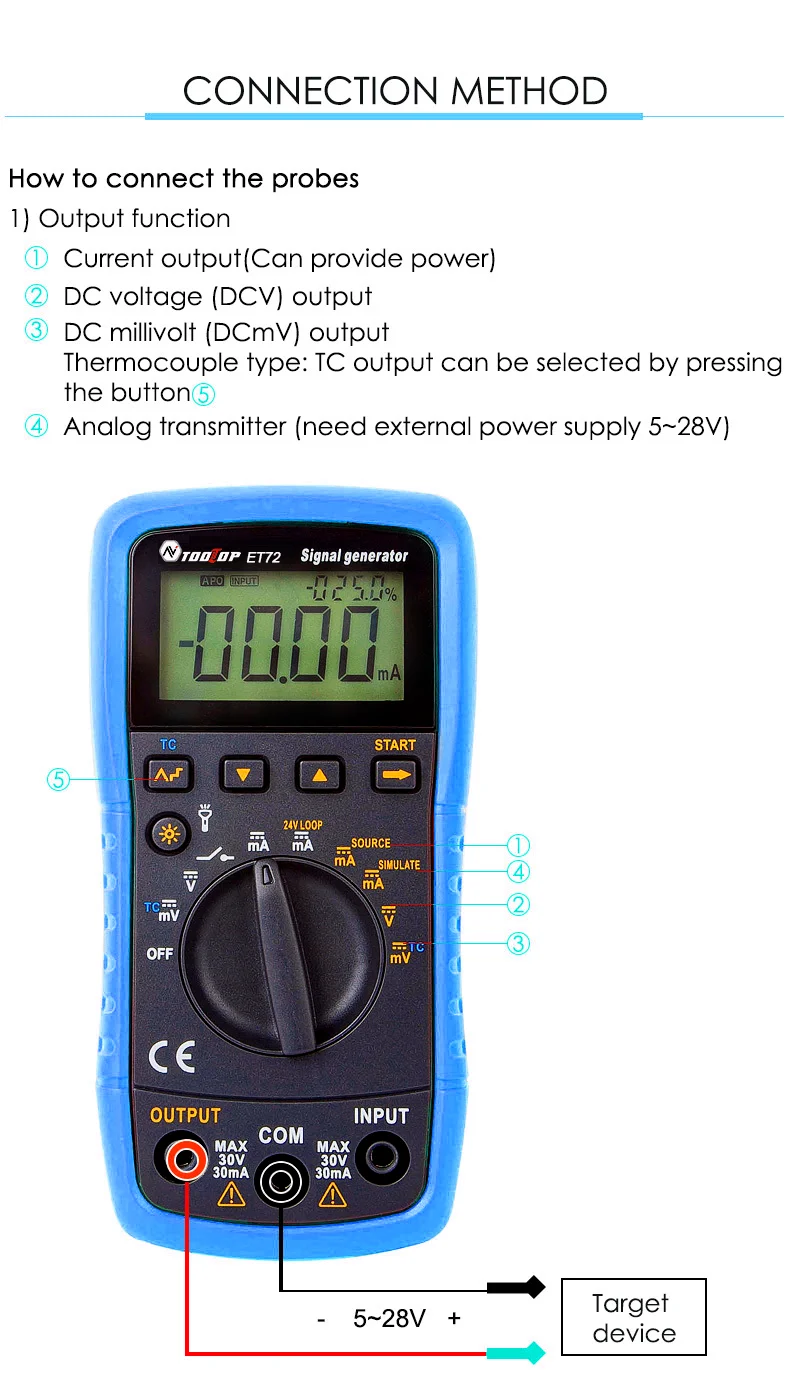

2. 100 mV, 30 V DC voltage output, 20 mA DC current output and SIMULATE output;
3. V, mA manual step output,automatic waveform output;

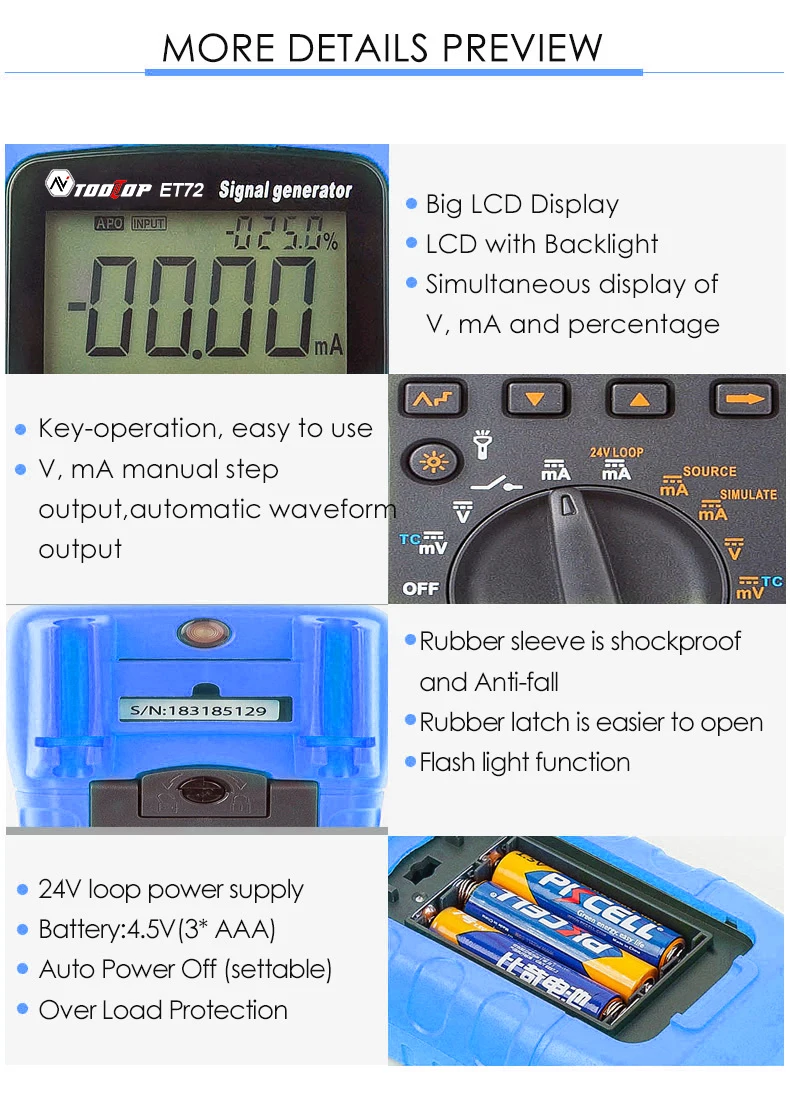

4. Simultaneous display of V, mA and percentage;

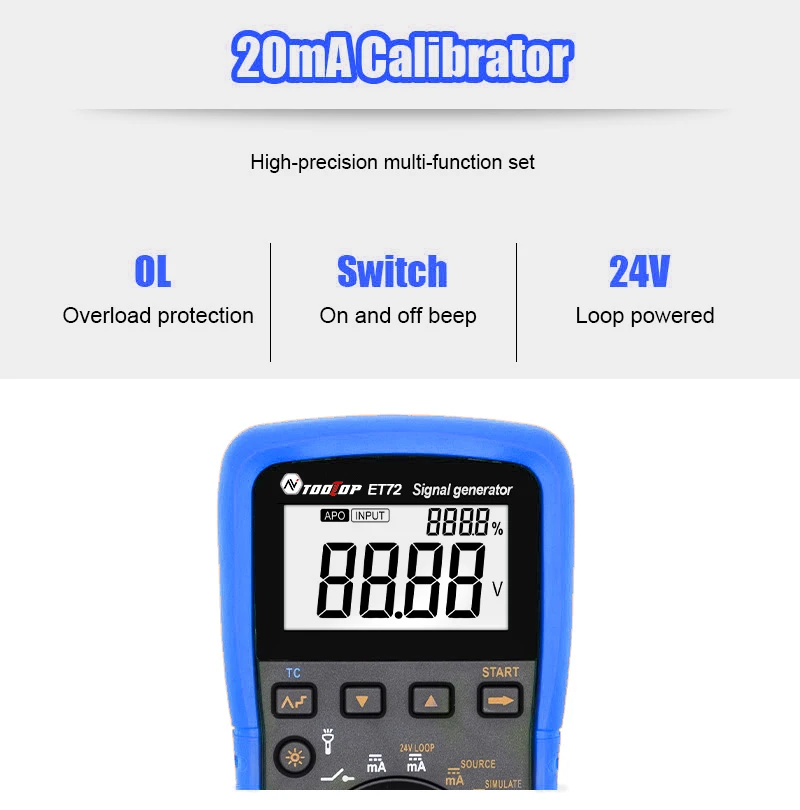

5. Loop detection function: It simultaneously provides the 24 V loop power supply and measures the current.
6. The following functions are added to the thermocouple type:

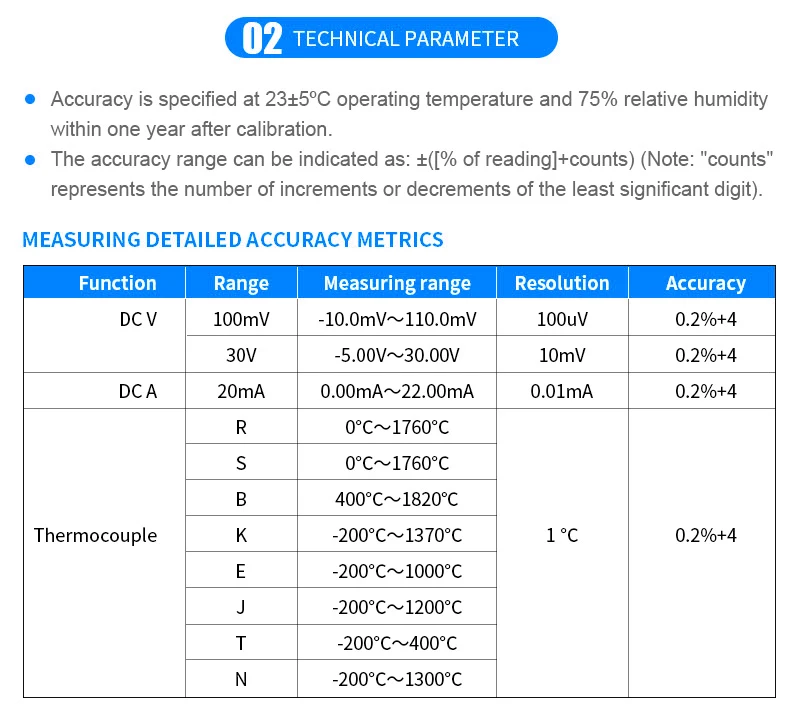

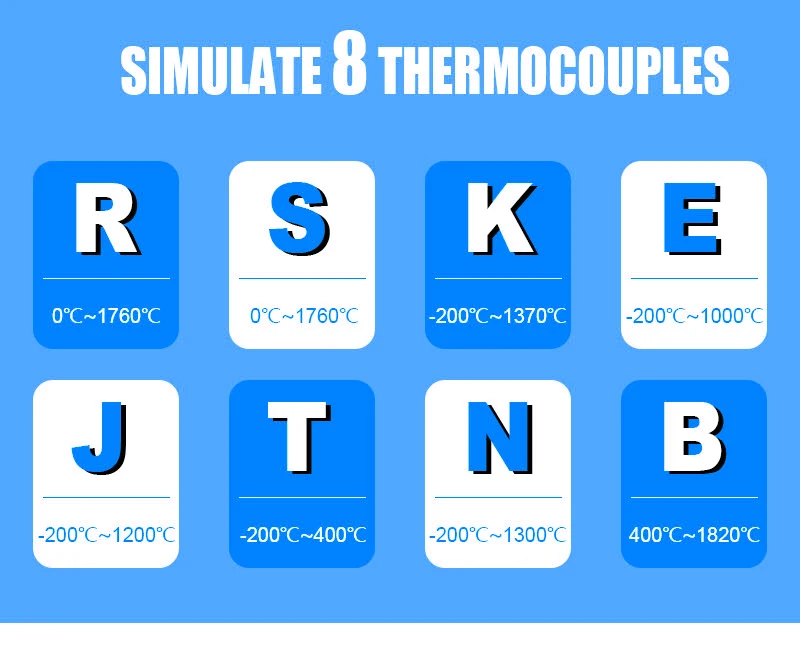

7. Eight scale division (i.e., R, S, B, K, E, J, T and N) thermocouple measurement and output function;
8. Temperature display in Celsius degree and Fahrenheit degree;
9. Automatic and manual cold junction compensation function.

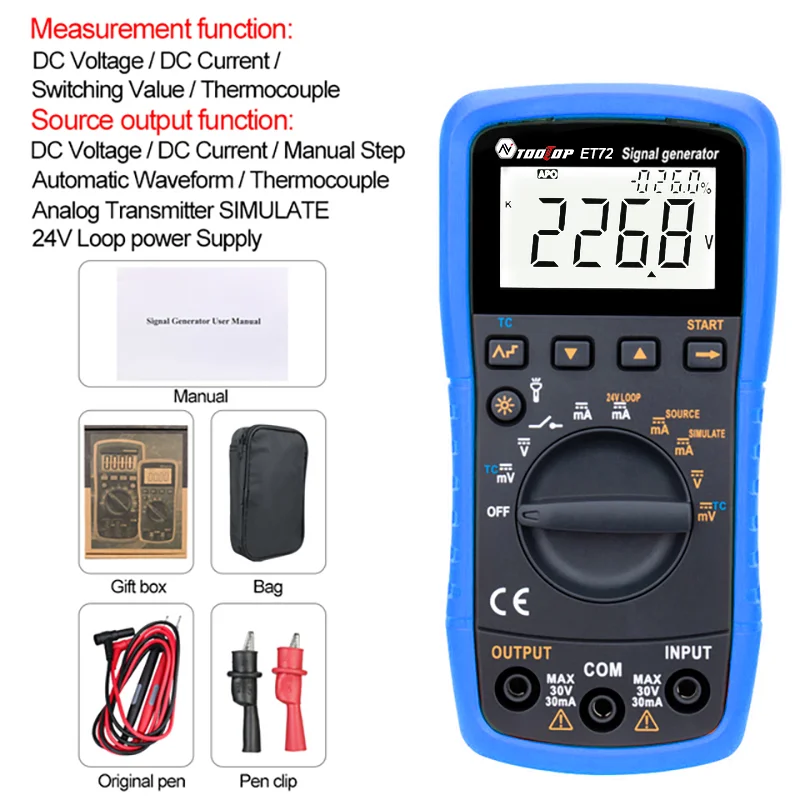

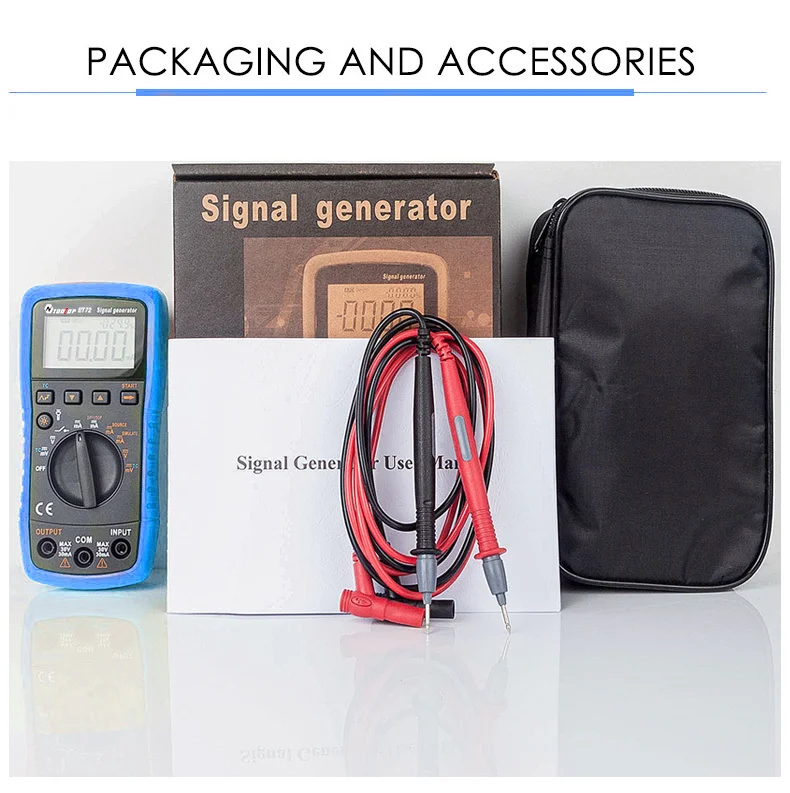

Package List:
1 x Signal generator
1 x Packing box
1 x Tool Bag
1 x one pair of test leads
1 x one pair of crocodile clips
1 x English User Manual
Detail Pictures:
