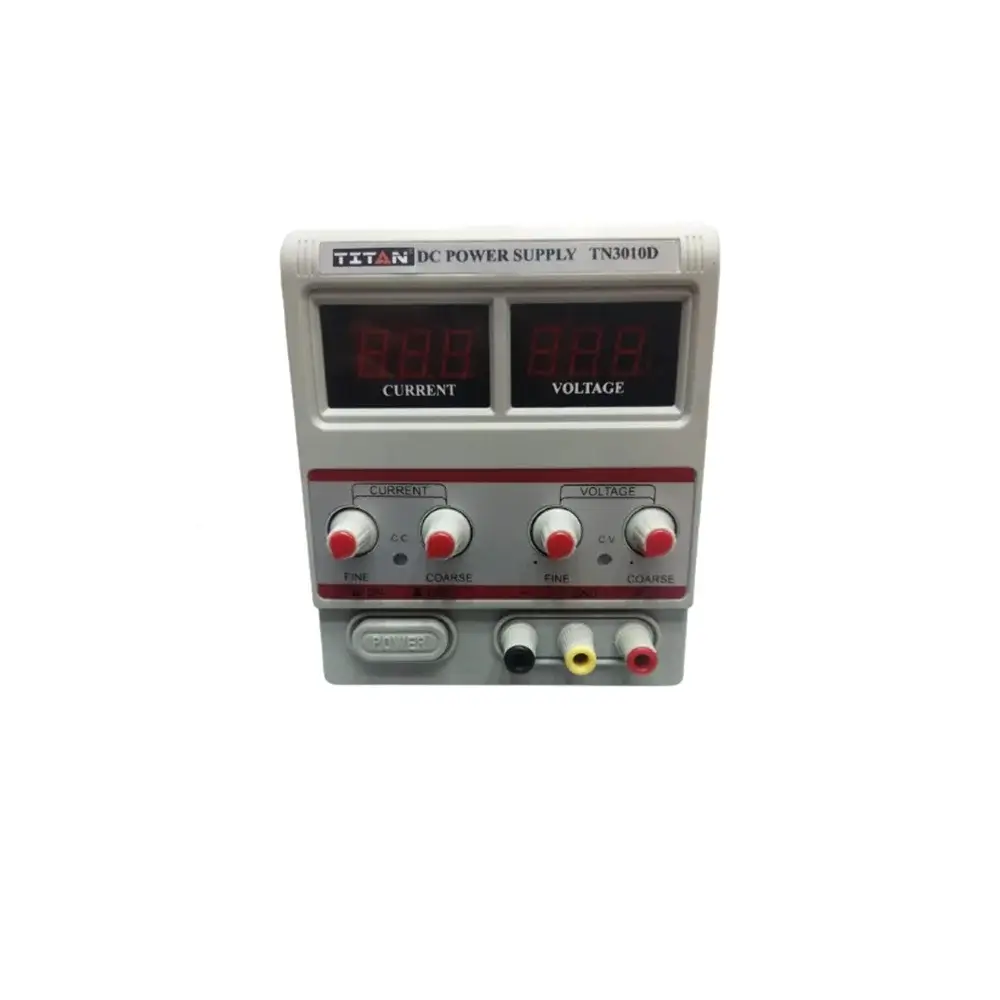

Titan TN-3010D 30V 10A Direct Current Regulated Laboratory Power Supply

Titan TN-3010D or TN3010D variable voltage DC power supply unit now features a Dual LED display with highly accurate LED digital readout. This high voltage dc power supply has maximum output of 30V at 10A. The dc voltage supply has high stabilized output voltage. The Titan power supply is best lab power supply short circuit protection. Overloading and current protection.

Features Of Titan TN3010D Variable Power Supply:

• Output constant current adjustable
• Output constant voltage adjustable
• LED voltage and current display
• Constant voltage and current operation in individual
• Over-current protection
• Current and voltage regulation are smooth and not gears regulation
• Compact Design
• All-Metal Construction
• Dual LED Display
• High Stabilized Output Voltage
• Short Circuit Protection
• Over Loading and Current Protection
• Weight: 6.8kg

Specifications Of TN-3010D Digital Variable DC Power Supply:

1. Supply power: AC 220-240V, 50Hz/60Hz.
2. Working Temperature: -10°C ~ 40 °C
3. Relative Humidity: ‹ 90%
4. Storage Conditions: -10°C ~ 40 °C
5. Relative Humidity: ‹ 80%
6. Voltage Stability: ≤0.01% +2mV
7. Load Stability: ≤ 0.01% +2mV
8. Recovery Time: ≤100µS
9. Ripple Noise: ≤1 MVRMS(RMS)
10. Temperature Coefficient: ≤ 200PPM/°C
11. Power Stability: 0.1% + 3mA
12. Load Stability: 0.2% + 3mA
13. Ripple Noise: ≤2mAr

Package Includes:

• 1 x Titan TN-3010D Variable Voltage DC Power Supply
• 1 x Power Cable
• 1 x Probes
