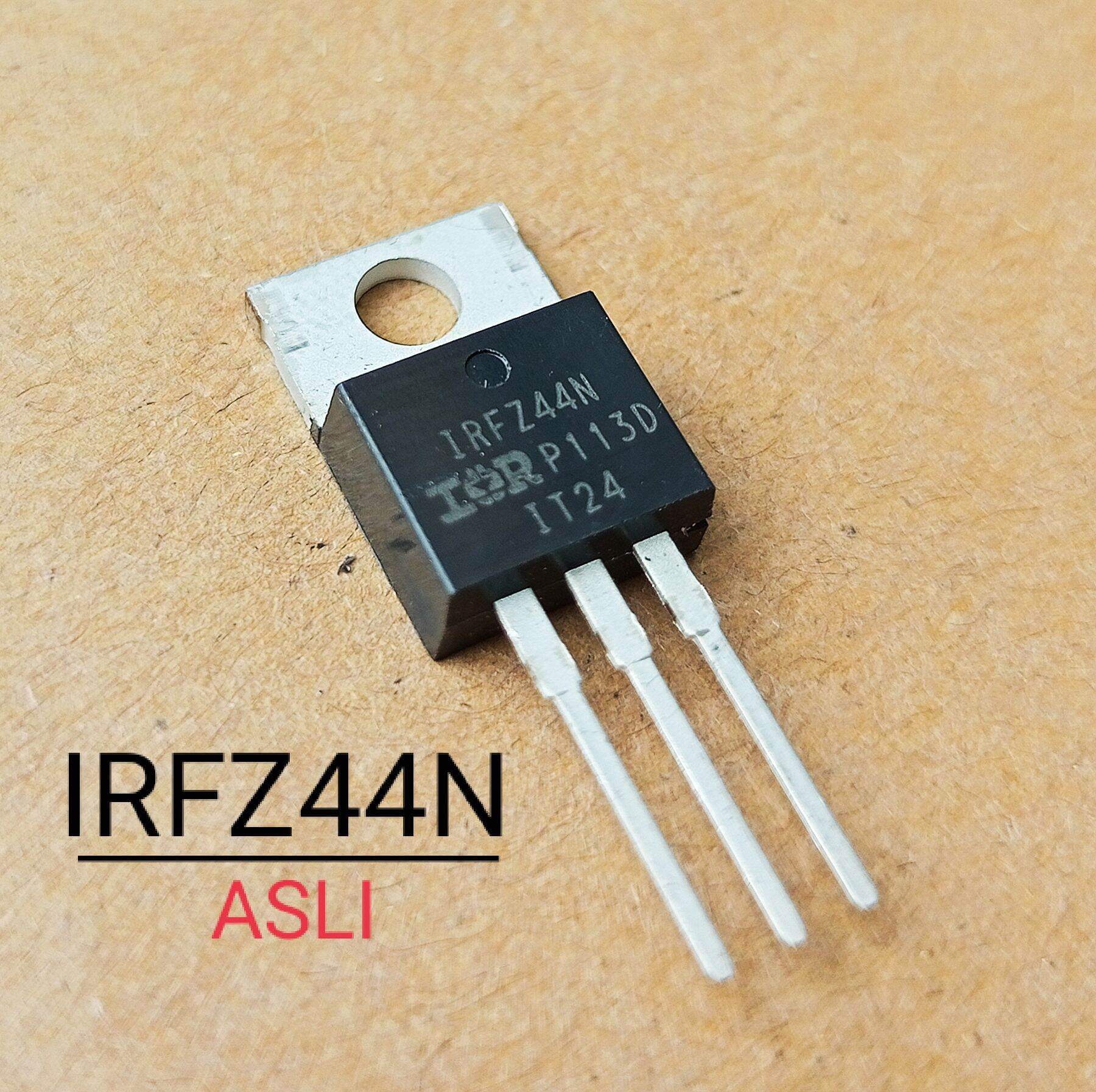

Irfz44n Power Mosfet Refurb

Desccription:

The IRFZ44N is a N-channel MOSFET with a high drain current of 49A and low Rds value of 17.5 mΩ. It also has a low threshold voltage of 4V at which the MOSFET will start conducting. Hence it is commonly used with microcontrollers to drive with 5V. However a driver circuit is needed if the MOSFET has to be switched in completely.

Features and Specifications

• Small signal N-Channel MOSFET
• Continuous Drain Current (ID) is 49A at 25°C
• Pulsed Drain Current (ID-peak) is 160A
• Minimum Gate threshold voltage (VGS-th) is 2V
• Maximum Gate threshold voltage (VGS-th) is 4V
• Gate-Source Voltage is (VGS) is ±20V (max)
• Maximum Drain-Source Voltage (VDS) is 55V
• Rise time and fall time is about 60ns and 45ns respectively.
• It is commonly used with Arduino, due to its low threshold current.
• Available in To-220 package

Package Includes:4

•  1x irfz44n MOSFET

Note:

1. Product Images are shown for illustrative purposes only and may differ from the actual product.
2. For Technical Specifications about the IC go through the Datasheet in the Attachment section.
