HT 6022BE 20MHZ PC SCOPE In Pakistan

Features:

• An excellent industrial design-the same anodized aluminum casing as iPod, Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.
• USB2.0 interface, no external power source required, easy to use.
• Be suitable for notebook computer, product line maintenance, be used easily on business.
• Operating System: Windows 8, Windows NT, Windows 2000, Windows XP, VISTA.
• 23 measurement functions, PASS/FAIL Check, be suitable for technical application.
• Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
• Save waveform in the following: text file, jpg/BMP graphic file, MS excel/word file.
• One computer can connect many DSO, and extend channels easily.
• Labview\VB\VC Second Design instance.

Specifiactions:

1. Channel: 2 Channels
2. Bandwidth: 20MHz
3. Input Impedance: 1MΩ 25pF
4. Coupling: DC
5. Max. Sample rate: 48MSa/s
6. Vertical resolution: 8Bit
7. DC accuracy: ±3%
8. Vertical adjustable: Yes
9. Input protection: Diode clamping
10. X-Y: Yes
11. Trigger Mode: Auto, Normal and Single
12. Trigger Slope: +/-
13. Trigger level adjustable: Yes
14. Trigger Type: Yes
15. Trigger Source: CH1, CH2
16. Pre/Post trigger: 0-100%
17. Sampling selection: Yes
18. Waveform Display: port/line, waveform average, persistence, intensity
19. Network: Open/Close
20. Vertical mode: CH1, CH2, Dual,
21. Cursor measurement:  Yes
22. Math: FFT, addition, subtraction, multiplication, division.
23. Cursor: Frequency, Voltage
24. Accessories: S/W CD, probes, manual, USB cord

Package Includes:

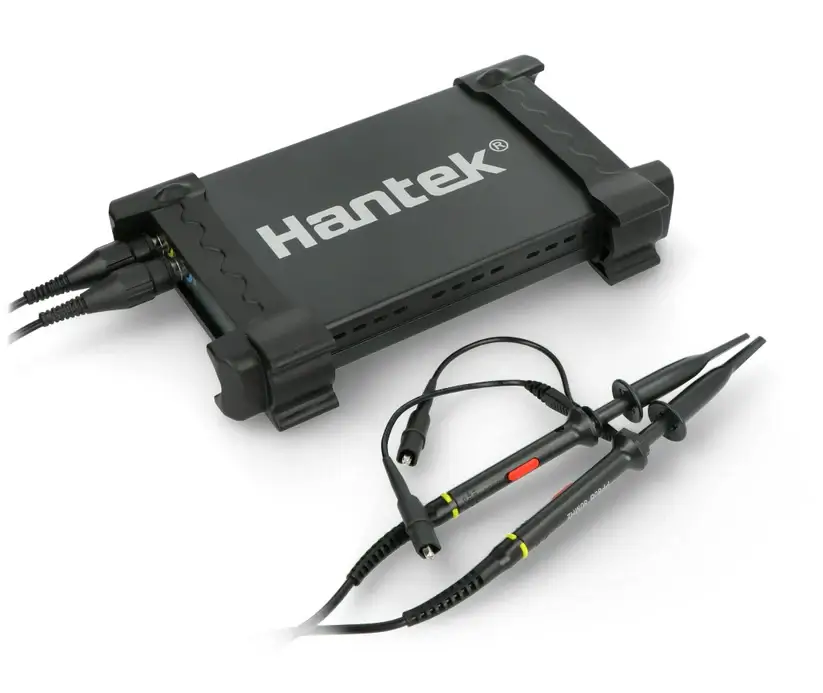

• 1 x Hantek PC Based USB Digital Storage Oscilloscope HT6022BE (20MHz)
• 2 x Oscilloscope Probe
• 1 x USB Cable
• 1 x CD (Manual etc.)
