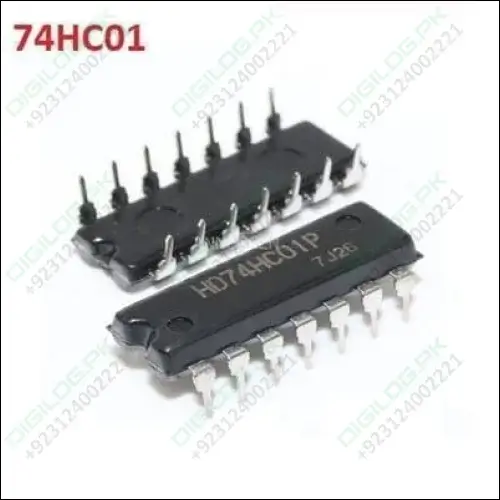

Hd74hc01 Nand Gate Ic

Features And Specifications Of HD74HC01 Quad 2-input NAND Gate Ic:

• Model: HD74HC01
• High Speed Operation: tpd = 9 ns typ (CL = 50 pF)
• High Output Current: Fanout of 10 LSTTL Loads
• Wide Operating Voltage: VCC = 2 to 6 V
• Low Input Current: 1 μA max
• Low Quiescent Supply Current: ICC (static) = 1 μA max (Ta = 25°C)

74HC01 Datasheet

Package Include:

• 1 x  HD74HC01 Nand Gate IC
